Gasket kit 20873253

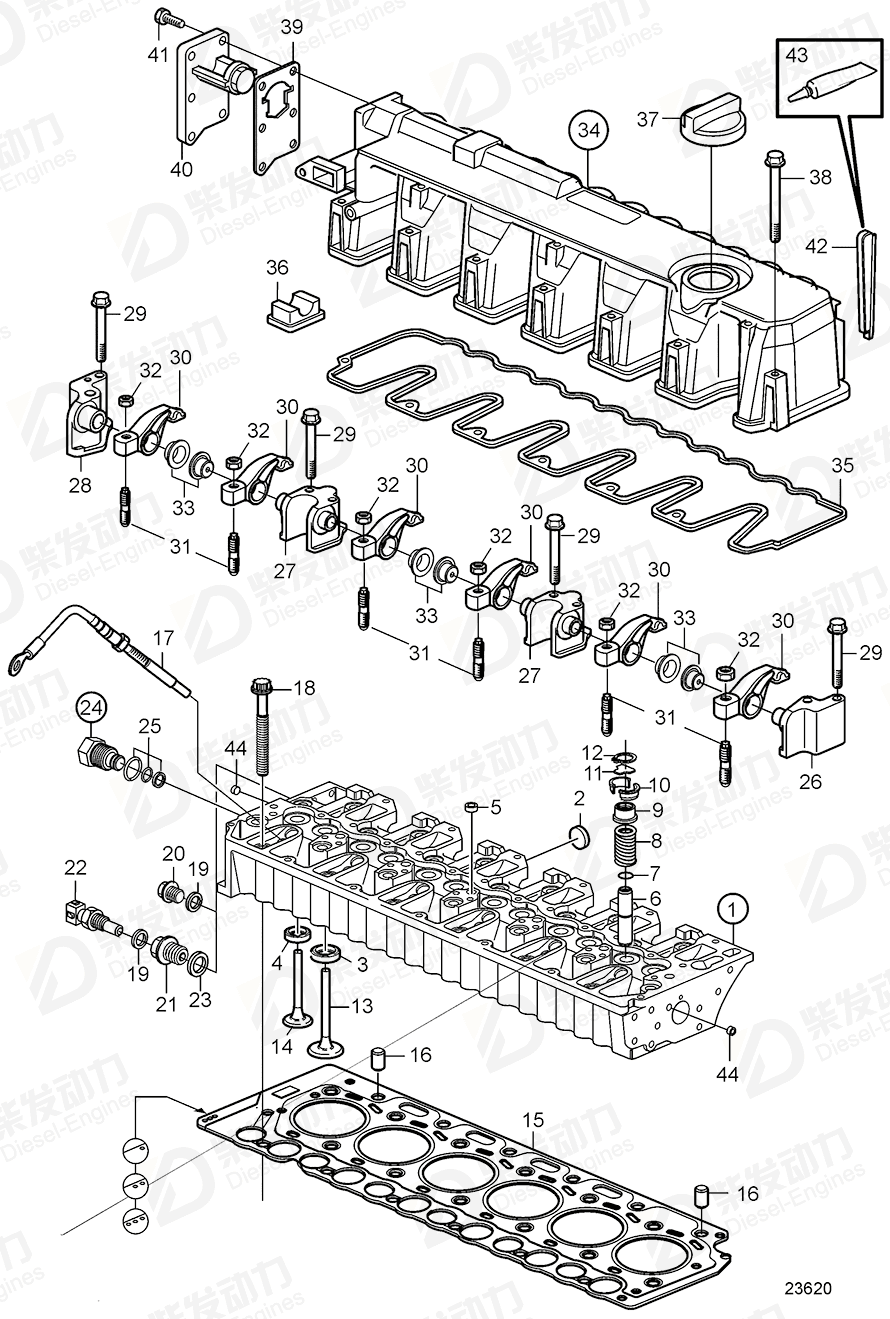

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803975 | 1 | |
| 2 | Cap plug | 20799722 | 5 | 32mm |
| 3 | Valve seat, intake | 20459962 | 6 | Std=49,09mm, Std |
| 3 | Valve seat, intake | 20580079 | 6 | O.S=0,20mm |
| 3 | Valve seat, intake | 20580080 | 6 | O.S=0,40mm |
| 4 | Valve seat, exhaust | 20580082 | 6 | O.S=0,20mm |
| 4 | Valve seat, exhaust | 20580083 | 6 | O.S=0,40mm |
| 4 | Valve seat, exhaust | 20845144 | 6 | Std=43,60mm, Std |
| 5 | Cap plug | 20412733 | 5 | |
| 6 | Valve guide | 20405897 | 12 | Std=15,00mm, Std |
| 6 | Valve guide | 20580074 | 12 | O.S=0,25mm |
| 6 | Valve guide | 20580078 | 12 | O.S=0,50mm |
| 7 | O-ring | 976013 | 12 | |
| 8 | Compression spring | 11700347 | 12 | |
| 9 | Retainer | 20847155 | 12 | |
| 10 | Collet | 11700345 | 24 | |
| 11 | Thrust washer | 20840807 | 12 | |
| 12 | Snap ring | 20792103 | 12 | |
| 13 | Inlet valve, intake | 20758481 | 6 | |
| 14 | Exhaust valve, exhaust | 20755883 | 6 | |
| 15 | Cylinder head gasket | 20798075 | 1 | TH=1,55mm, Two dots |
| 15 | Cylinder head gasket | 20798110 | 1 | TH=1,65mm, Three dots |
| 15 | Cylinder head gasket | 20943385 | 1 | TH=1,45mm, One dot |
| 16 | Spring pin | 20405521 | 2 | |
| 17 | Glow plug | 20783049 | 6 | |
| 18 | Six point screw | 11700334 | 26 | |
| 19 | Gasket | 969011 | 2 | |
| 20 | Plug | 20405716 | 1 | M14 |
| 21 | Adapter | 20450683 | 1 | EDC IV |
| 22 | Sensor, coolant temperature | 20513340 | 1 | |
| 23 | Gasket | 947628 | 1 | |
| 24 | Sealing kit | 20805523 | 1 | |
| 25 | Gasket kit | 20873253 | 1 | |
| 26 | Rocker arm shaft | 20805512 | 1 | |
| 27 | Rocker arm shaft | 20805516 | 5 | |
| 28 | Rocker arm shaft | 20805520 | 1 | |
| 29 | Flange screw | 984741 | 14 | L=70mm |
| 30 | Rocker arm | 20792876 | 12 | |
| 31 | Adjusting screw | 20913851 | 12 | |
| 32 | Hexagon nut | 11700373 | 12 | |
| 33 | Washer | 20794115 | 12 | |
| 34 | Valve cover, standard | 21036771 | 1 | |
| 34 | Valve cover, flat | 21095024 | 1 | |
| 35 | Gasket, valve cover | 20792871 | 1 | |
| 36 | Cap | 20412600 | 1 | |
| 37 | Filler cap | 20412589 | 1 | |
| 38 | Flange screw | 20412601 | 13 | |
| 39 | Gasket | 20840801 | 1 | |
| 40 | Oil separator | 20840827 | 1 | Replaced by 20933359 |
| 41 | Hexagon screw | 20792158 | 6 | |
| 42 | Seal | 20847667 | 1 | |
| 44 | Plug | 20792165 | 2 |
| Item | Part Name | Part No. |
| 25 | Gasket kit 20873253 | 20873253 |
| Details | |
| Engine model | TAD650VE TAD650VE, TAD660VE TAD660VE TAD750GE, TAD751GE TAD750VE TAD750VE, TAD760VE TAD760VE |
| Application | Contacts and Sensors Cylinder Head Repair Kits |
