Gasket kit 3828981

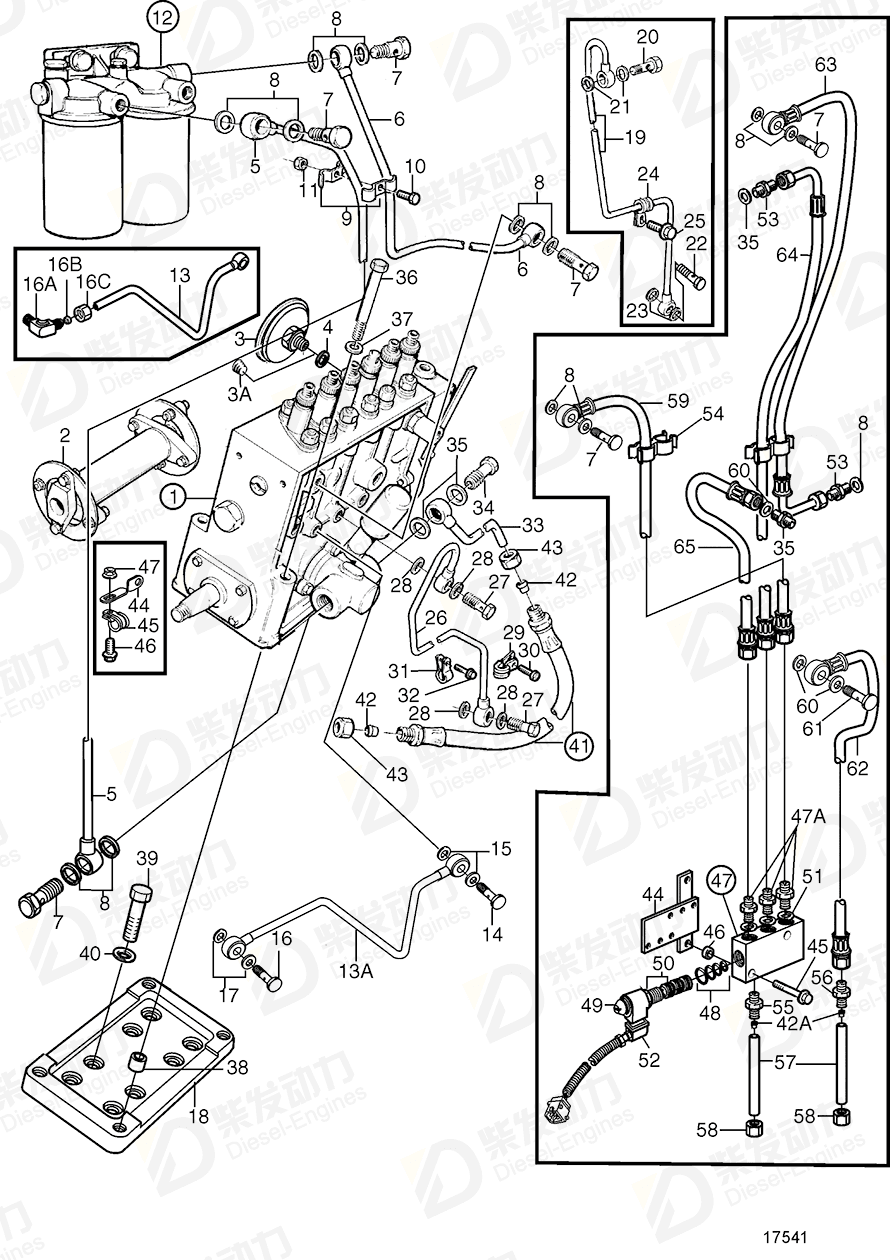

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 866382 | 1 | Repl by 3826154 |
| 1 | Injection pump | 3803739 | 1 | TWD710V |
| 1 | Injection pump | 3826154 | 1 | TWD710V |
| 3 | Pressure equalizer | 477173 | 1 | (466398) |
| 4 | Gasket | 969011 | 1 | |
| 5 | Fuel pipe | 471484 | 1 | |
| 6 | Fuel pipe | 471603 | 1 | |
| 7 | Hollow screw | 25167 | 4 | |
| 8 | Gasket | 969011 | 8 | |
| 9 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 10 | Cross recessed screw | 956095 | 2 | |
| 11 | Hexagon nut | 955781 | 2 | |
| 13 | Oil pressure pipe | 471608 | 1 | Early type |
| 13 | Oil pressure pipe | 477986 | 1 | SN2071064647- |
| 14 | Hollow screw | 48634 | 1 | |
| 15 | Gasket | 11994 | 2 | |
| 15 | Gasket | 947281 | 2 | |
| 16 | Hollow screw | 48634 | 1 | |
| 16 | Hollow screw | 969299 | 1 | |
| 17 | Gasket | 11994 | 2 | |
| 17 | Gasket | 947281 | 2 | |
| 18 | Shelf | 477773 | 1 | |
| 19 | Oil return pipe | 865274 | 1 | SN2071074713- |
| 20 | Hollow screw | 48634 | 1 | |
| 21 | Gasket | 907132 | 2 | |
| 22 | Hollow screw | 25167 | 1 | |
| 23 | Gasket | 969011 | 2 | |
| 24 | Clamp | 947191 | 1 | |
| 25 | Flange screw | 946471 | 1 | |
| 26 | Oil return pipe | 3826927 | 1 | SN-2071074712 |
| 27 | Hollow screw | 25167 | 2 | |
| 28 | Gasket | 969011 | 4 | |
| 29 | Clamp | 942542 | 1 | |
| 30 | Flange screw | 946471 | 1 | |
| 31 | Clamp | 18387 | 1 | |
| 32 | Flange screw | 944926 | 1 | |
| 33 | Fuel pipe | 849229 | 1 | |
| 34 | Hollow screw | 25167 | 1 | |
| 35 | Gasket | 969011 | 2 | |
| 36 | Flange screw | 965189 | 4 | |
| 37 | Washer | 190509 | 4 | |
| 38 | Guide sleeve | 417588 | 3 | |
| 39 | Flange screw | 965185 | 4 | |
| 3A | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 40 | Spring washer | 941908 | 4 | |
| 41 | Fuel hose | 865737 | 2 | |
| 42 | Ferrule | 956969 | 4 | |
| 43 | Fitting nut | 956983 | 4 | |
| 44 | Bracket | 3826159 | 1 | |
| 45 | Flange screw | 969313 | 2 | |
| 46 | Spacer sleeve | 822779 | 2 | |
| 47 | Fuel valve | 3828983 | 1 | |
| 48 | Gasket kit | 3828981 | 1 | |
| 49 | Magnet | 3825240 | 1 | |
| 50 | Valve | 3828979 | 1 | For 3828983 |
| 51 | Gasket | 969011 | 4 | |
| 52 | Cable kit | 866927 | 1 | |
| 53 | Nipple | 941754 | 2 | |
| 54 | Retainer | 866663 | 3 | |
| 55 | Nipple | 977677 | 1 | |
| 56 | Nipple | 957055 | 1 | |
| 57 | Fuel pipe | 3825770 | 2 | |
| 58 | Fitting nut | 956983 | 2 | |
| 59 | Hose | 3826284 | 1 | |
| 60 | Gasket | 969011 | 2 | |
| 61 | Hollow screw | 25167 | 1 | |
| 62 | Hose | 3826284 | 1 | |
| 63 | Hose | 3825721 | 1 | |
| 64 | Hose | 3825722 | 1 | |
| 65 | Fuel hose | 3825604 | 1 | When control motor for speed control is mounted. |
| 65 | Hose | 3825848 | 1 | |
| 13A | Oil pressure pipe | 477908 | 1 | SN-2071064646 |
| 16A | Elbow nipple | 479958 | 1 | Early type |
| 16B | Sleeve | 954364 | 1 | |
| 16C | Fitting nut | 954356 | 1 | |
| 42A | Ferrule | 956969 | 2 | |
| 47A | Nipple | 941754 | 4 |
| Item | Part Name | Part No. |
| 48 | Gasket kit 3828981 | 3828981 |
| Details | |
| Engine model | TAD1030GE, TAD1031GE, TAD1032GE TAD1030V TAD1230V TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TAD730P TAD730V TAD740GE TAD741GE TD100G-87 TD1030VE TD121G-87 TD630ME TD630VE TD640VE TD71A TD730ME TD730VE TID71A TWD1210V TWD1211V TWD1230VE TWD1630P TWD1630V TWD630ME TWD630VE TWD710P TWD710V TWD731ME TWD731VE TWD740GE |
| Application | Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: A Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: B Fuel Injection Pump, Fuel Filter and Shut-off Valve. Standard Fuel System with Fuel Shut-offValve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: C Injection Pump with Shut-off Valve, Energized to Run. Option. Injection Pump with Shut-off Valve, Energized to Run. Option.: A Injection Pump with Shut-off Valve, Energized to Run. Option.: B Injection Pump, Fuel Filter and Shut-off Valve Injection Pump, Fuel Filter and Shut-off Valve: A Injection Pump, Fuel Filter and Shut-off Valve: B Injection Pump, Fuel Filter and Shut-off Valve: C |
| Specification | |
| Descriptions | (3825238) For 3828982, 3828983 For 3828983 |
Tags: Gasket kit, Volvo Penta, 3828981
