Gear 21249506

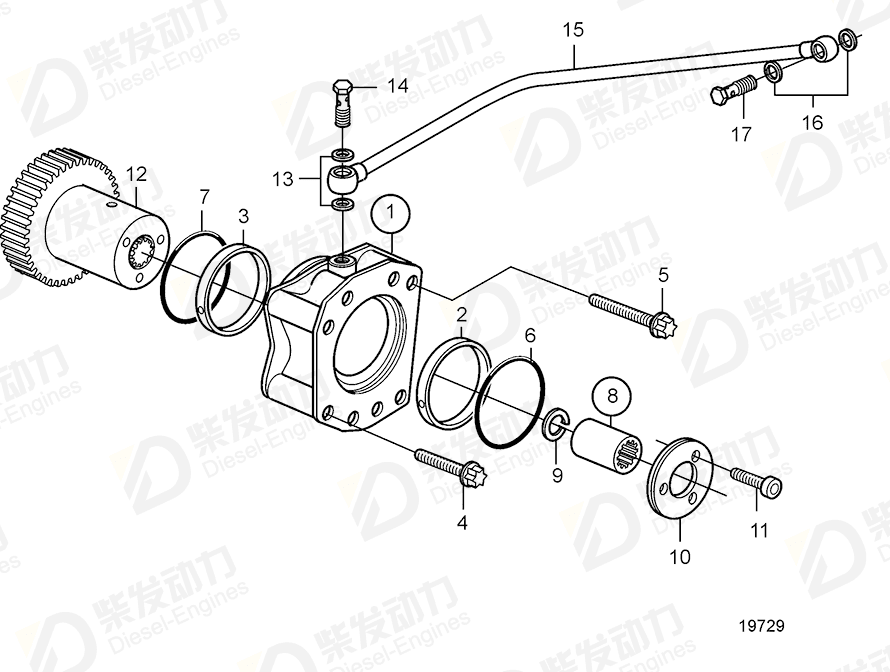

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bearing flange | 20450805 | 1 | |
| 2 | Bushing | 20450809 | 1 | |
| 3 | Bushing | 20450807 | 1 | |
| 4 | Six point screw | 20450820 | 2 | SN-1099412 |
| 4 | Hex. socket screw | 21077470 | 2 | SN1099413- |
| 5 | Six point screw | 20450821 | 2 | |
| 6 | O-ring | 20450819 | 1 | |
| 7 | O-ring | 20450818 | 1 | |
| 8 | Sleeve | 20459123 | 1 | |
| 9 | Snap ring | 20450815 | 1 | |
| 10 | Thrust washer | 20450811 | 1 | |
| 11 | Hex. socket screw | 20450822 | 3 | |
| 12 | Gear | 20900806 | 1 | Replaced by 21249506 |
| 12 | Gear | 21249506 | 1 | |
| 13 | Gasket | 947281 | 2 | |
| 14 | Hollow screw | 25167 | 1 | |
| 15 | Oil line | 20450980 | 1 | |
| 16 | Gasket | 969011 | 2 | |
| 17 | Hollow screw | 980973 | 1 |
| Item | Part Name | Part No. |
| 12 | Gear 21249506 | 21249506 |
| Details | |
| Engine model | TAD520VE, TAD720VE, TAD721VE, TAD722VE TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE |
| Application | Connecting Kit for Hydraulic Pump, ''PTO A''. Serrated Shaft Connecting Kit for Hydraulic Pump, PTO A. 2-hole, SAE B, Shaft 13T-16/32DP |
