Gear 3161258

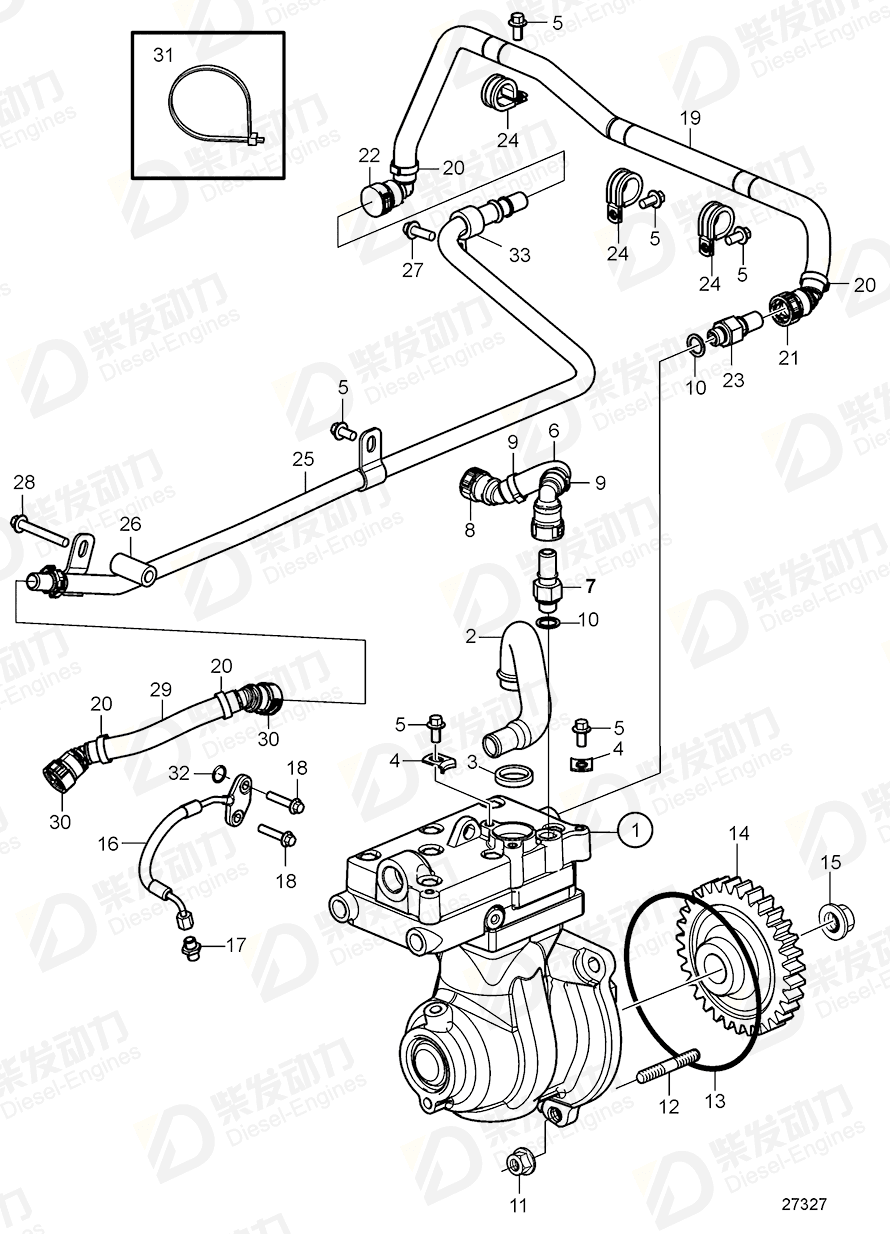

| No. | Part Name | Part Number | Qty | Description |
| 1 | Air compressor | 21353433 | 1 | |
| 2 | Inlet pipe | 20390470 | 1 | |
| 3 | Rubber moulding | 471708 | 1 | |
| 4 | Lock brace | 1546531 | 2 | |
| 5 | Flange screw | 984733 | 6 | |
| 6 | Hose | 22131788 | 1 | |
| 7 | Connector | 21052612 | 1 | |
| 8 | Connector | 21380391 | 1 | |
| 9 | Hose clamp | 978140 | 2 | |
| 10 | Gasket | 11996 | 2 | |
| 11 | Stud | 953098 | 3 | |
| 12 | Flange nut | 990942 | 3 | |
| 13 | O-ring | 992065 | 1 | |
| 14 | Gear | 3161258 | 1 | |
| 16 | Hose | 21414908 | 1 | |
| 17 | Nipple | 977639 | 1 | |
| 18 | Flange screw | 984738 | 2 | |
| 19 | Hose | 22131791 | 1 | |
| 20 | Hose clamp | 978140 | 1 | |
| 21 | Connector | 21380391 | 1 | |
| 22 | Connector | 21052612 | 1 | |
| 23 | Connector | 21766361 | 1 | |
| 24 | Clamp | 945081 | 3 | |
| 25 | Pipe | 22131793 | 1 | |
| 26 | Spacer sleeve | 849352 | 1 | |
| 27 | Flange screw | 984735 | 1 | |
| 28 | Flange screw | 984740 | 1 | |
| 29 | Rubber hose | 946652 | 1 | L=400mm |
| 30 | Connector | 21380391 | 1 | |
| 31 | Cable tie | 948211 | 4 | |
| 32 | O-ring | 968007 | 1 | |
| 33 | Attaching clamp | 984133 | 1 |
| Item | Part Name | Part No. |
| 14 | Gear 3161258 | 3161258 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE |
| Application | Air Compressor Vabco 318. 1 Cylinder Air Compressor Wabco 352 Air Compressor Wabco 704 Air Comressor Vabco 636CC. Two Cylinder Timing Gear |
