Gear 478232

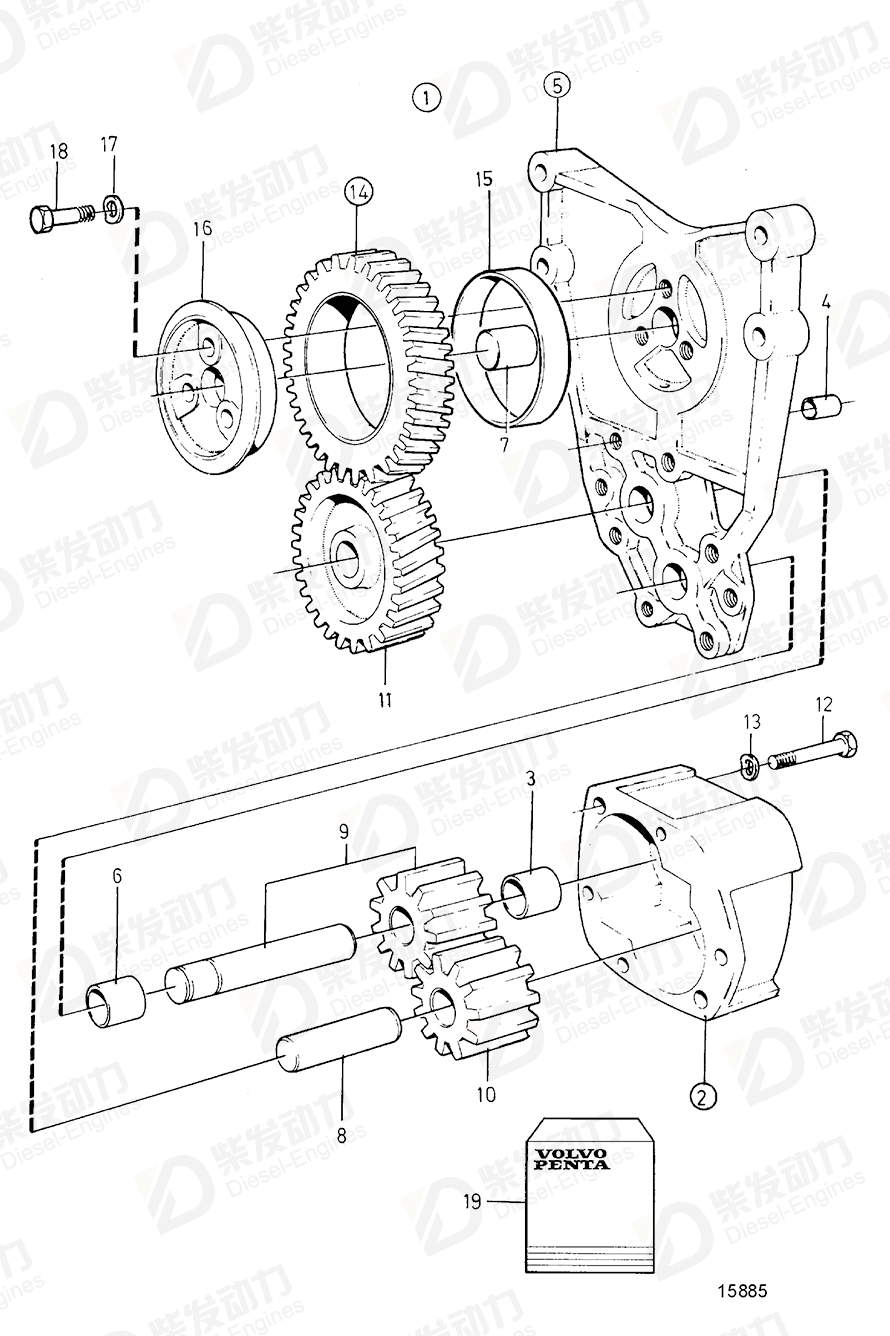

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 478649 | 1 | |
| 3 | Bushing | 470347 | 2 | |
| 4 | Guide sleeve | 401146 | 2 | |
| 6 | Bushing | 470347 | 2 | |
| 7 | Pin | 191171 | 1 | |
| 11 | Gear | 478232 | 1 | |
| 12 | Hexagon screw | 955531 | 2 | Late type |
| 13 | Spring washer | 941907 | 2 | |
| 14 | Gear | 422047 | 1 | |
| 15 | Bushing | 422314 | 1 | |
| 16 | Bearing sleeve | 422313 | 1 | |
| 17 | Spring washer | 941907 | 3 | |
| 18 | Hexagon screw | 940186 | 3 | |
| 19 | Overhaul kit | 276156 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 11 | Gear 478232 | 478232 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE |
| Application | Oil Pump, Components Oil Pump, Components: 470343 Oil Pump, Components: 478285 Oil Pump: 470343 Oil Pump: 478285 Oil Pump: 478649 |
| Specification | |
| Descriptions | (470356) Late type LATER PROD |
