Glow plug 20460458

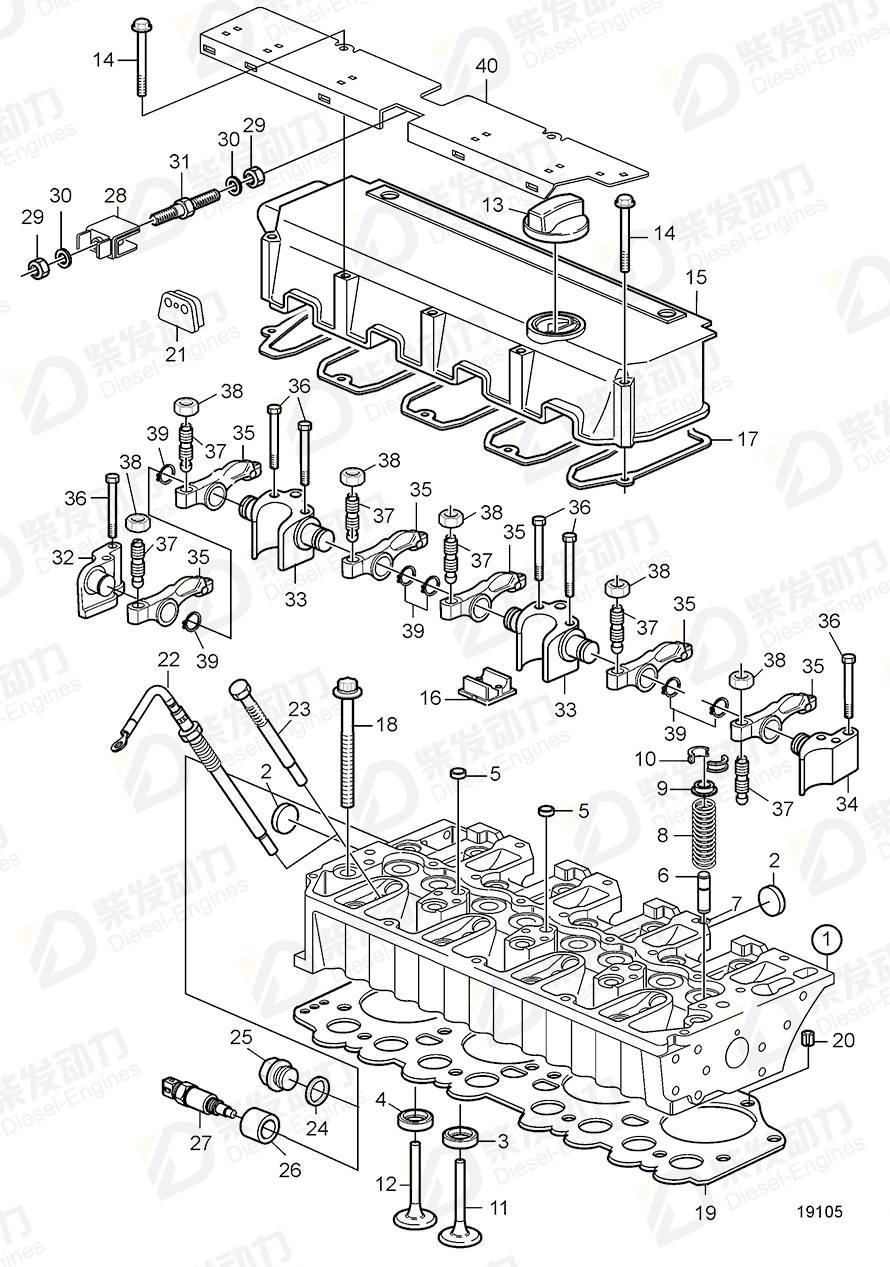

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803988 | 1 | (20405500) |
| 2 | Cap plug | 20412745 | 3 | |
| 3 | Valve seat, intake | 20459962 | 4 | Std=49,09mm, Std |
| 3 | Valve seat, intake | 20580079 | 4 | O.S=0,20mm |
| 3 | Valve seat, intake | 20580080 | 4 | O.S=0,40mm |
| 4 | Valve seat, exhaust | 20459963 | 4 | Std=43,60mm, Std |
| 4 | Valve seat, exhaust | 20580082 | 4 | O.S=0,20mm |
| 4 | Valve seat, exhaust | 20580083 | 4 | O.S=0,40mm |
| 5 | Cap plug | 20412733 | 3 | |
| 6 | Valve guide | 20405897 | 8 | Std=15,00mm, Std |
| 6 | Valve guide | 20580074 | 8 | O.S=0,25mm |
| 6 | Valve guide | 20580078 | 8 | O.S=0,50mm |
| 7 | O-ring | 976013 | 8 | |
| 8 | Compression spring | 11700347 | 8 | |
| 9 | Valve spring washer | 11700346 | 8 | |
| 10 | Collet | 11700345 | 16 | |
| 11 | Inlet valve, intake | 20714469 | 4 | (20572597) |
| 12 | Exhaust valve, exhaust | 20565912 | 4 | |
| 13 | Filler cap | 20412589 | 1 | |
| 14 | Flange screw | 20412601 | 9 | |
| 15 | Valve cover | 20412587 | 1 | Only with gasket 20412588, SN-0010555383 |
| 15 | Valve cover | 20725337 | 1 | Only with gasket 20725315, SN0010555384- |
| 16 | Cap | 20412590 | 1 | |
| 17 | Plane gasket | 20412588 | 1 | Gasket only for valve cover: 20412587, SN-0010555383 |
| 17 | Gasket | 20725315 | 1 | Metal gasket only for valve cover: 20725337, SN0010555384- |
| 18 | Six point screw | 11700334 | 18 | |
| 19 | Cylinder head gasket | 11700335 | 1 | TH=1,4mm, One dot |
| 19 | Cylinder head gasket | 11700336 | 1 | TH=1,5mm, Two dots |
| 19 | Cylinder head gasket | 11700337 | 1 | TH=1,6mm, Three dots |
| 19 | Cylinder head gasket | 23172474 | 1 | TH=1,5mm, Two dots |
| 19 | Cylinder head gasket | 23178165 | 1 | TH=1,4mm, One dot |
| 19 | Cylinder head gasket | 23193385 | 1 | TH=1,6mm, Three dots |
| 20 | Spring pin | 20405521 | 2 | |
| 21 | Seal | 20405886 | 6 | |
| 22 | Glow plug | 20460458 | 1 | |
| 23 | Plug | 20405895 | 4 | |
| 24 | Gasket | 947628 | 1 | |
| 25 | Plug | 20464451 | 1 | |
| 26 | Insulating sleeve | 20405788 | 1 | |
| 27 | Sensor, coolant water | 20924086 | 1 | (20543720) |
| 28 | Clamp | 20450956 | 1 | EDC IV |
| 29 | Hexagon nut | 20460344 | 2 | EDC IV |
| 30 | Washer | 20460345 | 2 | EDC IV |
| 31 | Shoulder screw | 20580716 | 1 | EDC IV |
| 32 | Bracket | 11700369 | 1 | |
| 33 | Bracket | 11700368 | 3 | |
| 34 | Bracket | 11700367 | 1 | |
| 35 | Rocker arm | 11700370 | 8 | |
| 36 | Hexagon screw | 955305 | 10 | |
| 37 | Adjusting screw | 20405524 | 8 | |
| 38 | Hexagon nut | 11700373 | 8 | |
| 39 | Snap ring | 945495 | 8 | |
| 40 | Valve cover | 20459964 | 1 | EDC IV |
| Item | Part Name | Part No. |
| 22 | Glow plug 20460458 | 20460458 |
| Details | |
| Engine model | TAD520VE TAD720VE, TAD721VE |
| Application | Cylinder Head |
| Specification | |
| Descriptions | 24V |
