Governor 244696

Governor 244696

0 reviews Write a review
  • Brandsvolvo penta
  • Part No.: 244696
  • Availability: 联系我们
No. Part Name Part Number Qty Description
1 Injection pump 1545101 1 Engine with RQV governor., Fuel injection pump with 11mm pump units
2 Governor 244696 1
4 Feed pump 244391 1 Repl by 1699140
4 Feed pump 1699140 1
5 Stud 130673 3
6 Spring washer 941906 3
7 Hexagon nut 955781 3
8 Gasket 863370 1
9 Roller bearing 240023 1
10 Ring 240032 1
11 Shim 240033 1 TH=1.2mm
11 Shim 240034 1 TH=1.5mm
11 Shim 240035 1 TH=1.8mm
11 Shim 240036 1 TH=2.0mm
13 Washer 244699 1 (240015)
14 Bushing 240014 2
15 Spring pin 244008 1 (131015)
16 Control rod 241746 1
17 Sealing plug 243263 1
18 Gasket 240017 1 Spec.867473 alt
19 Plug 837735 6
20 Gasket 18836 6
21 Camshaft 845454 1
22 Key 35168 1
23 Bearing 244406 1
24 Screw 240427 2
25 Spring washer 941906 2
26 Roller bearing 240023 1
27 Camshaft seal 864299 1
28 O-ring 243299 1
29 Shim 240024 1 TH=0.15mm
29 Shim 240025 1 TH=0.12mm
29 Shim 240026 1 TH=0.14mm
29 Shim 240027 1 TH=0.16mm
29 Shim 240028 1 TH=0.18mm
29 Shim 240029 1 TH=0.30mm
29 Shim 240030 1 TH=0.50mm
30 Bearing cover 240021 1
31 Cross recessed screw 956094 4
32 Spring washer 941906 4
33 Hexagon nut 955806 1
34 Spring washer 941913 1
35 Cover 240947 1
36 Gasket 1698192 1 (240948)
37 Cross recessed screw 956205 12
38 Push rod 244404 6
39 Plate 238379 6
40 Bearing 846577 6
41 Bushing 240780 6
42 Bearing bolt 240779 6
43 Spring disc 244685 6 (6211952)
44 Compression spring 244731 6 (847277)
45 Spring disc 239984 6
46 Control sleeve 240782 6
47 Lock ring 239990 6
48 Washer 241677 6
49 Cover 239991 6
50 Gasket 240002 6
51 Shim 244381 1 TH=1,50mm
51 Shim 244382 1 TH=1,60mm
51 Shim 244383 1 TH=1,70mm
51 Shim 244384 1 TH=1,80mm
51 Shim 244385 1 TH=1,90mm
51 Shim 244386 1 TH=2,00mm
51 Shim 244633 1 TH=1,2mm
51 Shim 244634 1 TH=1,3mm
51 Shim 244635 1 TH=1,4mm
51 Adjusting washer 844990 1 TH=0.40mm
51 Adjusting washer 844991 1 TH=0.50mm
51 Adjusting washer 844992 1 TH=0.70mm
51 Adjusting washer 844993 1 TH=0.80mm
51 Adjusting washer 844994 1 TH=1.00mm
51 Adjusting washer 844995 1 TH=1.10mm
51 Adjusting washer 844996 1 TH=1,30mm
51 Washer 845238 1 TH=0.9mm
51 Adjusting plate 847428 1 TH=0.45mm
51 Adjusting plate 847429 1 TH=0.6mm
51 Adjusting plate 847430 1 TH=0,85mm
51 Adjusting plate 847431 1 TH=1,35mm
51 Adjusting plate 847432 1 TH=1,45mm
51 Adjusting plate 847433 1 TH=2,1mm
52 Bushing 244733 6
53 O-ring 240422 12
54 Pump element 244730 6
55 Sealing washer 239993 6
56 Delivery valve 244742 6
57 Sealing washer 239993 6
58 O-ring 240001 6
59 Peg 240971 6
60 Washer 240972 1 TH=0.2mm
60 Washer 240973 1 TH=0.5mm
61 Retainer 244636 6
62 Stud 244380 12
63 Washer 243743 12
64 Spring washer 941908 12
65 Hexagon nut 955783 12
66 Cover 240011 1
67 Cross recessed screw 956209 2
68 Lock washer 18891 2
68 Repair kit 845240 1 See group 10A
Item Part Name Part No.
2 Governor 244696 244696

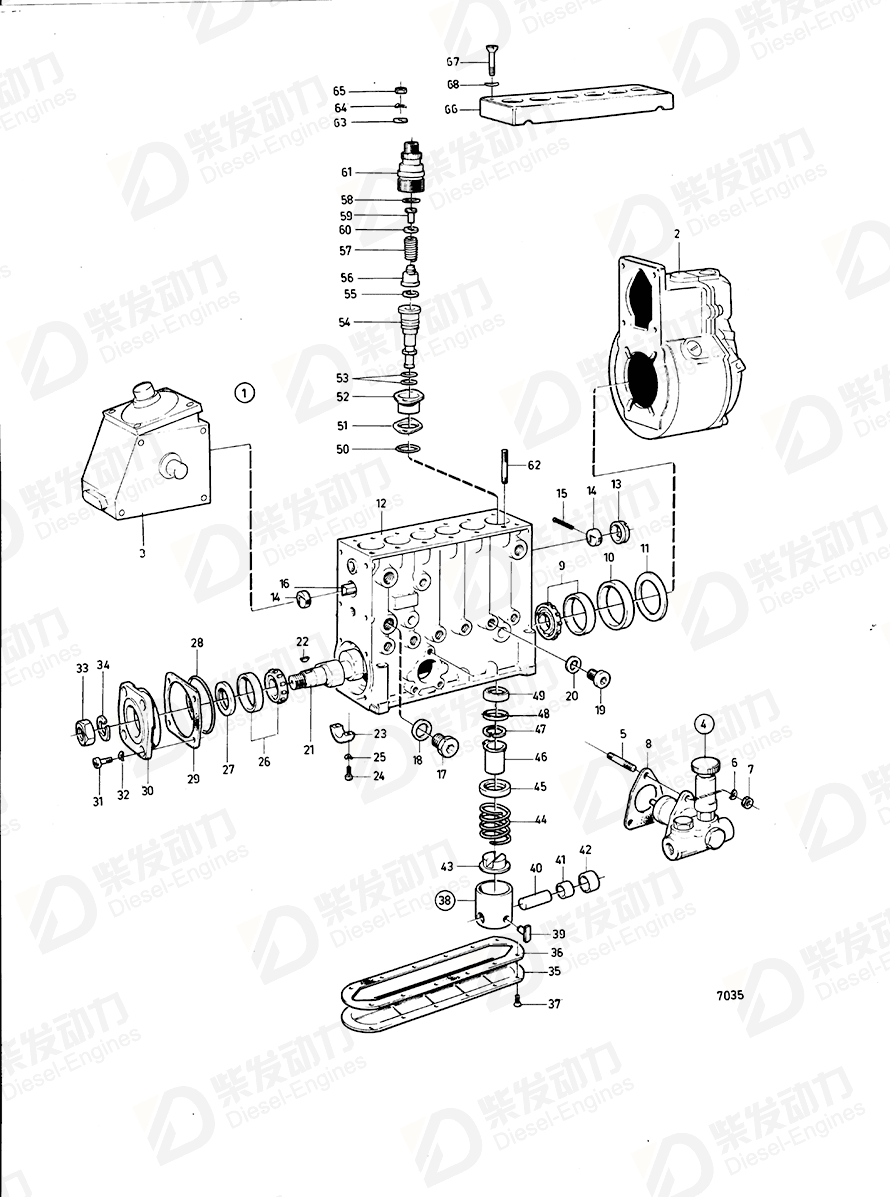

volvo penta Governor 244696 Drawing
Details
Application Centrifugal Governor
Fuel Injection Pump
