Volvo 845233 Governor 845233 Fuel System spare parts-Generator engine parts Mall

Governor 845233

0 reviews Write a review

Brandsvolvo penta
Part No.: 845233
Availability: 联系我们

Qty

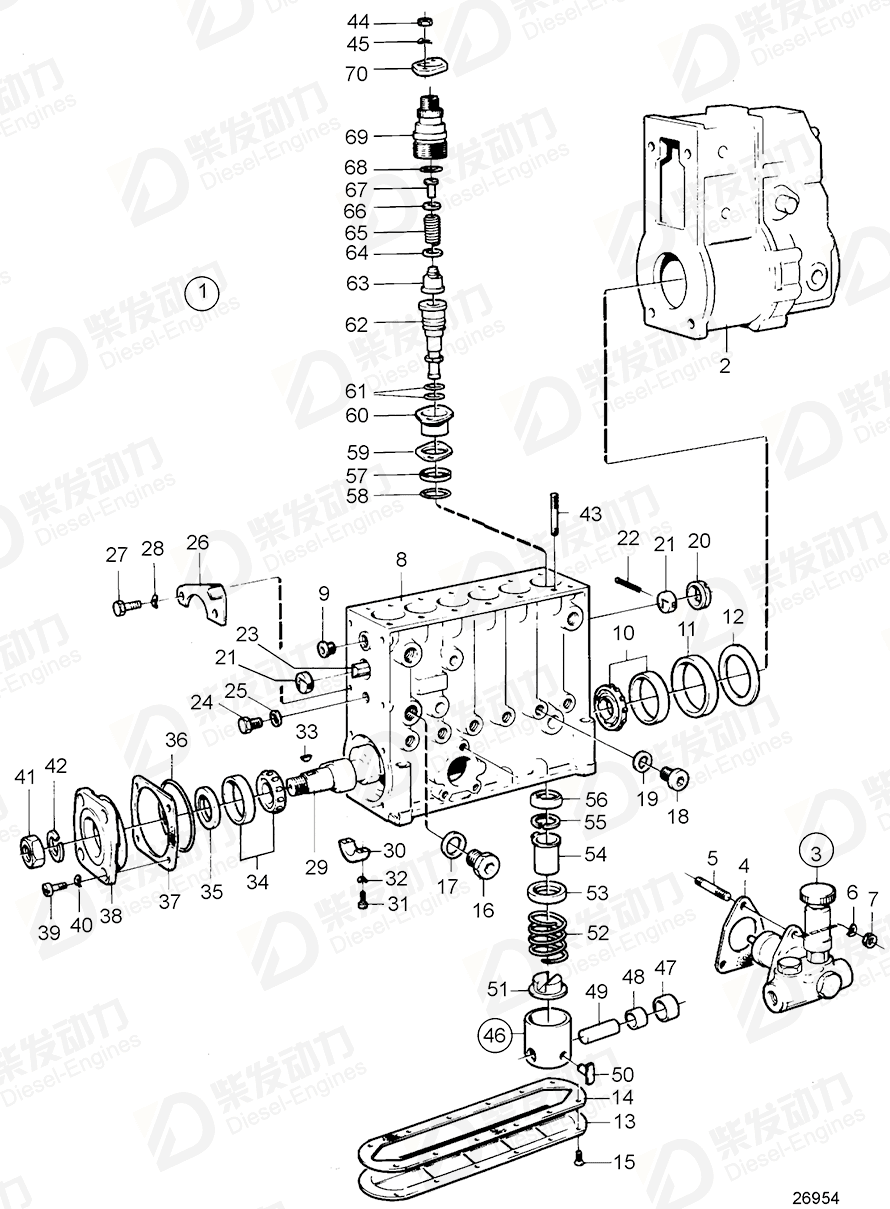

No.	Part Name	Part Number	Qty	Description
1	Injection pump	846806	1	Repl by 849194
2	Governor	845233	1
3	Feed pump	244391	1	Repl by 1699140
4	Gasket	863370	1
5	Stud	130673	3
6	Spring washer	941906	3
7	Hexagon nut	940197	3
9	Plug	844988	1
10	Roller bearing	240023	1
11	Ring	240032	1
12	Shim	240033	1	TH=1.2mm
12	Shim	240034	1	TH=1.5mm
12	Shim	240035	1	TH=1.8mm
12	Shim	240036	1	TH=2.0mm
13	Cover	240947	1
14	Gasket	1698192	1	(240948)
15	Screw	244732	12
16	Sealing plug	243263	1
17	Gasket	240017	1	Spec.867473 alt
18	Plug	180707	6
19	Gasket	18836	6
20	Washer	244699	1	(240015)
21	Bushing	240014	2
22	Spring pin	244008	1	(131015)
23	Control rod	240907	1
24	Lock screw	6642955	1
25	Gasket	947620	1	(233321)
26	Indicator	241647	1
27	Cross recessed screw	956092	2	(241793)
28	Spring washer	941906	2
29	Camshaft	845454	1
30	Bearing	244406	1
31	Screw	240427	2
32	Spring washer	941906	2
33	Key	35168	1
34	Roller bearing	240023	1
35	Camshaft seal	864299	1
36	O-ring	243299	1
37	Shim	240024	1	TH=0.15mm
37	Shim	240025	1	TH=0.12mm
37	Shim	240026	1	TH=0.14mm
37	Shim	240027	1	TH=0.16mm
37	Shim	240028	1	TH=0.18mm
37	Shim	240029	1	TH=0.30mm
37	Shim	240030	1	TH=0.50mm
38	Bearing cover	240021	1
39	Screw	845239	4
40	Spring washer	941906	4
41	Hexagon nut	955806	1
42	Spring washer	941913	1
43	Stud	244380	12
44	Hexagon nut	943927	12
45	Spring washer	941908	12
46	Push rod	244404	6
47	Bearing bolt	240779	6
48	Bushing	240780	6
49	Bearing	846577	6
50	Plate	238379	6
51	Spring disc	244685	6	(6211952)
52	Compression spring	244731	6	(847277)
53	Spring disc	239984	6
54	Control sleeve	240782	6
55	Lock ring	239990	6
56	Cover	239991	6
57	O-ring	846937	6
58	Washer	241677	6
59	Shim	244381	1	TH=1,50mm
59	Shim	244382	1	TH=1,60mm
59	Shim	244383	1	TH=1,70mm
59	Shim	244384	1	TH=1,80mm
59	Shim	244385	1	TH=1,90mm
59	Shim	244386	1	TH=2,00mm
59	Shim	244633	1	TH=1,2mm
59	Shim	244634	1	TH=1,3mm
59	Shim	244635	1	TH=1,4mm
59	Adjusting washer	844990	1	TH=0.40mm
59	Adjusting washer	844991	1	TH=0.50mm
59	Adjusting washer	844992	1	TH=0.70mm
59	Adjusting washer	844993	1	TH=0.80mm
59	Adjusting washer	844994	1	TH=1.00mm
59	Adjusting washer	844995	1	TH=1.10mm
59	Adjusting washer	844996	1	TH=1,30mm
59	Washer	845238	1	TH=0.9mm
59	Adjusting plate	847428	1	TH=0.45mm
59	Adjusting plate	847429	1	TH=0.6mm
59	Adjusting plate	847430	1	TH=0,85mm
59	Adjusting plate	847431	1	TH=1,35mm
59	Adjusting plate	847432	1	TH=1,45mm
59	Adjusting plate	847433	1	TH=2,1mm
60	Bushing	244733	6
61	O-ring	240422	12
62	Pump element	244730	6
63	Delivery valve	244742	6
64	Sealing washer	239993	6
65	Compression spring	240969	6
66	Washer	240972	1	TH=0.2mm
66	Washer	240973	1	TH=0.5mm
67	Peg	240971	6
68	O-ring	240001	6
69	Retainer	244636	6
70	Washer	243743	12
70	Repair kit	845240	1	See group 10A

Item	Part Name	Part No.
2	Governor 845233	845233

Details
Application	Centrifugal Governor: 845233 Fuel Injection Pump Fuel Injection Pump: 846360 Governor
