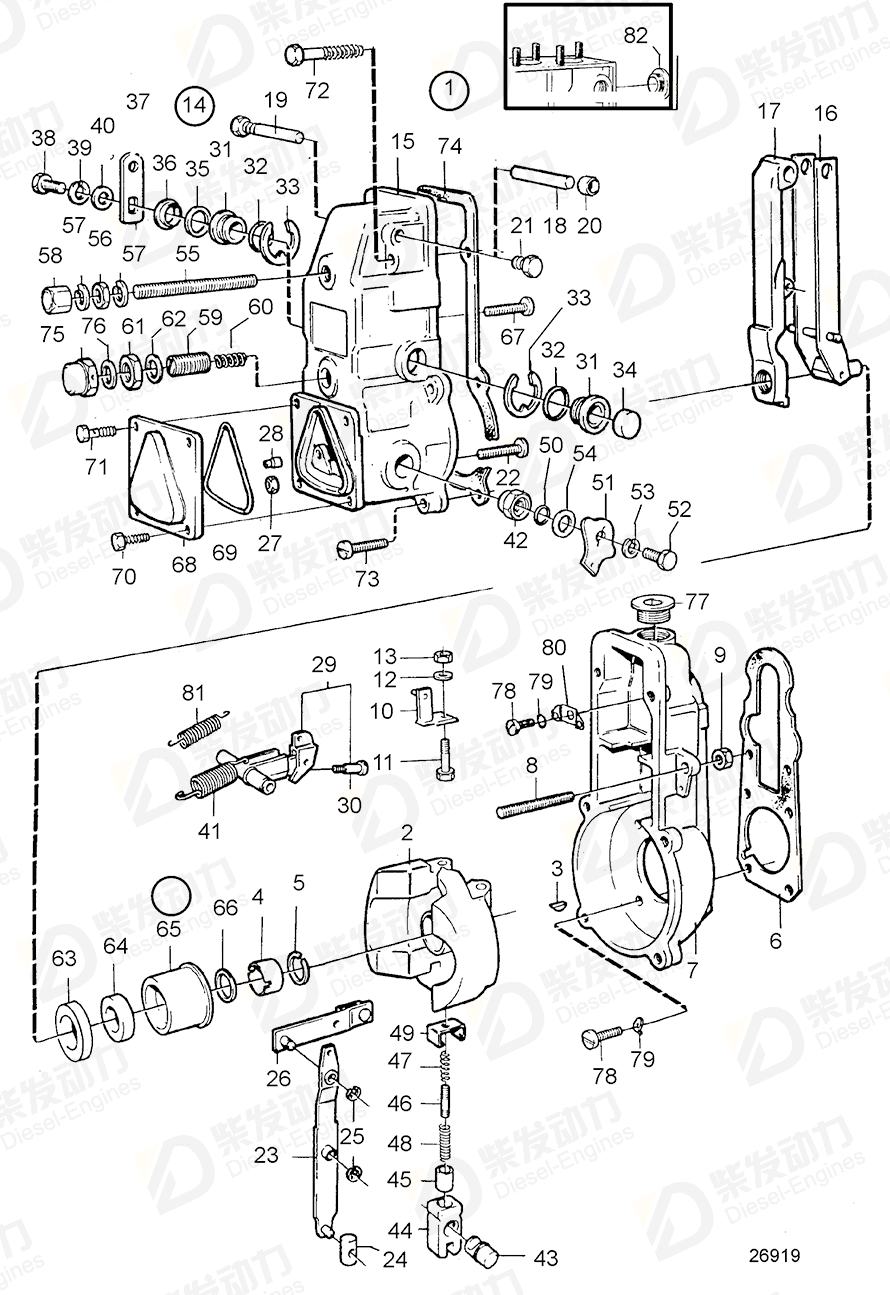

Governor 865134
| No. | Part Name | Part Number | Qty | Description |
| 1 | Governor | 865134 | 1 | |
| 2 | Regulator weight | 848220 | 1 | |
| 4 | Round nut | 238994 | 1 | |
| 5 | Spring washer | 238995 | 1 | |
| 6 | Gasket | 1698168 | 1 | (240037) |
| 7 | Regulator housing | 870907 | 1 | |
| 9 | Hexagon nut | 940197 | 1 | |
| 10 | Companion flange | 243449 | 1 | |
| 11 | Cross recessed screw | 956075 | 1 | |
| 12 | Washer | 241705 | 1 | |
| 13 | Hexagon nut | 955780 | 1 | |
| 15 | Regulator cover | 862802 | 1 | |
| 16 | Arm | 848760 | 1 | |
| 17 | Tensioning arm | 848757 | 1 | |
| 18 | Shaft | 239017 | 1 | |
| 19 | Screw | 862806 | 1 | |
| 20 | Plug | 240374 | 2 | |
| 21 | Lock screw | 862807 | 1 | |
| 22 | Screw | 239021 | 1 | |
| 23 | Lever | 240375 | 1 | |
| 24 | Cube | 240376 | 1 | |
| 25 | E-circlip | 951667 | 2 | |
| 26 | Lever | 845008 | 1 | |
| 27 | Hexagon nut | 940197 | 1 | |
| 28 | Nut | 848756 | 1 | |
| 29 | Swivel arm | 870887 | 1 | |
| 30 | Screw | 239031 | 1 | |
| 31 | Bearing bushing | 240382 | 2 | |
| 32 | O-ring | 864475 | 2 | |
| 33 | E-circlip | 942796 | 2 | |
| 34 | Cover | 239037 | 1 | |
| 35 | O-ring | 864476 | 1 | |
| 36 | Washer | 238132 | 2 | |
| 36 | Adjusting washer | 240046 | 2 | TH=0.3mm |
| 36 | Washer | 847520 | 2 | TH=0,50mm |
| 37 | Intermediate lever | 849475 | 1 | |
| 38 | Hexagon screw | 955271 | 1 | |
| 40 | Washer | 955892 | 1 | |
| 41 | Spring | 239040 | 1 | |
| 42 | Bearing bushing | 239048 | 1 | |
| 43 | Shaft | 239049 | 1 | |
| 44 | Link arm end | 6213511 | 1 | |
| 45 | Sleeve | 239051 | 1 | |
| 46 | Spring | 240387 | 1 | |
| 47 | Spring | 240386 | 1 | |
| 48 | Spring | 240388 | 1 | |
| 49 | Brace | 870916 | 1 | |
| 50 | O-ring | 862814 | 1 | |
| 51 | Lever | 870912 | 1 | See group 2D |
| 52 | Hexagon screw | 955271 | 1 | |
| 57 | Gasket | 190990 | 2 | |
| 58 | Cap nut | 862272 | 1 | |
| 62 | Gasket | 18839 | 1 | |
| 63 | Washer | 848762 | 1 | |
| 64 | Needle bearing | 848761 | 1 | |
| 65 | Bushing | 848763 | 1 | |
| 66 | Clamping ring | 239164 | 1 | |
| 67 | Adjusting screw | 848755 | 1 | |
| 68 | Cap | 848741 | 1 | |
| 69 | Sealing ring | 848740 | 1 | |
| 70 | Screw | 845229 | 2 | |
| 74 | Gasket | 11992560 | 1 | |
| 75 | Nut | 870637 | 1 | |
| 76 | Gasket | 18839 | 1 | |
| 78 | Cross recessed screw | 956095 | 4 | |
| 78 | Six point socket scr | 969423 | 4 | (956097) |
| 80 | Bracket | 870908 | 1 | |
| 81 | Spring | 845009 | 1 | (239041) |
| Item | Part Name | Part No. |
| 1 | Governor 865134 | 865134 |
| Details | |
| Application | Centrifugal Governor, Components Fuel Injection Pump, Components |
