Grommet 8142642

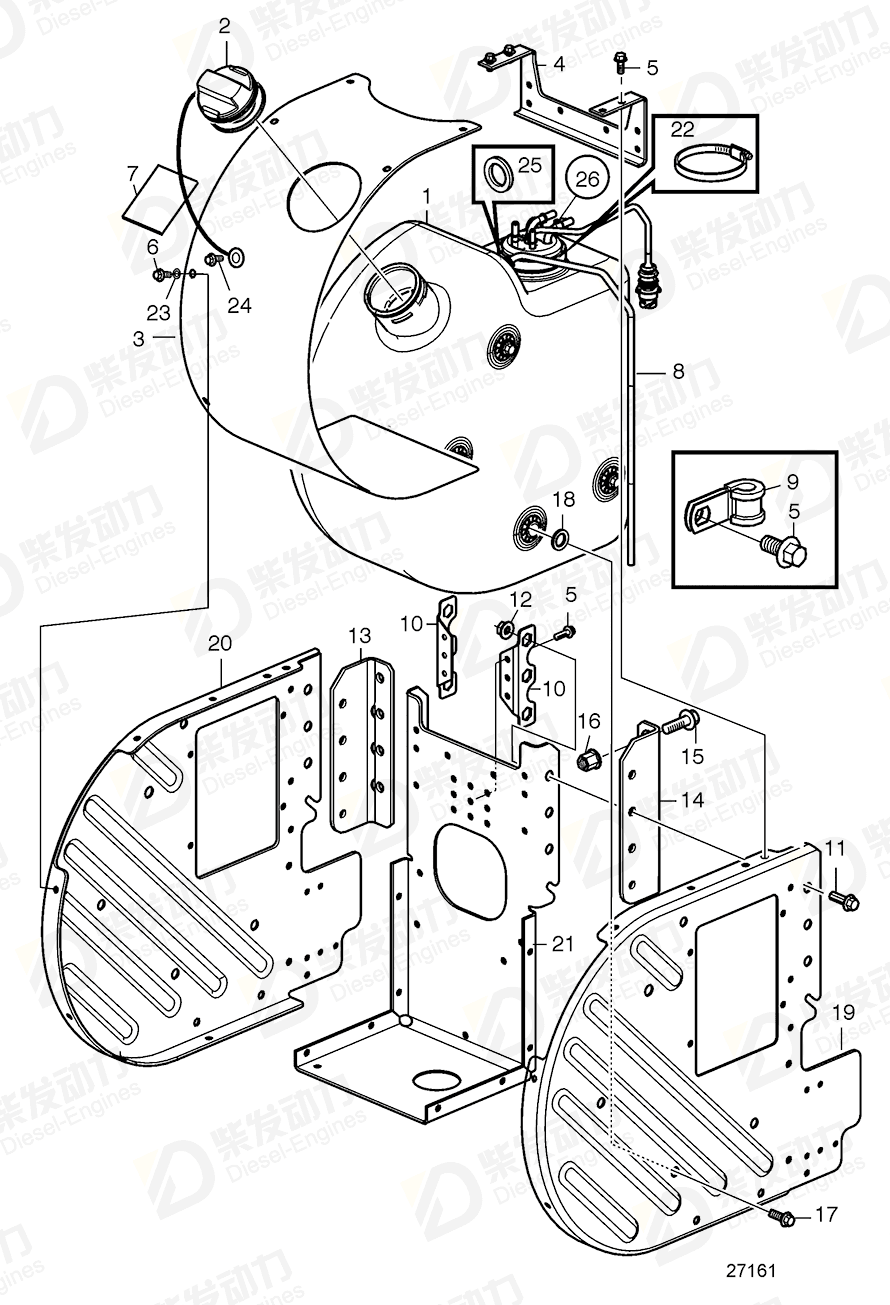

| No. | Part Name | Part Number | Qty | Description |
| 1 | Tank | 21839976 | 1 | |
| 2 | Filler cap | 17248401 | 1 | Option, Lockable, Replaced by 23029052 |
| 2 | Cap | 17248402 | 1 | |
| 2 | Filler cap | 23029052 | 1 | Option, Lockable |
| 3 | Cover | 21314967 | 1 | |
| 4 | Bracket | 21377897 | 1 | |
| 5 | Flange screw | 984733 | 20 | |
| 6 | Flange screw | 982285 | 9 | |
| 7 | Decal | 21597621 | 1 | |
| 8 | Tube, heater | 21403488 | 1 | |
| 9 | Clamp | 945611 | 1 | |
| 10 | Bracket | 21378628 | 2 | |
| 11 | Flange screw | 990809 | 6 | |
| 12 | Flange nut | 990942 | 6 | |
| 13 | Bracket | 21179843 | 1 | |
| 14 | Bracket | 21179847 | 1 | |
| 15 | Flange screw | 984855 | 6 | |
| 16 | Flange nut | 990942 | 6 | |
| 17 | Flange screw | 995530 | 8 | |
| 18 | Washer | 960143 | 8 | |
| 19 | Bracket | 22114817 | 1 | |
| 20 | Bracket | 22114815 | 1 | |
| 21 | Bracket | 21374285 | 1 | |
| 22 | Hose clamp | 20757803 | 1 | |
| 23 | Washer | 993419 | 11 | |
| 24 | Flange screw | 991606 | 1 | |
| 25 | Grommet | 8142642 | 1 | |
| 26 | Sensor | 21648844 | 1 | 45L |
| Item | Part Name | Part No. |
| 25 | Grommet 8142642 | 8142642 |
| Details | |
| Engine model | TAD1170VE, TAD1171VE, TAD1172VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD1670VE, TAD1671VE, TAD1672VE TAD570VE, TAD571VE, TAD572VE TAD870VE, TAD871VE, TAD872VE, TAD873VE |
| Application | SCR. AdBlue/DEF Tank 45L SCR. AdBlue/DEF Tank 70L |
