Guide rail 862622

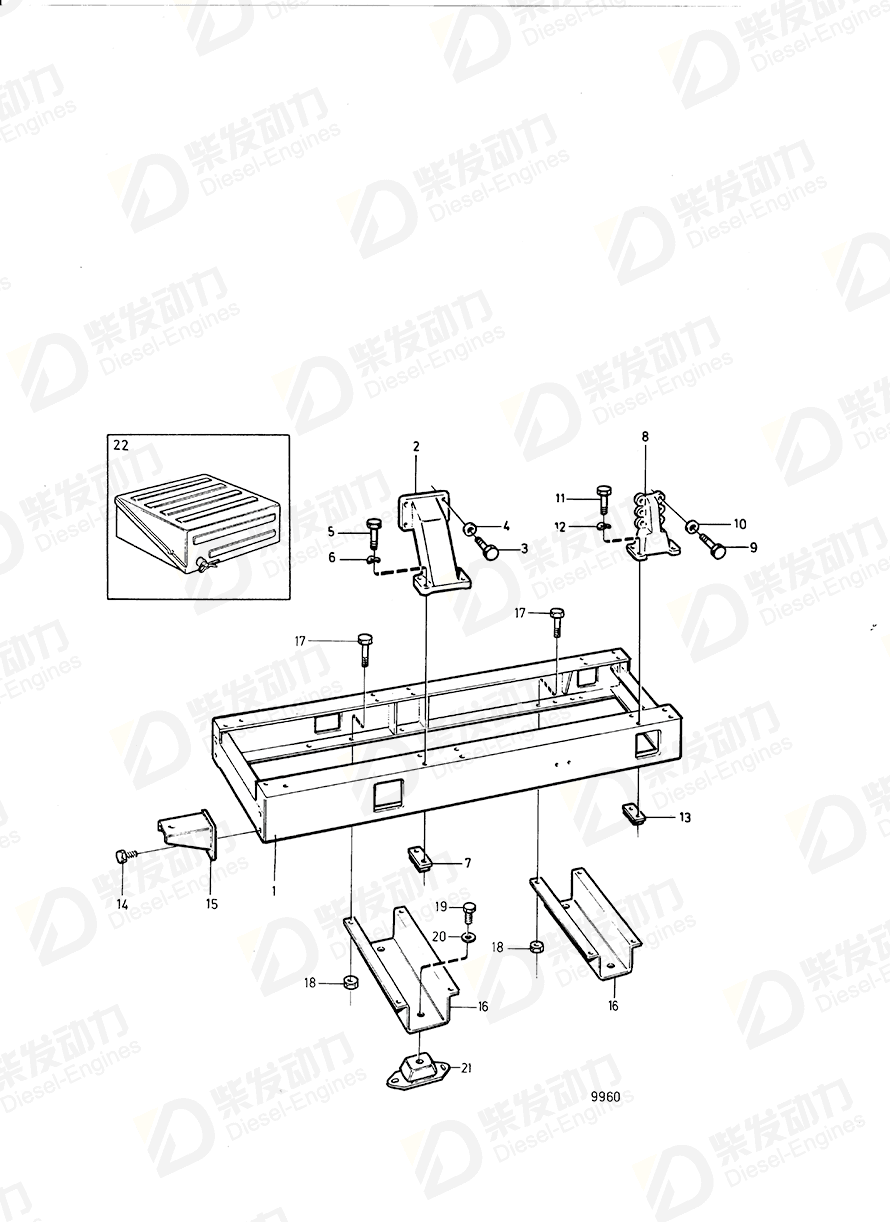

| No. | Part Name | Part Number | Qty | Description |
| 1 | Frame | 862144 | 1 | |
| 2 | Bracket | 823534 | 2 | Replaced by 1pc 831656, 1pc 462623 |
| 5 | Hexagon screw | 970976 | 8 | |
| 6 | Spring washer | 940280 | 8 | |
| 7 | Plate | 845883 | 4 | D100B PP, TD100A PP |
| 8 | Engine bracket | 843070 | 2 | AQ115B, AQ130A MO-15301/XXXX. AQ130B MO-1400/XXXX. |
| 9 | Hexagon screw | 955561 | 12 | |
| 10 | Spring washer | 940280 | 12 | |
| 11 | Hexagon screw | 970972 | 8 | |
| 12 | Spring washer | 940280 | 8 | |
| 13 | Nut plate | 845905 | 4 | D100B PP, TD100A PP |
| 14 | Flange screw | 946817 | 4 | |
| 15 | Bracket | 848825 | 2 | |
| 16 | Guide rail | 862622 | 2 | |
| 17 | Flange screw | 973083 | 8 | |
| 18 | Flange nut | 971095 | 8 | Alt |
| 19 | Hexagon screw | 961305 | 4 | |
| 20 | Washer | 906837 | 4 | |
| 21 | Rubber cushion | 862073 | 4 | 65SH, early prod |
| Item | Part Name | Part No. |
| 16 | Guide rail 862622 | 862622 |
| Details | |
| Engine model | TD120HP-86, TD121GP-87, TD121GPB-87 TD121GP-87, TWD1210P, TWD1211P TID121KP, TID121KP-87, TID121KPB-87, TID121LP, TID121LP-87, TID121LPB-87 |
| Application | Engine Mounting, Earlier Production Engine Suspension |
