Guide sleeve 423161

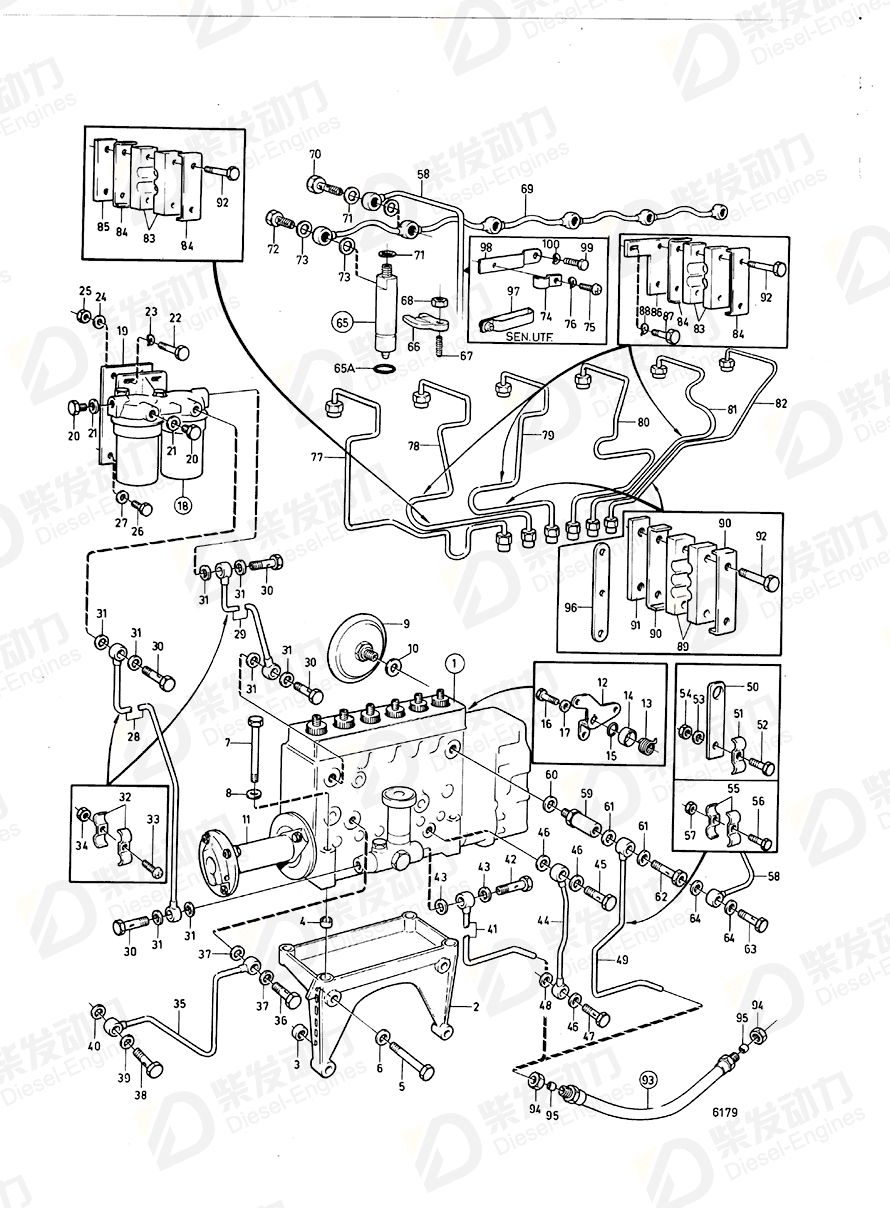

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fuel pump | 845369 | 1 | |
| 1 | Injection pump | 845928 | 1 | MO56202/XXXXX- |
| 1 | Injection pump | 846682 | 1 | Power output 250 KWA / 1500, Ambac |
| 1 | Injection pump | 846929 | 1 | |
| 2 | Bracket | 468558 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Guide sleeve | 417588 | 1 | |
| 5 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 9 | Pressure equalizer | 466398 | 1 | |
| 10 | Gasket | 18671 | 1 | |
| 12 | Lever | 821134 | 1 | |
| 13 | Spring | 239056 | 1 | Replaced by 837364. |
| 14 | Cover | 239059 | 1 | Replaced by 837364 |
| 15 | Washer | 120265 | 1 | |
| 16 | Hexagon screw | 955637 | 1 | |
| 17 | Spring washer | 941906 | 1 | |
| 18 | Filter housing | 241672 | 1 | Replaced by 1 PC 843512,1 ST 191026., Classed engine,not included in fuel feed pump. |
| 18 | Filter housing | 471172 | 1 | Repl by 1676832 |
| 19 | Bracket | 476438 | 1 | |
| 20 | Plug | 960630 | 3 | Replaced by 1 PC 843512,1 ST 191026. |
| 21 | Gasket | 18671 | 3 | |
| 22 | Hexagon screw | 940114 | 2 | |
| 23 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 24 | Spring washer | 942336 | 2 | |
| 25 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 26 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 26 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 27 | Spring washer | 942336 | 2 | |
| 28 | Fuel pipe | 468480 | 1 | |
| 29 | Tube | 468481 | 1 | |
| 30 | Hollow screw | 25167 | 4 | |
| 31 | Gasket | 18671 | 8 | |
| 32 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 33 | Cross recessed screw | 950047 | 1 | |
| 34 | Hexagon nut | 955825 | 1 | Late type |
| 35 | Feed line | 423393 | 1 | |
| 36 | Hollow screw | 48634 | 1 | |
| 37 | Gasket | 957173 | 2 | |
| 38 | Hollow screw | 942081 | 1 | |
| 39 | Gasket | 11994 | 1 | |
| 40 | Gasket | 18666 | 1 | |
| 41 | Fuel pipe | 845938 | 1 | |
| 42 | Hollow screw | 25167 | 1 | |
| 43 | Gasket | 18671 | 2 | |
| 44 | Return pipe | 422246 | 1 | |
| 45 | Hollow screw | 25167 | 1 | |
| 46 | Gasket | 18671 | 3 | |
| 47 | Hollow screw | 954394 | 1 | |
| 48 | Gasket | 11998 | 1 | |
| 49 | Fuel pipe | 845937 | 1 | |
| 50 | Anchorage | 821625 | 1 | |
| 51 | Attaching clamp | 404279 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 52 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 53 | Washer | 955893 | 1 | |
| 54 | Hexagon nut | 955825 | 1 | Late type |
| 55 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 56 | Cross recessed screw | 950047 | 1 | |
| 57 | Hexagon nut | 955825 | 1 | Late type |
| 58 | Leak-off line | 468766 | 1 | |
| 58 | Leak-off line | 470185 | 1 | |
| 59 | Overflow valve | 35096 | 1 | |
| 60 | Gasket | 18671 | 1 | |
| 61 | Gasket | 18671 | 2 | |
| 62 | Hollow screw | 16496 | 1 | |
| 63 | Hollow screw | 74033 | 1 | |
| 64 | Gasket, oil pipe | 946729 | 2 | |
| 65 | Injector | 468748 | 6 | |
| 65 | Injector | 3803245 | 6 | |
| 66 | Yoke | 469797 | 6 | (466399) |
| 67 | Cylinder head | 468749 | 6 | |
| 68 | Hexagon nut | 961992 | 6 | |
| 69 | Leak-off line | 822564 | 1 | MO-XXXXX/1495. |
| 70 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 71 | Gasket | 947620 | 3 | (233321) |
| 72 | Hollow screw | 74033 | 5 | |
| 73 | Gasket, oil pipe | 946729 | 10 | |
| 74 | Clamp | 121563 | 1 | |
| 75 | Cross recessed screw | 950044 | 1 | |
| 76 | Spring washer | 941906 | 1 | |
| 77 | Fuel pipe | 468941 | 1 | EARLY TYPE |
| 77 | Pressure pipe, cyl 1 | 468981 | 1 | SN-2120234293 |
| 78 | Fuel pipe | 468942 | 1 | EARLY TYPE |
| 78 | Pressure pipe, cyl 2 | 468982 | 1 | SN-2120234293 |
| 79 | Fuel pipe | 468943 | 1 | EARLY TYPE |
| 79 | Pressure pipe, cyl 3 | 468983 | 1 | SN-2120234293 |
| 80 | Fuel pipe | 468944 | 1 | EARLY TYPE |
| 80 | Pressure pipe, cyl 4 | 468984 | 1 | SN-2120234293 |
| 81 | Fuel pipe | 468945 | 1 | EARLY TYPE |
| 81 | Pressure pipe, cyl 5 | 468985 | 1 | SN-2120234293 |
| 82 | Fuel pipe | 468946 | 1 | EARLY TYPE |
| 82 | Pressure pipe, cyl 6 | 468986 | 1 | SN-2120234293 |
| 83 | Attaching clamp | 414345 | 20 | |
| 84 | Attaching clamp | 414344 | 20 | |
| 85 | Nut plate | 414736 | 6 | |
| 86 | Bracket | 468005 | 2 | |
| 87 | Hexagon screw | 940100 | 4 | |
| 88 | Spring washer | 941906 | 4 | |
| 89 | Attaching clamp | 414347 | 2 | |
| 90 | Attaching clamp | 414346 | 2 | |
| 91 | Nut plate | 414735 | 1 | |
| 92 | Hexagon screw | 955247 | 22 | |
| 93 | Fuel hose | 845450 | 2 | (880618) |
| 94 | Fitting nut | 956983 | 4 | |
| 95 | Ferrule | 956969 | 4 | |
| 96 | Bracket | 468854 | 2 | |
| 97 | Clamp, 2-pipes | 470181 | 6 | |
| 97 | Clamp, 4-pipes | 470183 | 2 | |
| 98 | Bracket | 465584 | 1 | |
| 99 | Hexagon screw | 940100 | 1 | |
| 100 | Spring washer | 941906 | 1 | |
| 65A | Sealing ring | 948965 | 6 |
| Item | Part Name | Part No. |
| 3 | Guide sleeve 423161 | 423161 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D120A D70B D70CHC D70CRC DH10A TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD100GP TD100GP-85 TD100HP-87 TD1010G, TWD1010G TD1030ME TD1030VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HP-86 TD1210G TD121CHC TD121CRC TD121G TD121G-87 TD121GG TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TD70B TD70CHC TD70CRC TD70G TD70G-83 THD102KD, THD102KB TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KP-87 TID100KPB-87 TID120FG TID121FG TID121K TID121K-87 TID121KG TID121KG-87 TID121KGP TID121KP TID121KP-87 TID121KPB-87 TID121L-87 TID121LG TID121LG-87 TID121LGP-87 TID121LP TID121LP-87 TID121LPB-87 TID70G TWD1030ME TWD1031VE TWD1210G TWD1210P TWD1210V TWD1211G TWD1211P TWD1211V TWD1230ME TWD1230VE TWD1231VE |
| Application | Classed Fuel System, Spec.867108, 867153: A Classed Fuel System, Spec.867108, 867153: B Classed Fuel System, Spec.9902, 9879 Earlier Prod: A Classed Fuel System, Spec.9902, 9879 Earlier Prod: TD100AA Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: A Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: B Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: C Classed Fuel System: A Classed Fuel System: B Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump and Fuel Filter: A Fuel Injection Pump and Fuel Filter: B Fuel Injection Pump and Fuel Filter: C Fuel Injection Pump and Fuel Inj.Pump Coupling. Spec.867578 Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump, Fuel Filter and Shut-off Valve. Standard Fuel System Fuel System Excl.Spec.S5175/497250 D100A: A Fuel System Excl.Spec.S5175/497250 D100A: B Fuel System Excl.Spec.S5175/497250 D100A: C Fuel System MO-46196/XXXXX: A Fuel System MO-46196/XXXXX: B Fuel System MO46197/XXXXX-: A Fuel System MO46197/XXXXX-: B Fuel System Spec.S5175/497250 Fuel System with Electronic Speed Control Fuel System, Classed Engine, Spec.867053, MO-46196/XXXXX Fuel System, Classed Engine, Spec.867053, MO46197/XXXXX- Fuel System, Classed Engine, Spec.867117 Fuel System, SN1201090022- Fuel System, Standard Model: A Fuel System, Standard Model: B Fuel System: 846359 Fuel System: 862183 Fuel System: 863451 FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D Fuel System: TD100GGP-87 Fuel System: TD100HPB87 FUEL SYSTEM: TID121FP Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: C Injection Pump, Fuel Filter and EDC Control Unit Injection Pump, Fuel Filter and Shut-off Valve |
