Heat shield 22208630

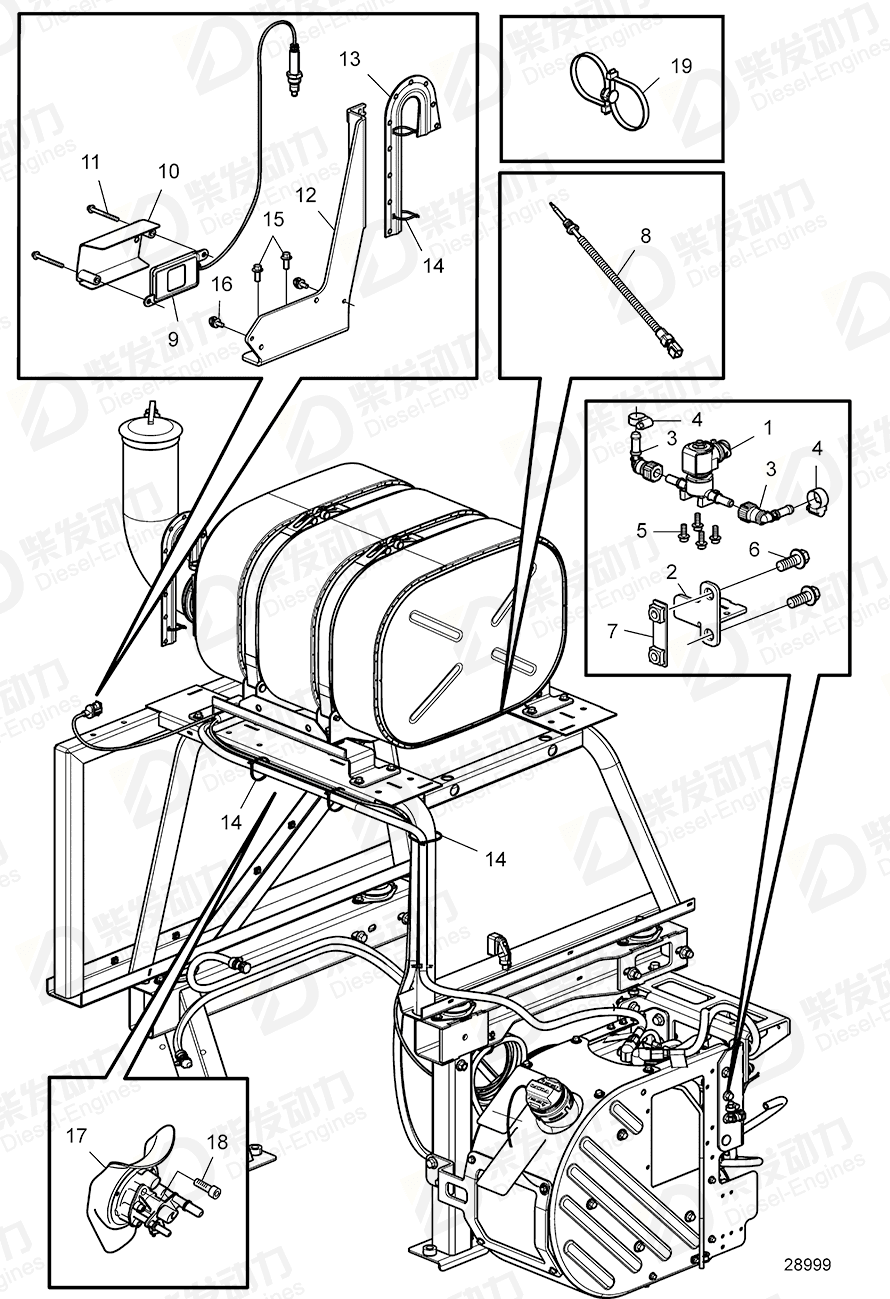

| No. | Part Name | Part Number | Qty | Description |
| 1 | Solenoid valve, tank, heater | 21314741 | 1 | |
| 2 | Bracket | 20767833 | 1 | |
| 3 | Connector | 20805110 | 2 | |
| 4 | Hose clamp | 992082 | 2 | |
| 5 | Flange screw | 984725 | 4 | |
| 6 | Flange screw | 984854 | 2 | |
| 7 | Bracket, nut plate | 22552496 | 1 | |
| 8 | Temperature sensor | 21164790 | 1 | |
| 9 | Sensor | 22827993 | 1 | |
| 10 | Bracket | 22394160 | 1 | |
| 11 | Flange screw, humidity/tempera ture | 984731 | 3 | |
| 12 | Bracket | 22668681 | 1 | |
| 13 | Heat shield | 22208630 | 1 | |
| 14 | Cable tie | 948211 | 10 | |
| 15 | Flange screw | 984734 | 2 | |
| 16 | Cable tie | 980881 | 2 | |
| 17 | Dosage valve | 21574984 | 1 | 9 kg/h |
| 18 | Hex. socket screw | 990413 | 3 | |
| 19 | Retainer | 20885497 | 3 |
| Item | Part Name | Part No. |
| 13 | Heat shield 22208630 | 22208630 |
| Details | |
| Engine model | TAD1170VE, TAD1171VE, TAD1172VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD870VE, TAD871VE, TAD872VE, TAD873VE |
| Application | SCR. Exhaust Pipe, Open Power Unit SCR. Sensors and valves, Open Power Unit SCR.Mounting bracket AdBlue 70L tank,Open Power Uni Turbocharger, High Mounted Turbocharger, Low Mounted |
