Heat shield 3884341

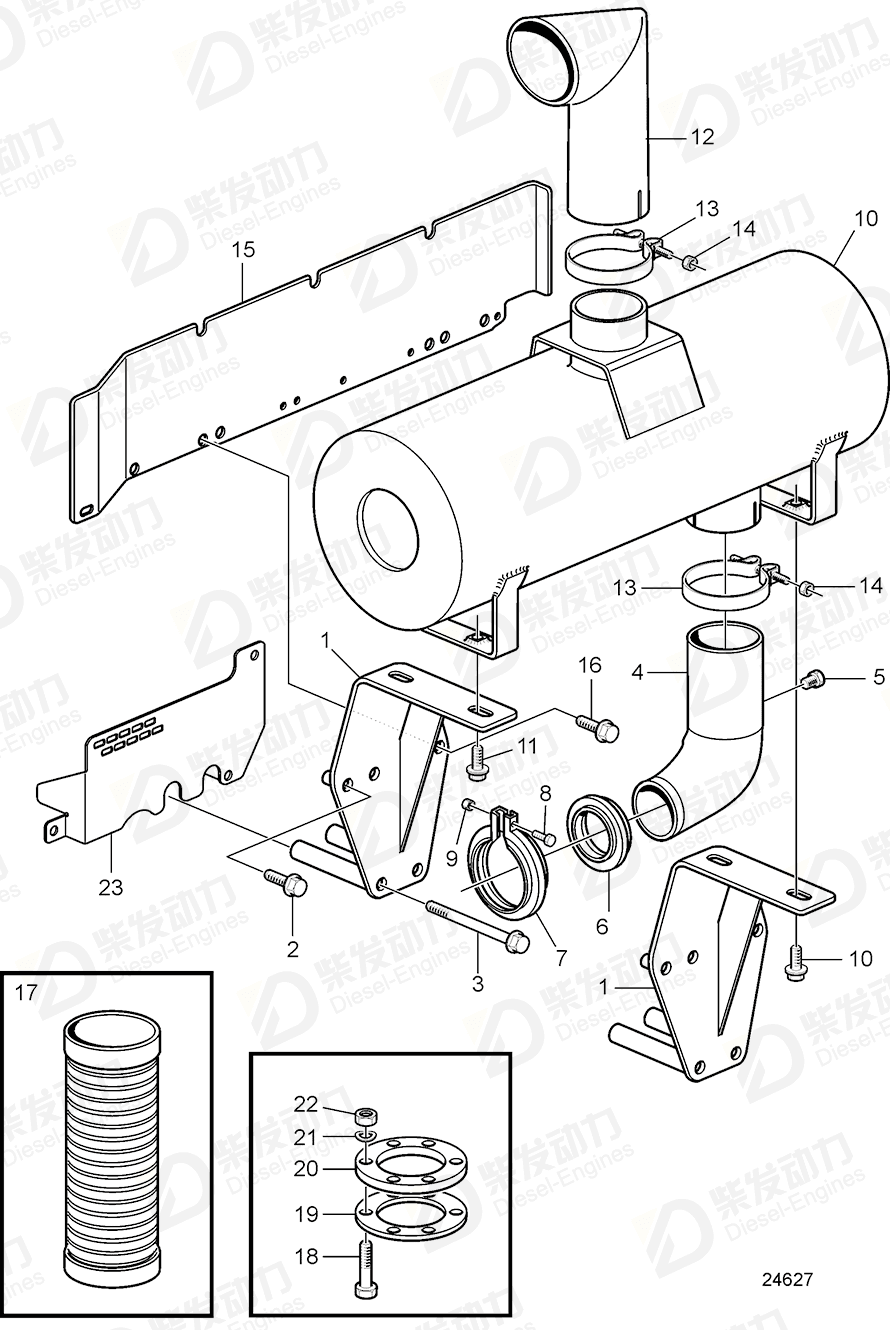

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 21808121 | 2 | |
| 2 | Flange screw | 973096 | 4 | |
| 3 | Flange screw | 984755 | 4 | |
| 4 | Pipe elbow | 3838156 | 1 | 6'' |
| 5 | Plug | 479979 | 1 | |
| 6 | Flange | 3838153 | 1 | |
| 7 | V-clamp | 1624612 | 1 | |
| 8 | Flange screw | 994386 | 1 | |
| 9 | Flange lock nut | 990950 | 1 | |
| 10 | Silencer | 3819614 | 1 | |
| 11 | Flange screw | 984815 | 4 | |
| 12 | End pipe | 3837622 | 1 | |
| 13 | Clamp | 3837623 | 2 | |
| 14 | Flange lock nut | 990952 | 2 | |
| 15 | Heat shield | 3884341 | 1 | |
| 16 | Flange screw | 984751 | 3 | |
| 17 | Exhaust pipe, flexible | 3828218 | 1 | 6'' L=380mm |
| 18 | Hexagon screw | 955368 | 8 | |
| 19 | Gasket | 862593 | 1 | |
| 20 | Flange | 836883 | 1 | 6'' |
| 21 | Spring washer | 941912 | 8 | |
| 22 | Hexagon nut | 955785 | 8 | |
| 23 | Radiation shield | 3818518 | 1 |
| Item | Part Name | Part No. |
| 15 | Heat shield 3884341 | 3884341 |
| Details | |
| Engine model | TAD1640GE, TAD1641GE, TAD1642GE TAD1641VE, TAD1642VE, TAD1643VE TAD1643VE-B |
| Application | Silencer, Engine Mounted |
