Heat shield 465313

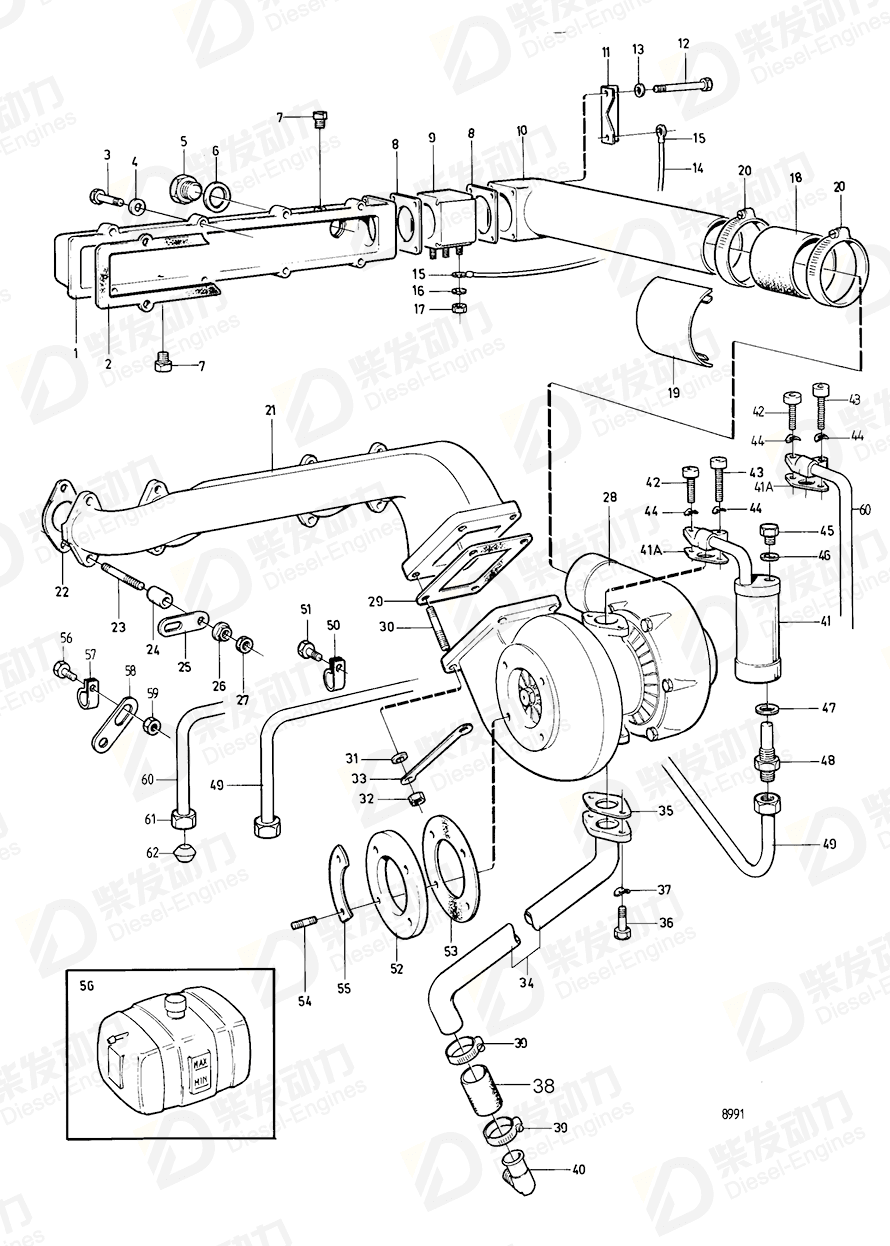

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 4804109 | 1 | |
| 2 | Gasket | 11030035 | 1 | |
| 3 | Hexagon screw | 940161 | 8 | For engine with 40° angle of inclination, L=45mm |
| 4 | Spring washer | 941907 | 8 | |
| 5 | Plug | 192114 | 1 | |
| 6 | Gasket | 957185 | 1 | |
| 7 | Plug | 191026 | 2 | |
| 8 | Gasket | 424619 | 2 | |
| 9 | Heater | 471204 | 1 | Later prod |
| 10 | Tube | 4804439 | 1 | |
| 12 | Hexagon screw | 955533 | 2 | For engine with 40° angle of inclination, L=102mm |
| 12 | Hexagon screw | 959795 | 2 | SN2120226440- |
| 13 | Spring washer | 941907 | 4 | |
| 14 | Electric cable, type RK | 954485 | 1 | 16,0mm², red |
| 15 | Cable terminal | 940336 | 2 | M8x10,1-16,0mm² |
| 16 | Hexagon nut | 17624 | 1 | |
| 17 | Spring washer | 941907 | 1 | |
| 18 | Hose | 466327 | 1 | |
| 19 | Heat shield | 465313 | 1 | |
| 20 | Hose clamp | 943479 | 2 | |
| 21 | Exhaust pipe | 4804305 | 1 | |
| 22 | Gasket | 4804249 | 4 | |
| 23 | Stud | 953492 | 8 | L=60mm |
| 24 | Spacer sleeve | 422217 | 8 | |
| 26 | Flange nut | 942299 | 8 | |
| 27 | Hexagon nut | 955835 | 8 | |
| 28 | Turbocharger | 4881090 | 1 | MO-66109 |
| 28 | Turbocharger | 4881650 | 1 | MO66110- |
| 29 | Bracket | 420619 | 1 | Included in turbo., (466392) |
| 30 | Stud | 953259 | 4 | |
| 31 | Washer | 940097 | 4 | |
| 32 | Nut | 943152 | 4 | |
| 33 | Tab washer | 942167 | 2 | |
| 34 | Tube | 4804694 | 1 | |
| 35 | Plane gasket | 420643 | 1 | |
| 36 | Hexagon screw | 955297 | 2 | |
| 37 | Spring washer | 941907 | 2 | |
| 38 | Hose | 466328 | 1 | |
| 39 | Hose clamp | 943473 | 2 | |
| 40 | Elbow nipple | 468629 | 1 | TAMD70C,AQD70C. |
| 41 | Oil reservoir | 4804445 | 1 | Replaced by pipe-4804887,ferrule-956970,plate-956984, bracket-843711,clamp-190635,screw-955513 and plate-955825 |
| 42 | Hex. socket screw | 959222 | 1 | L = 25 MM |
| 43 | Hex. socket screw | 959223 | 1 | L = 30 MM |
| 44 | Spring washer | 941907 | 2 | |
| 45 | Plug | 960628 | 1 | |
| 46 | Gasket | 947281 | 1 | |
| 47 | Gasket | 947622 | 1 | |
| 48 | Nipple | 4804448 | 1 | Replaced by pipe-4804887,ferrule-956970,plate-956984, bracket-843711,clamp-190635,screw-955513 and plate-955825 |
| 49 | Oil feed pipe | 4804696 | 1 | Replaced by pipe-4804887,ferrule-956970,plate-956984, bracket-843711,clamp-190635,screw-955513 and plate-955825 |
| 50 | Clamp | 946834 | 2 | |
| 51 | Hexagon screw | 940113 | 2 | |
| 52 | Flange | 844809 | 1 | |
| 53 | Gasket | 847583 | 1 | (6854724) |
| 54 | Stud | 924064 | 4 | |
| 55 | Tab washer | 949134 | 2 | |
| 56 | Hexagon screw | 955513 | 1 | |
| 57 | Clamp | 190635 | 1 | |
| 58 | Bracket | 843711 | 1 | |
| 59 | Hexagon nut | 955825 | 1 | Late type |
| 60 | Oil feed pipe | 4804887 | 1 | |
| 61 | Fitting nut | 956984 | 1 | |
| 62 | Ferrule | 956970 | 1 | |
| 41A | Plane gasket | 420641 | 1 |
| Item | Part Name | Part No. |
| 19 | Heat shield 465313 | 465313 |
| Details | |
| Engine model | TD45B TD60A TD60B TD60D TD60D-83 TD71A TD730ME TD730VE |
| Application | Induction Manifold, Low Mounted Turbocharger Induction-and Exhaust Manifold: A Induction-and Exhaust Manifold: B Inlet-,Exhaust Manifold and Turbocharger Turbo and Installation Components, Low Mounted TURBO AND INSTALLATION COMPONENTS, LOW MOUNTED: A TURBO AND INSTALLATION COMPONENTS, LOW MOUNTED: B Turbocharger and Installation Components,low Mounted |
