Hex. socket screw 956569

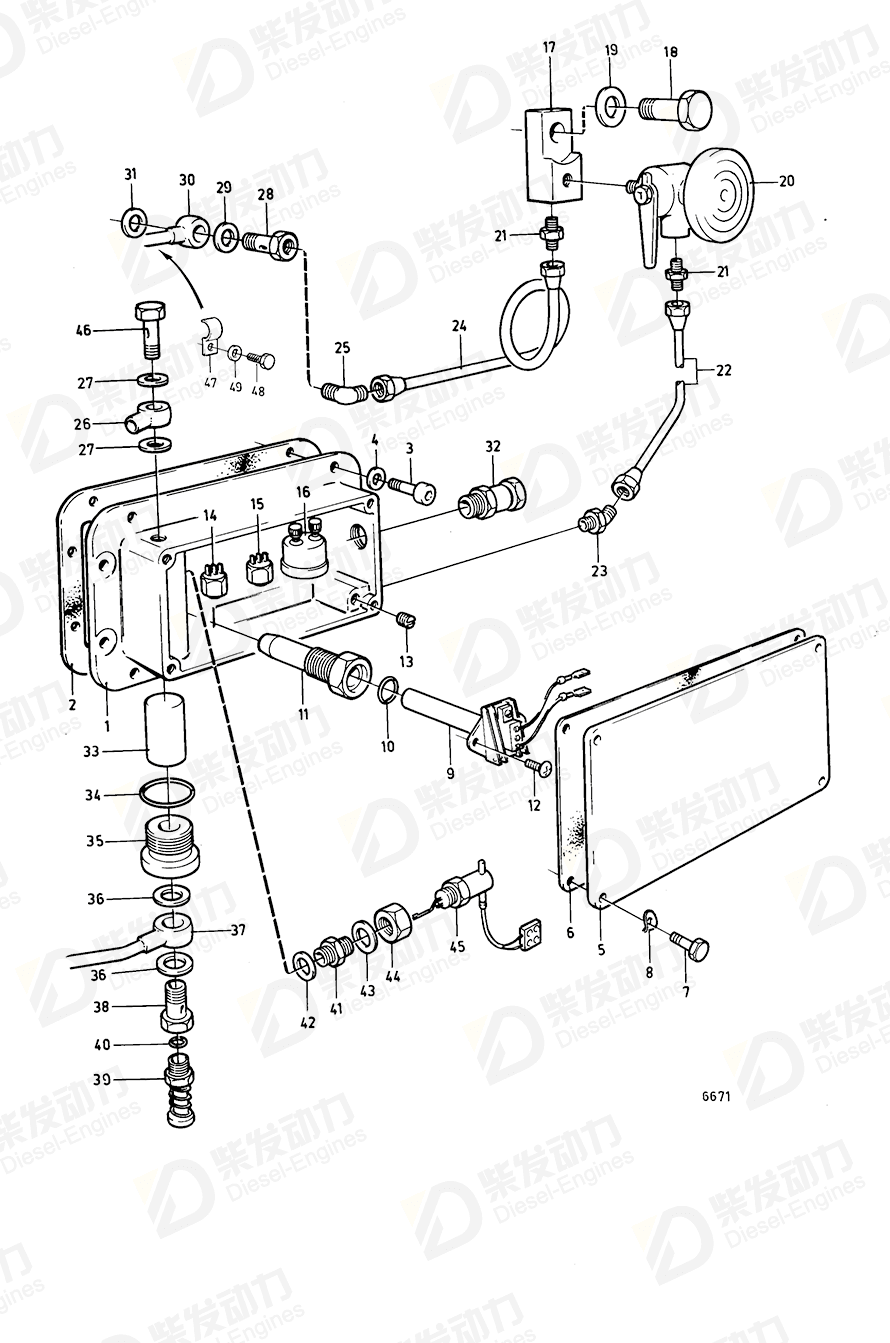

| No. | Part Name | Part Number | Qty | Description |
| 1 | Housing | 845627 | 1 | |
| 2 | Gasket | 823185 | 1 | |
| 3 | Hex. socket screw | 956569 | 12 | |
| 4 | Gasket | 11992 | 12 | |
| 5 | Cover | 845708 | 1 | |
| 6 | Gasket | 845709 | 1 | |
| 7 | Screw | 846431 | 4 | |
| 8 | Spring washer | 941906 | 4 | |
| 9 | Thermo monitor | 843768 | 1 | |
| 10 | Gasket | 957179 | 1 | For governor 225-1200. |
| 11 | Sleeve | 843288 | 1 | |
| 12 | Cross recessed screw | 956062 | 2 | |
| 13 | Plug | 16325 | 5 | |
| 14 | Contact | 843813 | 1 | |
| 15 | Contact | 843812 | 1 | |
| 16 | Sensor | 881432 | 1 | |
| 17 | Bracket | 844120 | 1 | |
| 18 | Hexagon screw | 955590 | 1 | For charging of 2 batteries,use charge distributor 831793 |
| 19 | Spring washer | 941912 | 1 | |
| 20 | Cock | 836273 | 1 | |
| 21 | Nipple | 954335 | 2 | |
| 22 | Oil pipe | 844284 | 1 | |
| 23 | Nipple | 831965 | 1 | |
| 24 | Oil pipe | 844283 | 1 | |
| 25 | Elbow nipple | 954342 | 1 | |
| 26 | Banjo nipple | 25168 | 1 | |
| 27 | Gasket | 957178 | 2 | |
| 28 | Hollow screw | 844116 | 1 | SEE GROUP 3 |
| 29 | Gasket | 942703 | 1 | |
| 30 | Oil pressure pipe | 822571 | 1 | |
| 31 | Gasket | 957181 | 1 | |
| 32 | Grommet | 881193 | 1 | Replaced by 1 alterator 841765 and 1 cable unit 841822. |
| 33 | Float | 843815 | 1 | |
| 34 | Gasket | 957191 | 1 | |
| 35 | Control button | 843805 | 1 | |
| 36 | Gasket | 957178 | 2 | |
| 37 | Tube | 847001 | 1 | See group 3 |
| 38 | Hollow screw | 823417 | 1 | |
| 39 | Valve | 844770 | 1 | |
| 40 | O-ring | 960202 | 1 | |
| 41 | Nipple | 843688 | 1 | |
| 42 | Gasket | 15304 | 1 | |
| 43 | Gasket | 957181 | 1 | |
| 44 | Lock nut | 843640 | 1 | |
| 45 | Flow monitor | 843757 | 1 | |
| 46 | Hollow screw | 25167 | 1 | |
| 47 | Clamp | 940374 | 2 | |
| 48 | Hex. socket screw | 956570 | 2 | |
| 49 | Washer | 955894 | 2 |
| Item | Part Name | Part No. |
| 3 | Hex. socket screw 956569 | 956569 |
| Details | |
| Engine model | D100BHC D100BHC, TD100AHC D100BRC D120A D70B D70CHC D70CHC, D70CRC, TD70CHC, TD70CRC D70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100AHC TD100ARC TD100CHC TD100CRC TD120AHC TD120AHC, TD120ARC, TAD120AHC, TAD120BHC TD120ARC TD120BHC TD120BRC TD121CHC TD121CRC TD60A TD60B TD60D TD60D-83 TD70CHC TD70CRC TID60D TID60DG |
| Application | Air Filter and Installation Components: A Circulation Pump and Thermostat with Installation Components: A Circulation Pump and Thermostat with Installation Components: B Heat Exchanger and Thermostat with Installation Components Heat Exchanger and Thermostat with Installation Components: A Heat Exchanger and Thermostat with Installation Components: B Heat Exchanger and Thermostat with Installation Components: C LUBRICATING SYSTEM LUBRICATING SYSTEM, ANGLE OF INCLINATION 40°: A Lubricating System, Classed Engine Lubricating System, Classed Engine: A Lubricating System: A Lubricating System: B Lubricating System: C Lubricating System: D Oil and Fuel Supervision with Installation Components OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: A OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: B OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: C OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: D Oil Cooler and Installation Components OIL COOLER WITH INSTALLATION COMPONENTS SEA WATER PUMP WITH INSTALLATION COMPONENTS THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: A THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: B THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: C Tube Heat Exchanger and Thermostat with Installation Components: A Tube Heat Exchanger and Thermostat with Installation Components: B |
| Specification | |
| Descriptions | (956567) AQ140A MO-7019/XXXX. AQ120B MO-602/XXXX. L=22mm When oil supervision is mounted. |
