Hex. socket screw 956571

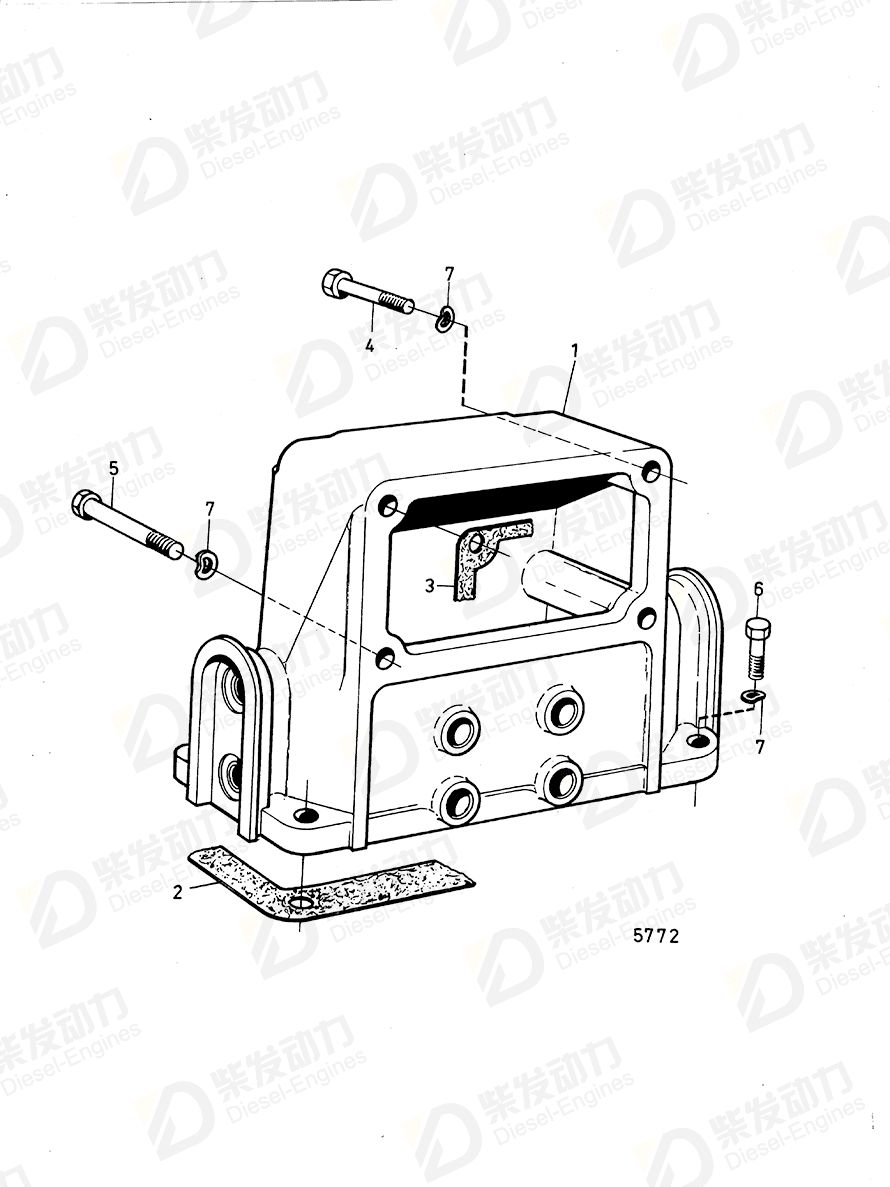

| No. | Part Name | Part Number | Qty | Description |
| 1 | Housing | 845594 | 1 | |
| 2 | Gasket | 424616 | 1 | |
| 3 | Gasket | 862589 | 1 | |
| 4 | Hexagon screw | 955528 | 2 | |
| 5 | Hexagon screw | 955531 | 2 | Late type |
| 6 | Hex. socket screw | 956571 | 4 | SEE GROUP 2B |
| 7 | Spring washer | 941907 | 8 |
| Item | Part Name | Part No. |
| 6 | Hex. socket screw 956571 | 956571 |
| Details | |
| Engine model | D100BHC, TD100AHC D70B D70CHC D70CHC, TD70CHC D70CRC, TD70CRC DH10A, THD102KD, THD102KB TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD120AHC TD120AHC, TAD120AHC TD60B TD60D TD70B TD70CHC TD70G |
| Application | After Cooler with Installation Components Air Filter and Installation Components, Earlier Prod Circulation Pump and Thermostat with Installation Components Circulation Pump and Thermostat with Installation Components: B Housing Induction and Exhaust System: A Induction Manifold and Installation Components Inlet Manifold and Installation Components Oil Cooler and Installation Components OIL COOLER WITH INSTALLATION COMPONENTS OIL FILTER WITH INSTALLATION COMPONENTS Oil Pump Starting Element and Installation Components THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Tube Heat Exchanger and Thermostat with Installation Components: A Tube Heat Exchanger and Thermostat with Installation Components: B Turbo and Installation Components, MO47461/XXXXX- |
| Specification | |
| Descriptions | D70B classed engine spec.867053 MOXXXXX/5846-. L=32mm L=32mm see group 2A L=32mm see group 2B LMV L = 32 MM LMW L=32mm SEE GROUP 2A SEE GROUP 2B |
