Hex. socket screw 959249

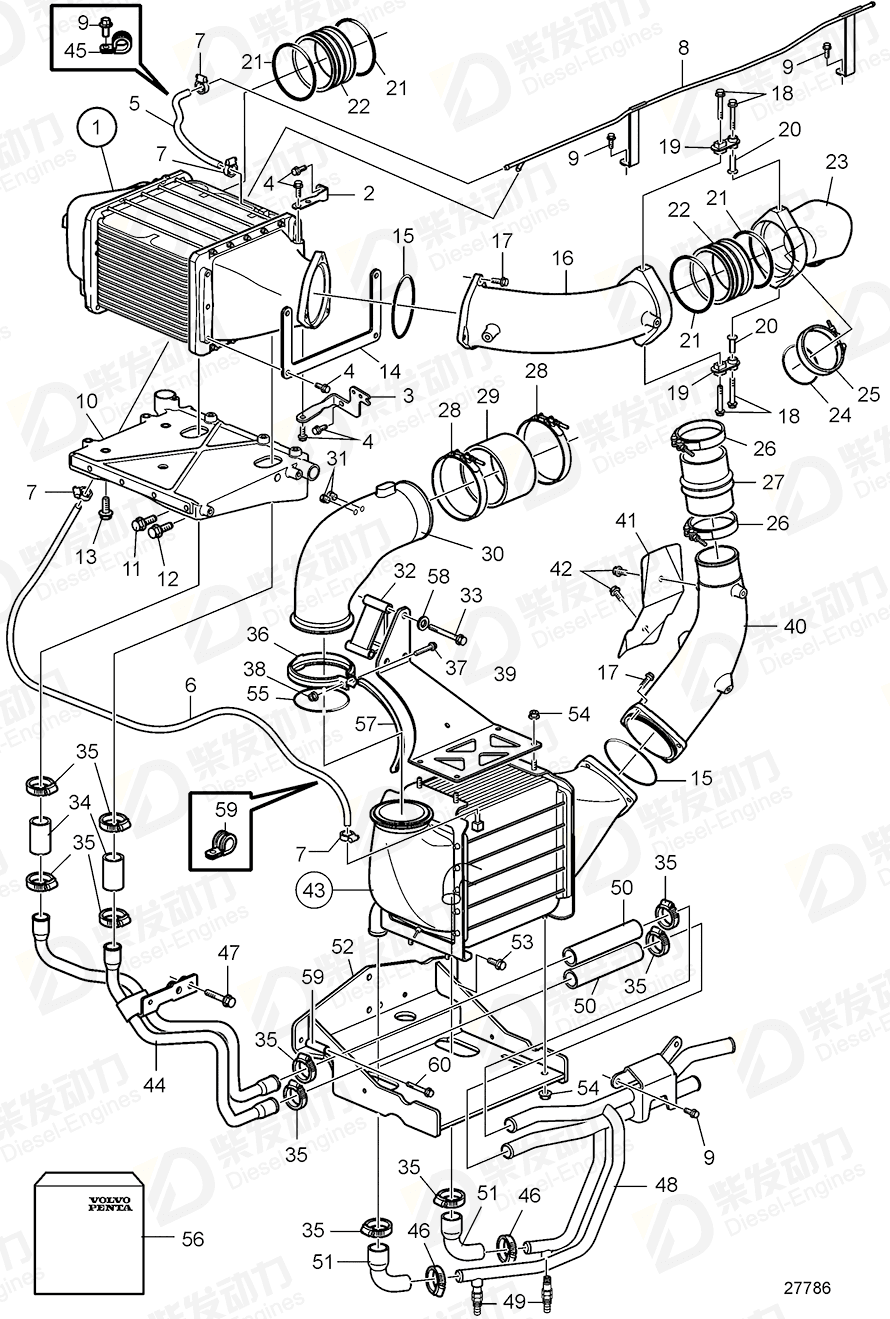

| No. | Part Name | Part Number | Qty | Description |
| 1 | Charge air cooler | 21757126 | 1 | |
| 2 | Bracket | 3595478 | 2 | SN2016108371- |
| 3 | Bracket | 3595478 | 1 | SN2016108371- |
| 4 | Flange screw | 984734 | 8 | |
| 5 | Rubber hose | 943366 | 1 | L=600mm late type |
| 6 | Rubber hose | 943366 | 1 | L=600mm late type |
| 7 | Hose clamp | 994555 | 4 | |
| 8 | Air vent pipe | 3886012 | 1 | |
| 9 | Flange screw | 984733 | 5 | |
| 10 | Bracket | 21723126 | 1 | |
| 11 | Flange screw | 984817 | 2 | |
| 12 | Flange screw | 990810 | 4 | |
| 13 | Flange screw | 984755 | 4 | |
| 14 | Bracket | 3842094 | 1 | |
| 15 | O-ring | 948888 | 2 | |
| 16 | Connecting pipe | 3593652 | 1 | |
| 17 | Flange screw | 984736 | 7 | |
| 18 | Flange screw | 984739 | 4 | |
| 19 | Link arm | 3594032 | 2 | |
| 20 | Sleeve | 3849960 | 2 | |
| 21 | O-ring | 21944536 | 4 | |
| 22 | Connector | 22288438 | 2 | |
| 23 | Connecting pipe | 21681141 | 1 | |
| 24 | O-ring | 945512 | 1 | |
| 25 | V-clamp | 3886542 | 1 | |
| 26 | Hose clamp | 865575 | 2 | |
| 27 | Charge air hose | 865127 | 1 | |
| 28 | Hose clamp | 1544735 | 2 | |
| 29 | Rubber collar | 21488062 | 1 | |
| 30 | Connecting pipe | 21673127 | 1 | |
| 31 | Plug | 479979 | 2 | |
| 32 | Spacer | 21951308 | 3 | |
| 33 | Hex. socket screw | 959249 | 3 | |
| 34 | Hose | 952974 | 1 | |
| 35 | Hose clamp | 994561 | 10 | |
| 36 | V-clamp | 1624612 | 1 | |
| 37 | Flange screw | 994441 | 1 | |
| 38 | Flange lock nut | 990950 | 1 | |
| 39 | Bracket | 21935139 | 1 | |
| 40 | Connecting pipe | 3840414 | 1 | |
| 41 | Heat shield | 3883371 | 1 | |
| 42 | Flange screw | 984732 | 2 | |
| 43 | Charge air cooler | 21712163 | 1 | |
| 44 | Coolant pipe | 3842108 | 1 | Replaced by 22995887 |
| 44 | Coolant pipe | 22995887 | 1 | |
| 45 | Clamp | 949747 | 2 | |
| 46 | Hose clamp | 994559 | 2 | |
| 47 | Flange screw | 975112 | 2 | |
| 48 | Coolant pipe | 22432253 | 1 | |
| 49 | Shut-off cock | 997641 | 2 | |
| 50 | Hose | 952973 | 1 | L = 110 MM |
| 51 | Hose | 3842112 | 2 | |
| 52 | Bracket | 3889909 | 1 | Replaced by 23002494 |
| 52 | Bracket | 23002494 | 1 | |
| 53 | Flange screw | 984752 | 3 | |
| 54 | Flange nut | 990940 | 8 | |
| 55 | O-ring | 975610 | 1 | For engines without air compressor. |
| 56 | Assembly instruction | 7748117 | 1 | |
| 57 | Moulding | 22000711 | 1 | |
| 58 | Washer | 190509 | 3 | |
| 59 | Spacer sleeve | 1546517 | 1 | |
| 60 | Flange screw | 975103 | 1 |
| Item | Part Name | Part No. |
| 33 | Hex. socket screw 959249 | 959249 |
| Details | |
| Engine model | TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1360VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TWD1644GE, TWD1645GE TWD1652GE, TWD1653GE TWD1663GE TWD1672GE, TWD1673GE |
| Application | After Cooler and Installation Components Belt System Belt Transmission and Belt Tensioner Device |
