Hex. socket screw 963699

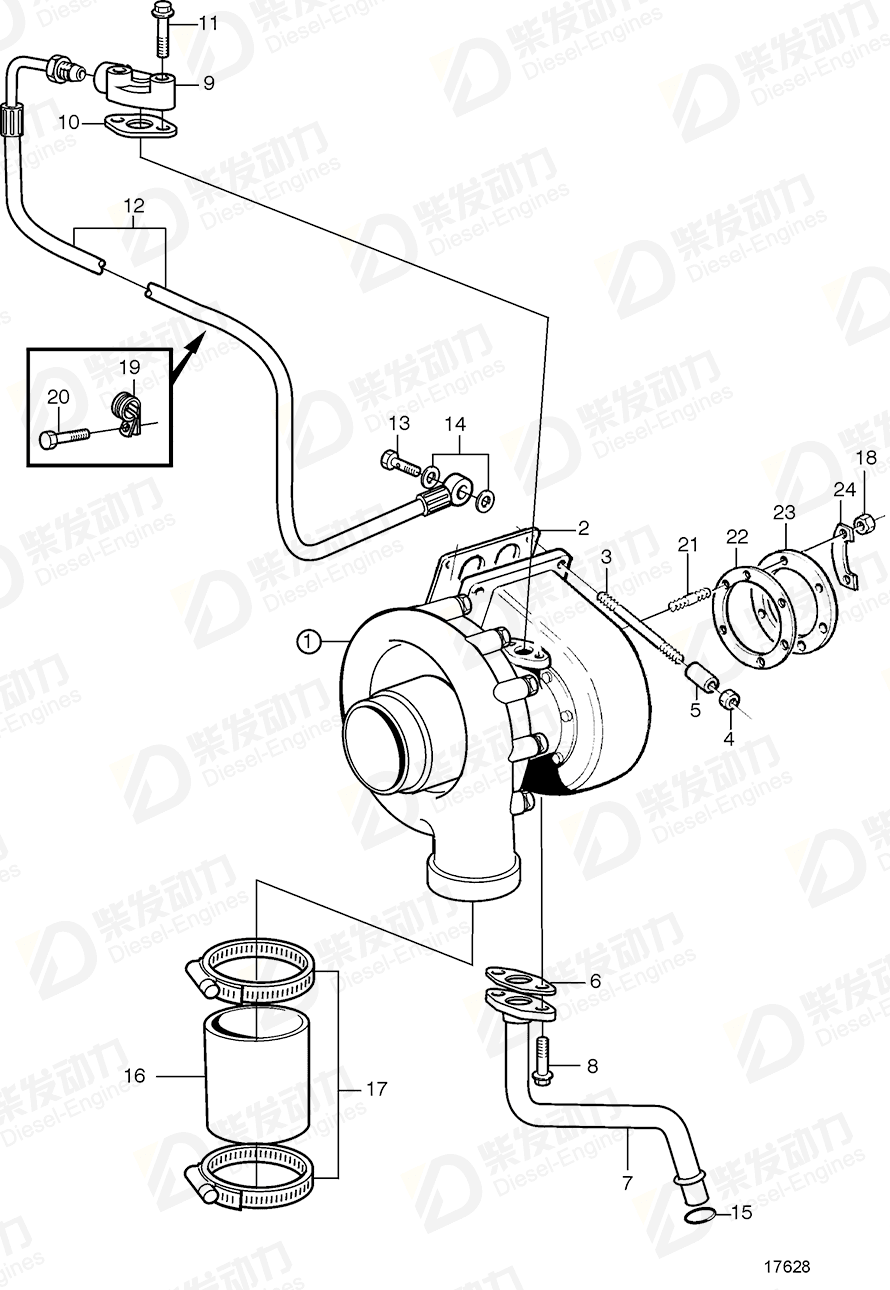

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802137 | 1 | |
| 2 | Gasket | 420618 | 1 | (466392) |
| 3 | Stud | 977298 | 2 | |
| 3 | Stud | 20579303 | 2 | (977299) |
| 4 | Flange lock nut | 471622 | 4 | |
| 5 | Spacer sleeve | 470467 | 2 | |
| 6 | Plane gasket | 420643 | 1 | |
| 7 | Oil return pipe | 8192852 | 1 | |
| 8 | Flange screw | 945444 | 2 | |
| 9 | Flange | 8192268 | 1 | |
| 10 | Plane gasket | 420641 | 1 | |
| 11 | Hex. socket screw | 963699 | 2 | |
| 12 | Oil feed hose | 3830980 | 1 | |
| 13 | Hollow screw | 190713 | 1 | |
| 14 | Gasket | 11996 | 2 | |
| 15 | Rubber moulding | 471626 | 1 | |
| 16 | Hose | 847385 | 1 | |
| 17 | Hose clamp | 943479 | 2 | |
| 18 | Hexagon nut | 946330 | 6 | |
| 19 | Clamp | 949746 | 2 | |
| 20 | Flange screw | 947107 | 2 | |
| 21 | Stud | 924064 | 6 | |
| 22 | Gasket | 424628 | 1 | Included in gasket kit. |
| 23 | Flange | 844935 | 1 | |
| 24 | Tab washer | 947071 | 3 | TD60B PP |
| Item | Part Name | Part No. |
| 11 | Hex. socket screw 963699 | 963699 |
| Details | |
| Engine model | TAD740GE, TAD741GE TWD740GE TWD740VE |
| Application | Turbocharger |
Related Products
Tags: Hex. socket screw, Volvo Penta, 963699
