Hexagon nut 955806

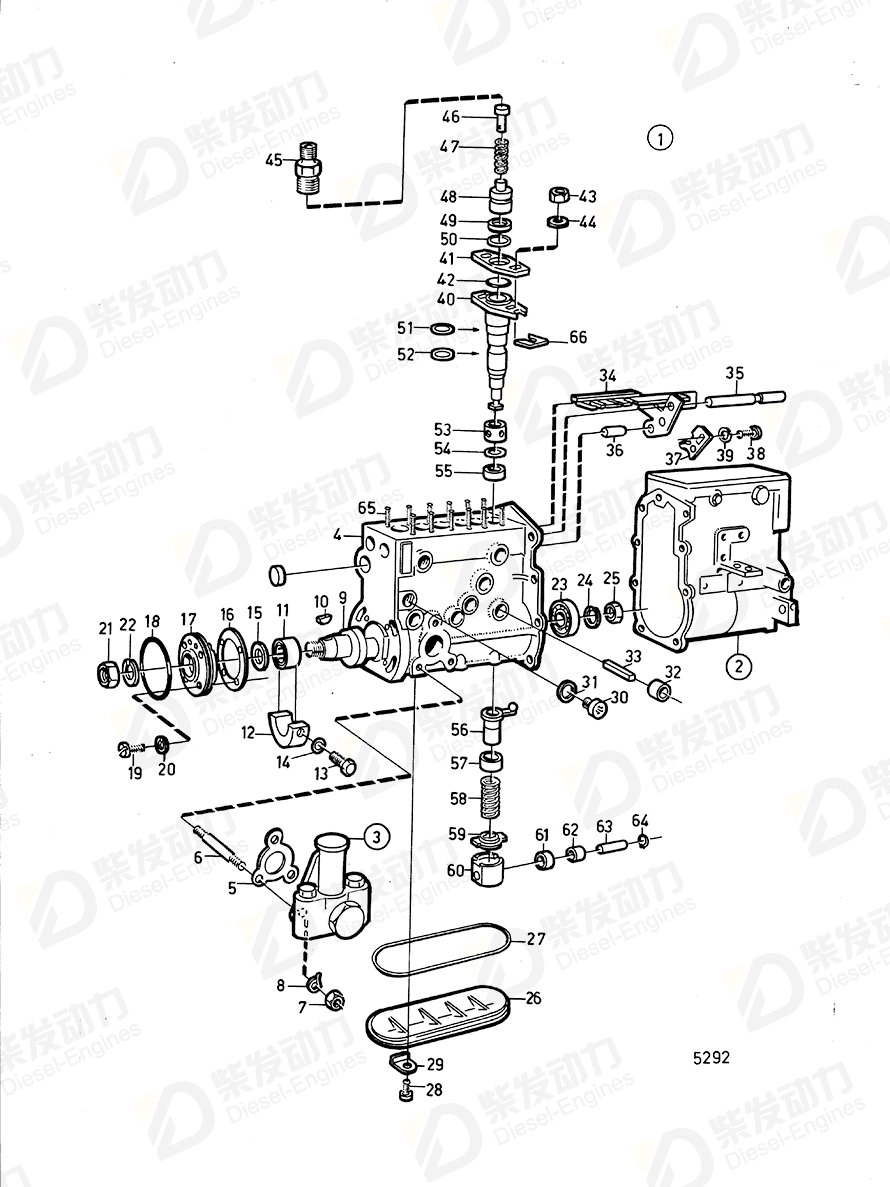

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 843306 | 1 | |
| 2 | Governor | 845390 | 1 | |
| 3 | Feed pump | 244483 | 1 | |
| 3 | Feed pump | 845389 | 1 | Repl by 244483 |
| 5 | Gasket | 239896 | 1 | |
| 6 | Stud | 130673 | 3 | |
| 7 | Hexagon nut | 955781 | 3 | |
| 8 | Spring washer | 941906 | 3 | |
| 9 | Camshaft | 244521 | 1 | |
| 10 | Key | 35168 | 1 | |
| 11 | Bearing | 244069 | 1 | |
| 12 | Bearing shell | 244528 | 1 | |
| 13 | Screw | 244529 | 2 | |
| 14 | Gasket | 190990 | 2 | |
| 15 | Sealing ring | 244073 | 1 | |
| 16 | Gasket | 6212652 | 1 | (244523) |
| 17 | Bearing carrier | 244524 | 1 | |
| 18 | O-ring | 244091 | 1 | |
| 19 | Cross recessed screw | 956094 | 4 | |
| 20 | Spring washer | 941906 | 4 | |
| 21 | Hexagon nut | 955806 | 1 | |
| 22 | Spring washer | 941913 | 1 | |
| 23 | Bearing | 244522 | 1 | |
| 24 | Spring washer | 941915 | 1 | |
| 25 | Nut | 244527 | 1 | |
| 26 | Cover | 244526 | 1 | |
| 27 | Gasket | 244077 | 1 | |
| 28 | Cross recessed screw | 956091 | 6 | |
| 29 | Lock washer | 244079 | 6 | |
| 30 | Plug | 244092 | 1 | |
| 31 | Gasket | 18844 | 1 | |
| 32 | Cap | 244076 | 3 | |
| 33 | Spacer | 244525 | 3 | |
| 34 | Control arm | 244511 | 1 | |
| 35 | Locating pin | 244510 | 1 | |
| 36 | Pin | 244513 | 1 | |
| 37 | Plate | 244512 | 1 | |
| 38 | Cross recessed screw | 956095 | 2 | |
| 39 | Spring washer | 941906 | 2 | |
| 40 | Pump element | 244697 | 6 | (244504) repl by 244697 |
| 41 | Cover plate | 244503 | 6 | |
| 42 | O-ring | 244536 | 6 | |
| 43 | Hexagon nut | 955782 | 12 | |
| 44 | Spring washer | 941907 | 12 | |
| 45 | Retainer | 244056 | 6 | |
| 46 | Filling-in plug | 244509 | 6 | |
| 47 | Compression spring | 238309 | 6 | |
| 48 | Delivery valve | 845191 | 6 | |
| 49 | O-ring | 845192 | 6 | |
| 50 | Gasket | 244054 | 6 | (843163) |
| 51 | Spring | 244449 | 6 | |
| 52 | O-ring | 244500 | 6 | |
| 53 | Cap | 244507 | 6 | |
| 54 | Snap ring | 244508 | 6 | |
| 55 | Spacer ring | 244052 | 6 | |
| 56 | Sleeve | 6643666 | 6 | |
| 57 | Spring disc | 244514 | 6 | |
| 58 | Spring | 244515 | 6 | |
| 59 | Spring disc | 244066 | 6 | |
| 60 | Tappet | 244516 | 6 | |
| 61 | Cam follower | 244517 | 6 | |
| 62 | Sleeve | 244518 | 6 | |
| 63 | Bearing bolt | 244519 | 6 | |
| 64 | Lock ring | 244520 | 6 | |
| 65 | Stud | 244501 | 12 | |
| 66 | Adjusting washer | 244080 | 1 | TH=1,50mm |
| 66 | Adjusting washer | 244081 | 1 | TH=1,60mm |
| 66 | Adjusting washer | 244082 | 1 | TH=1,70mm |
| 66 | Adjusting washer | 244083 | 1 | TH=1,80mm |
| 66 | Adjusting washer | 244084 | 1 | TH=1,90mm |
| 66 | Adjusting washer | 244085 | 1 | (239985) |
| 66 | Adjusting washer | 244086 | 1 | TH=2,10mm |
| 66 | Adjusting washer | 244087 | 1 | TH=2,20mm |
| 66 | Adjusting washer | 244088 | 1 | TH=2,30mm |
| 66 | Adjusting washer | 244089 | 1 | TH=2,40mm |
| 66 | Adjusting washer | 244090 | 1 | TH=2,50mm |
| 66 | Adjusting washer | 843170 | 1 | TH=1,55mm |
| 66 | Adjusting washer | 843171 | 1 | TH=1,65mm |
| 66 | Adjusting washer | 843172 | 1 | TH=1,75mm |
| 66 | Adjusting washer | 843173 | 1 | TH=1,85mm |
| 66 | Adjusting washer | 843174 | 1 | TH=1,95mm |
| 66 | Adjusting washer | 843175 | 1 | TH=2,05mm |
| 66 | Adjusting washer | 843176 | 1 | TH=2,15mm |
| 66 | Adjusting washer | 843177 | 1 | TH=2,25mm |
| 66 | Adjusting washer | 843178 | 1 | TH=2,35mm |
| 66 | Adjusting washer | 843179 | 1 | TH=2,45mm |
| Item | Part Name | Part No. |
| 21 | Hexagon nut 955806 | 955806 |
| Details | |
| Engine model | DH10A TD1010G, TWD1010G |
| Application | Fuel Injection Pump Fuel Injection Pump, Components Fuel Injection Pump, Components: 3826523 Fuel Injection Pump, Components: 3828997 Fuel Injection Pump, Components: 863232 Fuel Injection Pump, Components: 864849 Fuel Injection Pump, Components: 864850,866208 Fuel Injection Pump, Components: 864851 Fuel Injection Pump: 240343 Fuel Injection Pump: 240406 Fuel Injection Pump: 240532 Fuel Injection Pump: 241510 Fuel Injection Pump: 241699 Fuel Injection Pump: 243440 Fuel Injection Pump: 243625 Fuel Injection Pump: 467466 FUEL INJECTION PUMP: 836908 Fuel Injection Pump: 836909 Fuel Injection Pump: 836910 Fuel Injection Pump: 836911 Fuel Injection Pump: 837046 Fuel Injection Pump: 837914 Fuel Injection Pump: 842287 FUEL INJECTION PUMP: 842738 Fuel Injection Pump: 843512 FUEL INJECTION PUMP: 843550 Fuel Injection Pump: 843569 Fuel Injection Pump: 843978 Fuel Injection Pump: 843979 Fuel Injection Pump: 844056 Fuel Injection Pump: 844442 Fuel Injection Pump: 845124 Fuel Injection Pump: 845216 Fuel Injection Pump: 845275 FUEL INJECTION PUMP: 845369 Fuel Injection Pump: 845382 FUEL INJECTION PUMP: 845928 Fuel Injection Pump: 846359 Fuel Injection Pump: 846360 Fuel Injection Pump: 846605 Fuel Injection Pump: 846606 Fuel Injection Pump: 846607 Fuel Injection Pump: 846682 Fuel Injection Pump: 847261 Fuel Injection Pump: 847359 Fuel Injection Pump: 847437 Fuel Injection Pump: 847438 Fuel Injection Pump: 847612 Fuel Injection Pump: 847768 Fuel Injection Pump: 848770 Fuel Injection Pump: 849261 Fuel Injection Pump: 849496 Fuel Injection Pump: 849499 Fuel Injection Pump: 849500 Fuel Injection Pump: 862664 Fuel Injection Pump: 862665 Fuel Injection Pump: 870988 Injectors, Pressure Pipes and Leak-off Line, SN1201090022- |
