Hexagon screw 1545257

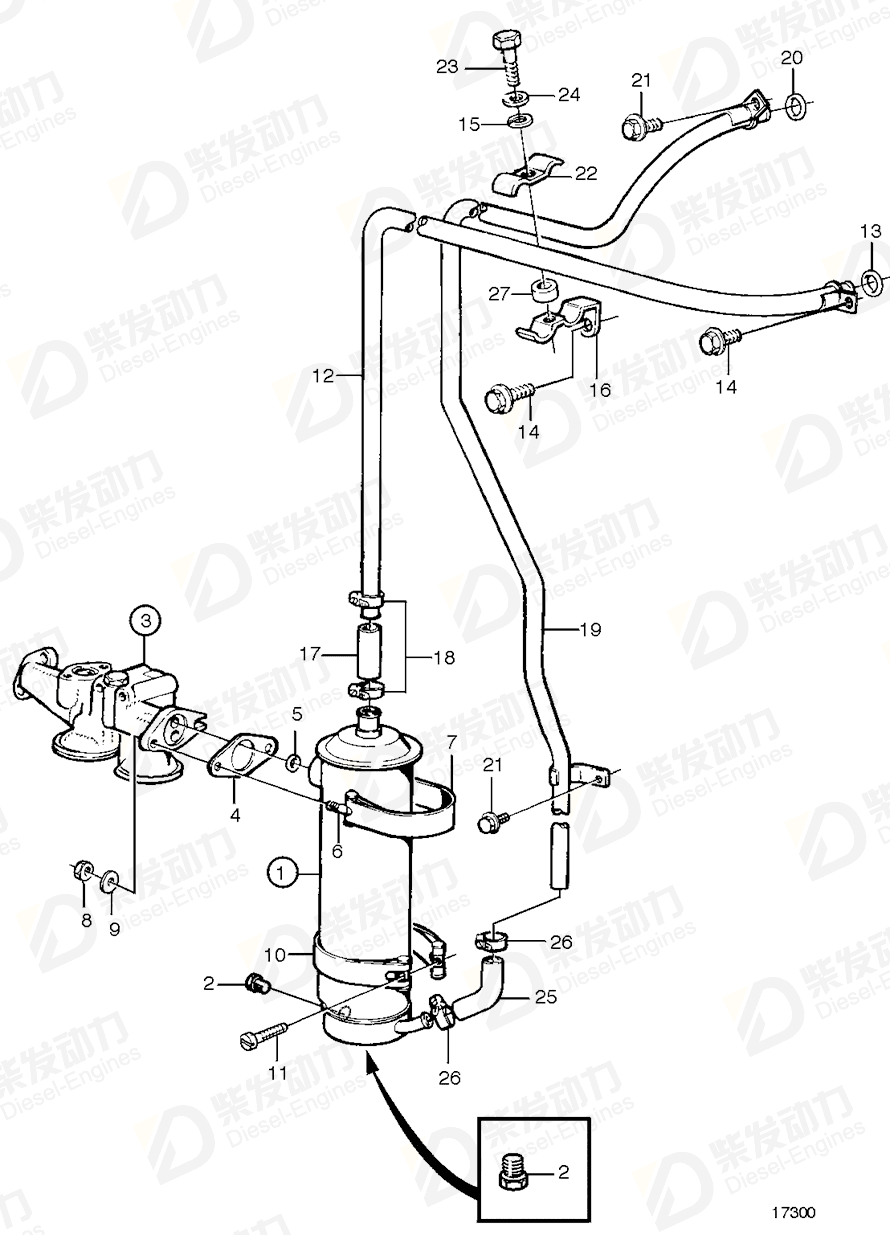

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 468612 | 1 | |
| 2 | Plug | 479979 | 1 | |
| 4 | Guide washer | 468652 | 1 | |
| 5 | Sealing ring | 469483 | 2 | (422581) |
| 6 | Tensioning band | 1545255 | 1 | Late type |
| 7 | Stud | 924072 | 2 | |
| 8 | Hexagon nut | 955782 | 2 | |
| 9 | Washer | 976944 | 2 | |
| 10 | Tensioning band | 1545256 | 1 | (468659) early type |
| 11 | Hexagon screw | 1545257 | 1 | Late type |
| 12 | Tube | 468774 | 1 | SN-XXXXXXXXXX/210691 |
| 12 | Pipe | 479612 | 1 | SNXXXXXXXXXX/210692- |
| 13 | Sealing ring | 470527 | 1 | |
| 14 | Flange screw | 942624 | 2 | 5/16UNCx13 |
| 15 | Spring washer | 941907 | 1 | |
| 16 | Bracket | 468772 | 1 | SN-XXXXXXXXXX/210691 |
| 16 | Bracket | 479616 | 1 | SNXXXXXXXXXX/210692- |
| 17 | Rubber hose | 944386 | 1 | |
| 18 | Hose clamp | 943475 | 2 | |
| 19 | Tube | 470419 | 1 | Repl by pipe 479612, pipe 479614, bracket 479616., SN-XXXXXXXXXX/210691 |
| 19 | Pipe | 479614 | 1 | SNXXXXXXXXXX/210692- |
| 20 | Sealing ring | 470527 | 1 | |
| 21 | Flange screw | 942624 | 2 | 5/16UNCx13 |
| 22 | Attaching plate | 468684 | 1 | |
| 23 | Hexagon screw | 940161 | 1 | For engine with 40° angle of inclination, L=45mm |
| 24 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 25 | Cooling hose | 468706 | 1 | |
| 26 | Hose clamp | 943475 | 2 | |
| 27 | Spacer sleeve | 470721 | 1 |
| Item | Part Name | Part No. |
| 11 | Hexagon screw 1545257 | 1545257 |
| Details | |
| Engine model | D100B, TD100A DH10A, THD102KD, THD102KB TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1650VE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TD100G-87 TD1010G, TWD1010G TD1030ME, TWD1030ME TD1030VE, TAD1030V, TWD1031VE TD120A TD120C TD120G TD120GG TD120HPP TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD30A TID120FG TID120HPP TID121FG |
| Application | Closed Crankcase Ventilation Oil Cooler Oil Cooler -Side Mounted with Installation Components Oil Cooler and Installation Components Oil Cooler and Oil Filter Oil Cooler and Oil Filter: A Oil Cooler and Oil Filter: B Oil Cooler, Side Mounted |
| Specification | |
| Descriptions | Late type |
Related Products
Tags: Hexagon screw, Volvo Penta, 1545257
