Hexagon screw 1677893

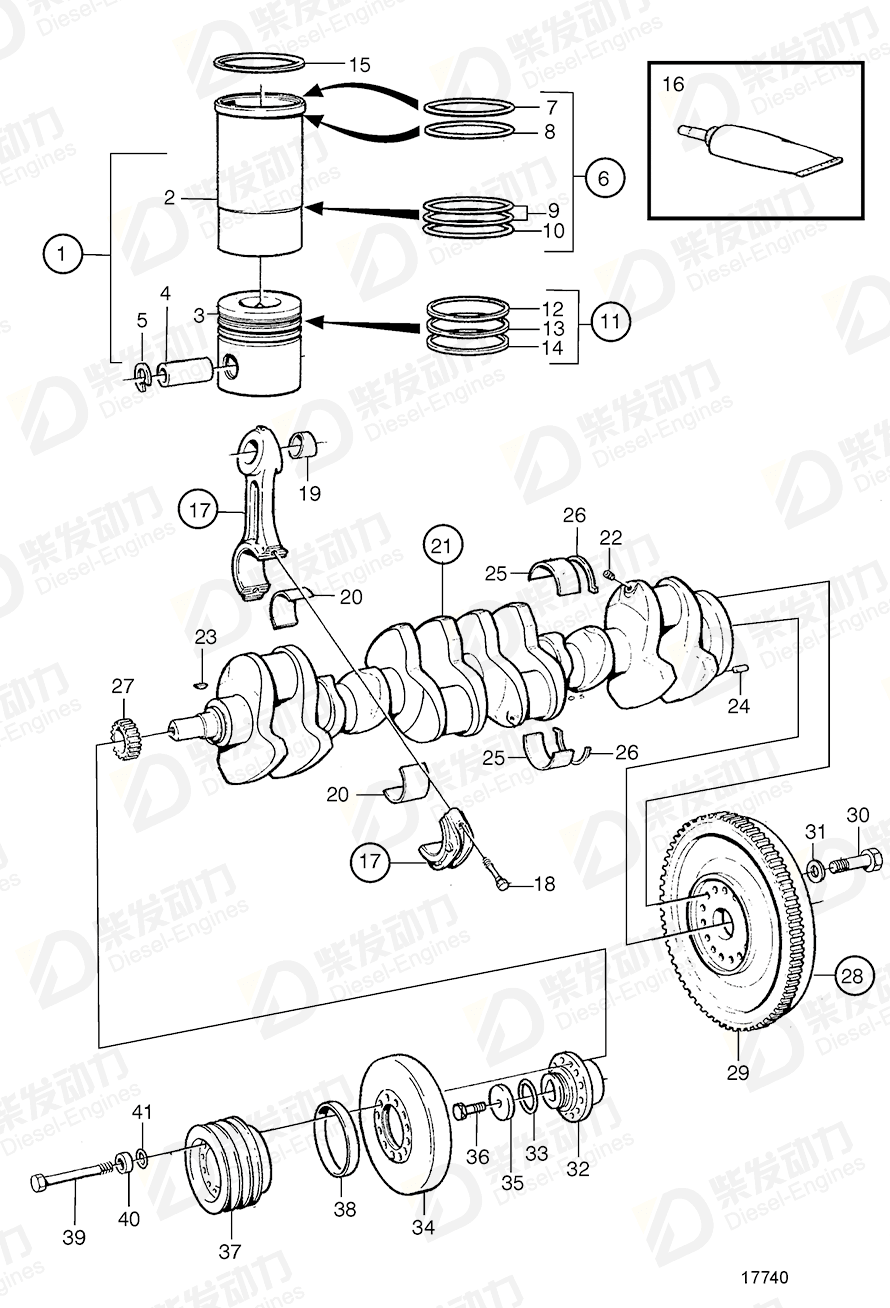

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 877360 | 6 | |
| 4 | Gudgeon pin | 1556939 | 6 | (1556401) |
| 5 | Snap ring | 914532 | 12 | |
| 6 | Sealing ring kit | 270935 | 6 | |
| 7 | Sealing ring | 1543507 | 6 | |
| 11 | Piston ring kit | 877361 | 6 | |
| 15 | Shim | 1548125 | 1 | Shims to adjust the cylinder liner level., TH=0,20mm |
| 15 | Shim | 1548126 | 1 | Shims to adjust the cylinder liner level., TH=0,30mm |
| 15 | Shim | 1548127 | 1 | Shims to adjust the cylinder liner level., TH=0,50mm |
| 16 | Sealant | 1161231 | 1 | 304ml |
| 16 | Sealant | 1161277 | 1 | 20g |
| 17 | Connecting rod | 1556319 | 6 | SN2160022234- |
| 18 | Flange screw | 1543035 | 12 | |
| 19 | Bushing | 1556321 | 6 | SN2160022234- |
| 20 | Big-end bearing kit | 270796 | 6 | Std D |
| 20 | Big end bearing kit | 270797 | 6 | U.S=0,25mm |
| 20 | Big end bearing kit | 270798 | 6 | U.S=0,51mm |
| 20 | Big end bearing kit | 270799 | 6 | U.S=0,76mm |
| 21 | Crankshaft | 863792 | 1 | |
| 22 | Plug | 978130 | 6 | |
| 23 | Woodruff key | 422253 | 1 | |
| 24 | Pin | 950645 | 1 | |
| 25 | Main bearing kit | 270792 | 7 | Std D |
| 25 | Main bearing kit | 270793 | 7 | U.S=0,25mm |
| 25 | Main bearing kit | 270794 | 7 | U.S=0,51mm |
| 25 | Main bearing kit | 270795 | 7 | U.S=0,76mm |
| 26 | Thrust washer kit | 270929 | 1 | Std D |
| 26 | Thrust washer kit | 270930 | 1 | O.S=0,10mm |
| 26 | Thrust washer kit | 270931 | 1 | O.S=0,20mm |
| 26 | Thrust washer kit | 270932 | 1 | 0,30mm o.s |
| 27 | Gear | 1543444 | 1 | |
| 28 | Flywheel | 889617 | 1 | (3825678) |
| 29 | Ring gear | 20711957 | 1 | |
| 30 | Hexagon screw | 1677893 | 14 | |
| 31 | Washer | 1543563 | 14 | |
| 32 | Hub | 848851 | 1 | |
| 33 | O-ring | 945512 | 1 | |
| 34 | Vibration damper | 8193930 | 1 | |
| 35 | Washer | 422124 | 1 | |
| 36 | Screw | 862504 | 1 | |
| 37 | V-belt pulley, 12-hole | 3825893 | 1 | 3-groove, SN2160018481- |
| 38 | Wear ring | 3829683 | 1 | |
| 39 | Hexagon screw | 970960 | 12 | SN-2160018480 |
| 40 | Washer | 4956010 | 12 | SN-2160018480 |
| 41 | O-ring | 955974 | 12 | SN-2160018480 |
| Item | Part Name | Part No. |
| 30 | Hexagon screw 1677893 | 1677893 |
| Details | |
| Engine model | TAD1240GE TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TD164KAE TWD1240VE TWD1620G TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G, TAD1630G, TAD1631G, TAD1631GE |
| Application | Crank Mechanism Crank Mechanism SN1012631189- SN-1012645018 Crank Mechanism SN1012645019- Crank Mechanism: SN-2160022233 Crank Mechanism: SN2160022234- |
| Specification | |
| Descriptions | For flywheel 889617. |
Related Products
Tags: Hexagon screw, Volvo Penta, 1677893
