Hexagon screw 192548

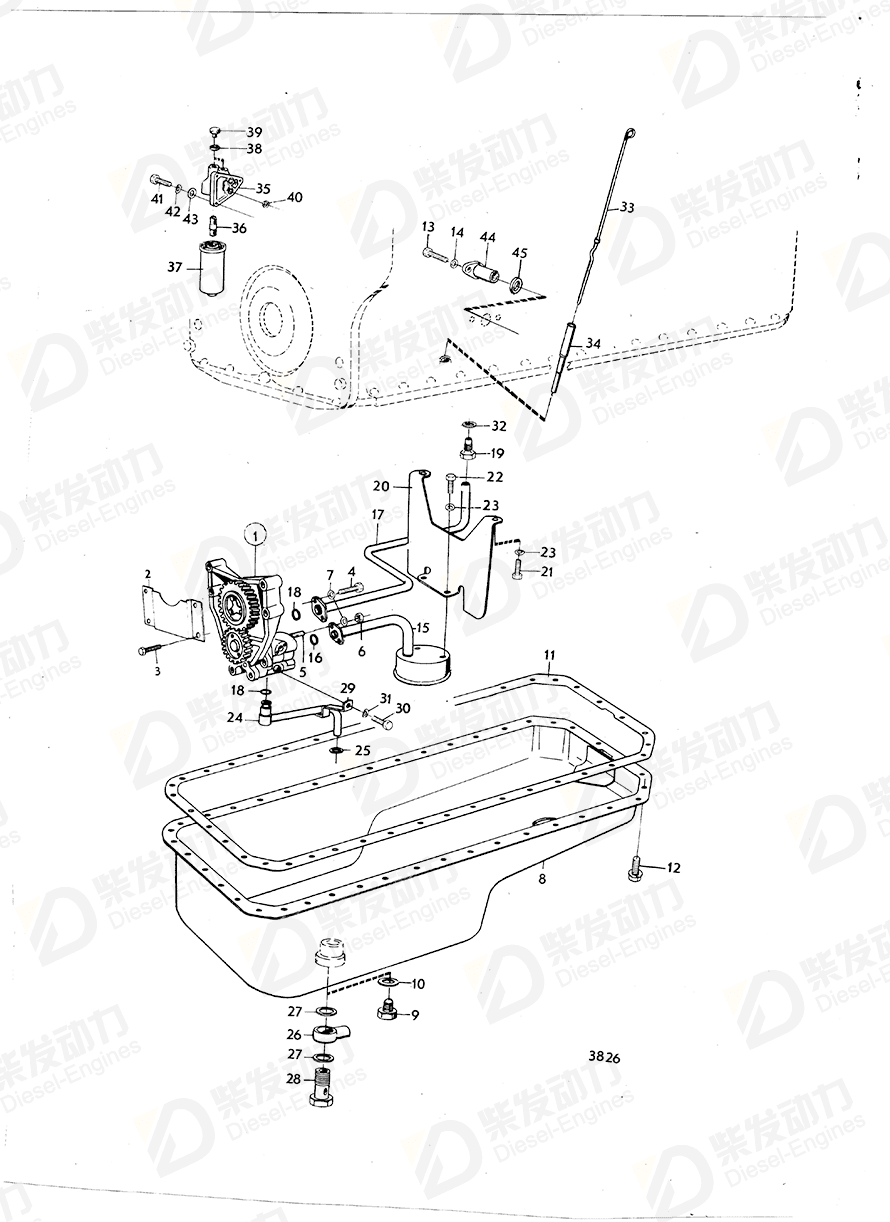

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 821119 | 1 | |
| 2 | Baffle | 421404 | 1 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Hexagon screw | 192548 | 2 | |
| 5 | Stud | 942596 | 2 | |
| 6 | Lock nut | 950353 | 2 | |
| 7 | Spring washer | 941907 | 4 | |
| 8 | Sump | 824279 | 1 | |
| 9 | Magnetic plug | 192538 | 1 | |
| 10 | Gasket | 957185 | 1 | |
| 11 | Gasket | 421025 | 1 | |
| 12 | Hexagon screw | 955524 | 36 | Used on crankshaft 829999. |
| 13 | Hexagon screw | 940100 | 2 | |
| 14 | Spring washer | 941906 | 2 | |
| 15 | Suction pipe | 824256 | 1 | |
| 16 | O-ring | 948229 | 1 | Early type |
| 17 | Delivery pipe | 824254 | 1 | |
| 18 | O-ring | 947061 | 2 | |
| 19 | Fitting | 466906 | 1 | (940358) |
| 20 | Baffle plate | 421056 | 1 | |
| 21 | Hexagon screw | 955523 | 2 | |
| 22 | Hexagon screw | 940113 | 2 | |
| 23 | Spring washer | 941907 | 4 | |
| 24 | Drain pipe | 824275 | 1 | |
| 25 | O-ring | 947060 | 1 | |
| 26 | Banjo nipple | 191928 | 1 | |
| 27 | Gasket | 957185 | 2 | |
| 28 | Hollow screw | 191929 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 30 | Hexagon screw | 955523 | 1 | |
| 31 | Spring washer | 941907 | 1 | |
| 32 | Sealing ring | 822851 | 1 | |
| 33 | Oil dipstick | 421069 | 1 | |
| 34 | Tube | 836179 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 35 | Housing | 421216 | 1 | |
| 36 | Nipple | 423067 | 1 | |
| 37 | Oil filter | 4785974 | 1 | |
| 38 | Gasket | 957185 | 2 | |
| 39 | Plug | 192114 | 2 | |
| 40 | O-ring | 947061 | 2 | |
| 41 | Hexagon screw | 955535 | 3 | |
| 42 | Spring washer | 942336 | 3 | |
| 43 | Washer | 940097 | 3 | |
| 44 | Reduction valve | 421123 | 1 | |
| 45 | O-ring | 949721 | 1 | (925062) |
| Item | Part Name | Part No. |
| 4 | Hexagon screw 192548 | 192548 |
| Details | |
| Engine model | D100A, D100B D100B, TD100A D70B D70B, TD70B TD100G, TD100G-85, TID100K TD100G-87 TD100G-87, TID100K-87 TD70B |
| Application | Lubricating System, 1000 Hours Running Lubricating System, 1000 Hours Running, Spec.9931, 9934, 867023 Lubricating System, 40° Inclination Lubricating System, Angle of Inclination 40° Lubricating System, Spec.9755, 9762, 9803, 9946, 867017, 867024,867045 Lubricating System: A Lubricating System: B Oil Pump |
| Specification | |
| Descriptions | D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt. |
