Hexagon screw 940134

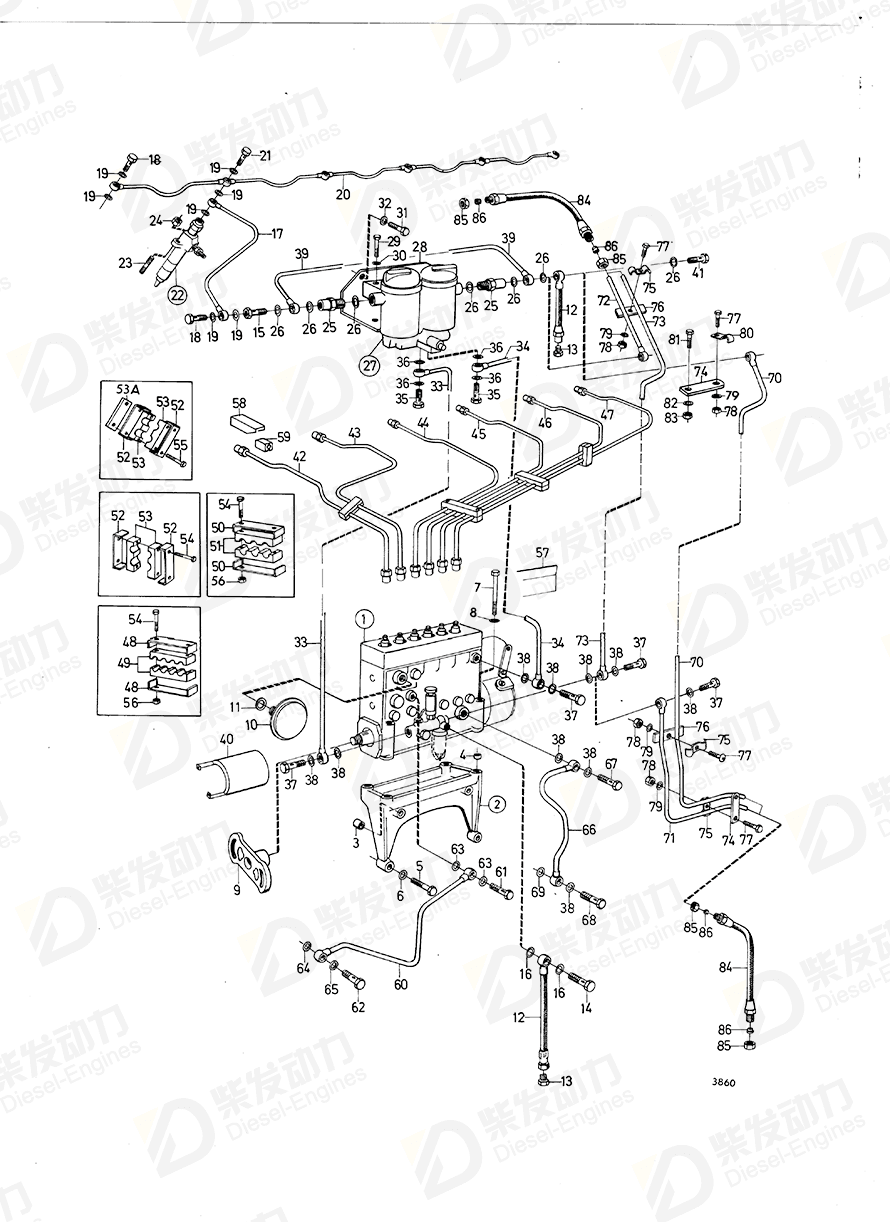

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 836908 | 1 | MO 35255/XXXXX- |
| 2 | Bracket | 468558 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Guide sleeve | 417588 | 1 | |
| 5 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 10 | Pressure equalizer | 466398 | 1 | |
| 11 | Gasket | 957178 | 1 | |
| 13 | Nipple | 22753 | 2 | |
| 14 | Hollow screw | 25167 | 1 | |
| 15 | Hollow screw | 16496 | 1 | |
| 16 | Gasket | 957178 | 2 | |
| 17 | Pipe | 844720 | 1 | |
| 18 | Hollow screw | 74033 | 6 | |
| 19 | Gasket | 957171 | 15 | |
| 20 | Leak-off pipe | 424202 | 1 | D42A PP spec. 16053, 867638., Late type |
| 21 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 22 | Injector | 870989 | 6 | |
| 23 | Stud | 941928 | 12 | |
| 24 | Nut | 417110 | 12 | |
| 25 | Overflow valve | 35096 | 2 | |
| 26 | Gasket | 957178 | 7 | |
| 27 | Fuel filter kit | 243405 | 1 | |
| 28 | Bracket | 845319 | 1 | (836365) |
| 29 | Hexagon screw | 940134 | 2 | |
| 30 | Spring washer | 941909 | 2 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 31 | Hexagon screw | 940115 | 2 | |
| 32 | Spring washer | 942336 | 2 | |
| 33 | Fuel pipe | 837106 | 1 | |
| 34 | Fuel pipe | 837107 | 1 | |
| 35 | Hollow screw | 26013 | 2 | AQ115A MOXXXX/86909-. |
| 36 | Gasket | 957181 | 4 | |
| 37 | Hollow screw | 25167 | 3 | |
| 38 | Gasket | 957178 | 9 | |
| 39 | Pipe | 836748 | 1 | |
| 40 | Pump companion guard | 822875 | 1 | |
| 41 | Hollow screw | 180211 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 42 | Delivery pipe | 896730 | 1 | |
| 43 | Delivery pipe | 896731 | 1 | |
| 44 | Delivery pipe | 896732 | 1 | |
| 45 | Delivery pipe | 896733 | 1 | |
| 46 | Delivery pipe | 896734 | 1 | |
| 47 | Delivery pipe | 896735 | 1 | |
| 48 | Attaching clamp | 414348 | 2 | |
| 49 | Attaching clamp | 414349 | 2 | |
| 50 | Attaching clamp | 414346 | 2 | |
| 51 | Attaching clamp | 414347 | 2 | |
| 52 | Attaching clamp | 414344 | 4 | |
| 53 | Attaching clamp | 414345 | 4 | |
| 54 | Hexagon screw | 955247 | 6 | |
| 55 | Hexagon screw | 955248 | 2 | |
| 56 | Hexagon nut | 955780 | 4 | |
| 57 | Protecting plate | 824377 | 1 | |
| 58 | Protecting plate | 842153 | 6 | |
| 59 | Protecting sleeve | 836456 | 6 | |
| 60 | Oil feed pipe | 422245 | 1 | |
| 61 | Hollow screw | 48634 | 1 | |
| 62 | Hollow screw | 942081 | 1 | |
| 63 | Gasket | 957173 | 2 | |
| 64 | Gasket | 18666 | 1 | |
| 65 | Gasket | 11994 | 1 | |
| 66 | Return pipe | 422246 | 1 | |
| 67 | Hollow screw | 25167 | 1 | |
| 68 | Hollow screw | 954394 | 1 | |
| 70 | Fuel pipe | 844721 | 1 | MO XXXXX/9820- |
| 71 | Fuel pipe | 837607 | 1 | Replaced by 837363., See group2D |
| 72 | Fuel pipe | 837608 | 1 | Alt |
| 73 | Fuel pipe | 837609 | 1 | Alt |
| 74 | Anchorage | 821625 | 1 | |
| 75 | Clamp | 941492 | 2 | |
| 76 | Anchorage | 821076 | 1 | |
| 77 | Cross recessed screw | 950046 | 2 | |
| 78 | Hexagon nut | 955825 | 2 | Late type |
| 79 | Spring washer | 941906 | 2 | |
| 80 | Clamp | 952625 | 1 | |
| 81 | Hexagon screw | 955550 | 1 | BB170B MOXXXX/89353-., L=51mm |
| 82 | Washer | 955896 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 83 | Hexagon nut | 940157 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 84 | Fuel hose | 845450 | 2 | (880618) |
| 85 | Fitting nut | 956983 | 4 | |
| 86 | Ferrule | 956969 | 4 | |
| 53A | Nut plate | 414736 | 1 |
| Item | Part Name | Part No. |
| 29 | Hexagon screw 940134 | 940134 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D100BRC, TD100ARC D120A D70B D70CHC D70CRC D70CRC, TD70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G-85 TD100GG TD100GG-85 TD100GG-87, TID100KG-87 TD1010G, TWD1010G TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120GG TD121CHC TD121CRC TD45B TD70B TD70CHC TD70CRC TID100K TID100KG |
| Application | Circulation Pump and Thermostat with Installation Components Classed Fuel System, Spec.867108, 867153: A Classed Fuel System, Spec.867108, 867153: B Classed Fuel System: A Classed Fuel System: B Cylinder Block and Related Part: A Cylinder Block and Related Part: B Fan, Fan-and Belt Protection with Inst.components, MO-XXXXX/33071: A Fan, Fan-and Belt Protection with Inst.components, MO-XXXXX/33071: B Flexible Clutch and Installation Components: A Flexible Clutch and Installation Components: B Flexible Clutch and Installation Components: C Fuel System Fuel System, Classed Engine, Spec.867117 FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D Induction-and Exhaust Manifold, Classed Engine Radiator and Fan, Tropic 45°C Radiator and Installation 35 CG , 45 CG: 35°C Radiator and Installation 35 CG , 45 CG: 35CG Radiator and Installation 35 CG , 45 CG: 45°C Radiator and Installation 35 CG , 45 CG: 45CG Radiator and Installation Components Radiator and Installation Components Tropic 45CG: A Radiator and Installation Components Tropic 45CG: B RADIATOR AND INSTALLATION COMPONENTS, SPEC VERSION 45 CG Radiator and Installation Components, Spec Version: A Radiator and Installation Components, Spec Version: B Radiator and Installation Components: A Radiator and Installation Components: B Radiator and Installation Comps. Tropic 45CG Radiator and Installation Comps. Tropic 45CG: A Radiator and Installation Comps. Tropic 45CG: B Radiator and Installation Comps. Tropic 45CG: C Radiator and Installation Comps. Tropic 45CG: D Reduction Gear, Spec.9934 Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Tube Heat Exchanger and Thermostat with Installation Components: A Tube Heat Exchanger and Thermostat with Installation Components: B |
| Specification | |
| Descriptions | Alt MO-XXXXX/98707. |
