Hexagon screw 942338

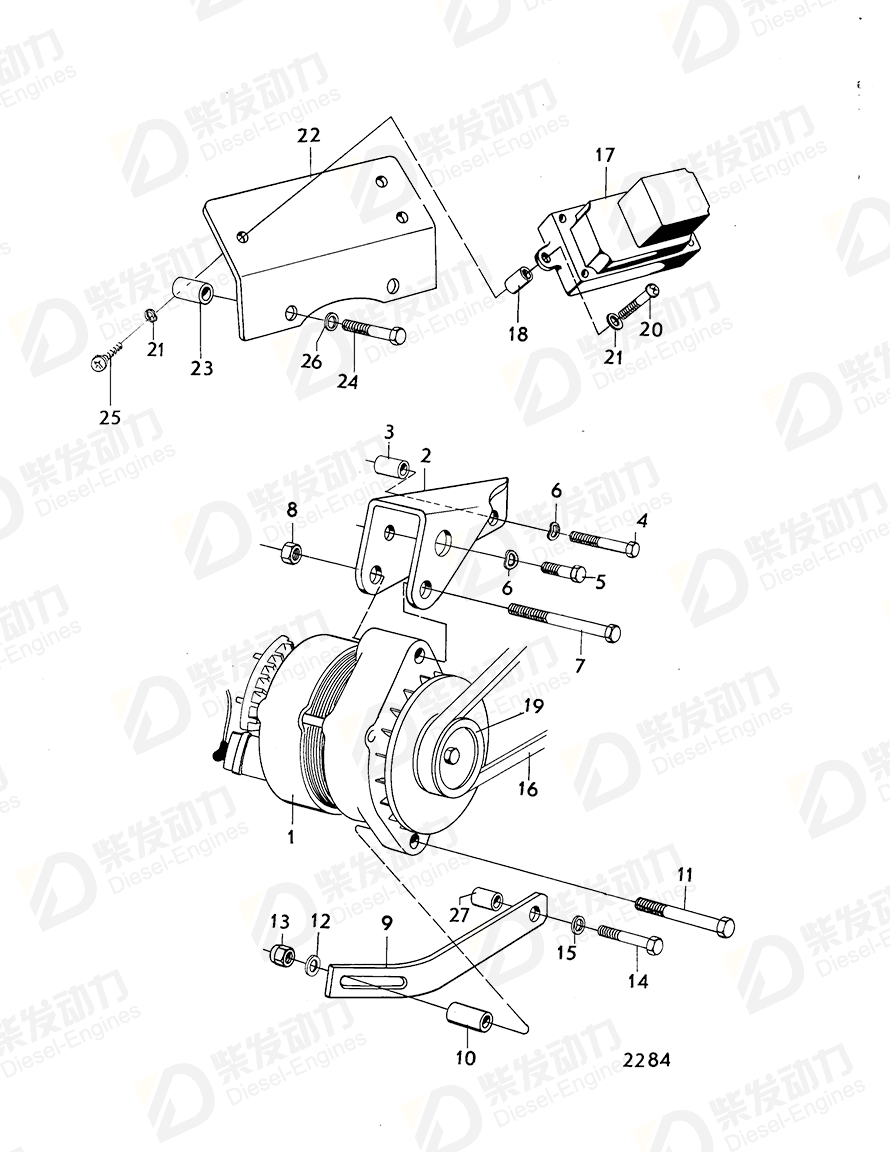

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 827349 | 1 | 28V 25A,later prod |
| 3 | Spacer sleeve | 821540 | 1 | Replaced by 1pc 1578938., L=22mm |
| 4 | Hexagon screw | 942338 | 1 | |
| 5 | Hexagon screw | 955539 | 1 | |
| 6 | Spring washer | 942336 | 2 | |
| 7 | Hexagon screw | 955555 | 1 | L=83mm |
| 8 | Lock nut | 950355 | 1 | |
| 9 | Tensioner | 823298 | 1 | |
| 10 | Spacer sleeve | 821539 | 1 | L=14mm, spec 9762 |
| 11 | Hexagon screw | 955527 | 1 | |
| 12 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 13 | Lock nut | 950353 | 1 | |
| 14 | Hexagon screw | 942338 | 1 | |
| 15 | Spring washer | 942336 | 1 | |
| 16 | V-belt | 958307 | 1 | L=925mm alt |
| 17 | Stop dog | 845972 | 1 | (823480) |
| 18 | Vibration damper | 899709 | 3 | |
| 19 | Pulley | 843248 | 1 | |
| 20 | Cross recessed screw | 956091 | 3 | |
| 21 | Spring washer | 941906 | 6 | |
| 22 | Bracket | 823284 | 1 | |
| 23 | Spacer sleeve | 820506 | 2 | L=9mm |
| 24 | Hexagon screw | 955537 | 2 | |
| 25 | Cross recessed screw | 956092 | 3 | (241793) |
| 26 | Spring washer | 942336 | 3 | |
| 27 | Spacer sleeve | 823575 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| Item | Part Name | Part No. |
| 4 | Hexagon screw 942338 | 942338 |
| Details | |
| Engine model | D120A, TD120A D70B D70CHC D70CHC, D70CRC D70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TD1210G, TWD1210G, TWD1211G TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD1010G, TWD1010G TD120AHC TD120BHC TD120C TD120G TD121CHC TD121G-87, TID121K-87 TD70CHC TD70CHC, TD70CRC TD70CRC TID120FG TID120FPP TID120HPP TID121FG |
| Application | Alternator, High Mounted, Left Side, SN-1101039850/XXXXXX Alternator, High Mounted, SN-1101039850 Alternator, High Mounted, SN1101039851- Belt Guard, SN-2120230579 Electronic Speed Control and Stop Solenoid ELECTRONIC SPEED CONTROL AND STOP SOLENOID TYPE ''AMBAC'' ELECTRONIC SPEED CONTROL AND STOP SOLENOID TYPE AMBAC Electronic Speed Control, Earlier Production Extra Alternator Spec 9921, 9922, Alt Fuel System, Classed Engine, Spec.867117 Fuel System: A Fuel System: B Fuel System: C Fuel System: D Heat Exchanger and Thermostat with Installation Components Heat Exchanger and Thermostat with Installation Components: A Heat Exchanger and Thermostat with Installation Components: B Heat Exchanger and Thermostat with Installation Components: C Induction and Exhaust Manifold with Installation Components Induction-and Exhaust Manifold, Classed Engine INTERCOOLER AND INSTALLATION COMPONENTS Thermostat and Water Pump with Installation Components THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: B THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: TID121FP |
| Specification | |
| Descriptions | (955542) EARLIER PROD L = 114 MM L=114mm REPLACED BY 1 PC 881532,1 ST 881191,1 ST 843401., L = 114 MM STOP SOLENOID ENERGIZED TO RUN, L = 114 MM |
