Hexagon screw 955296

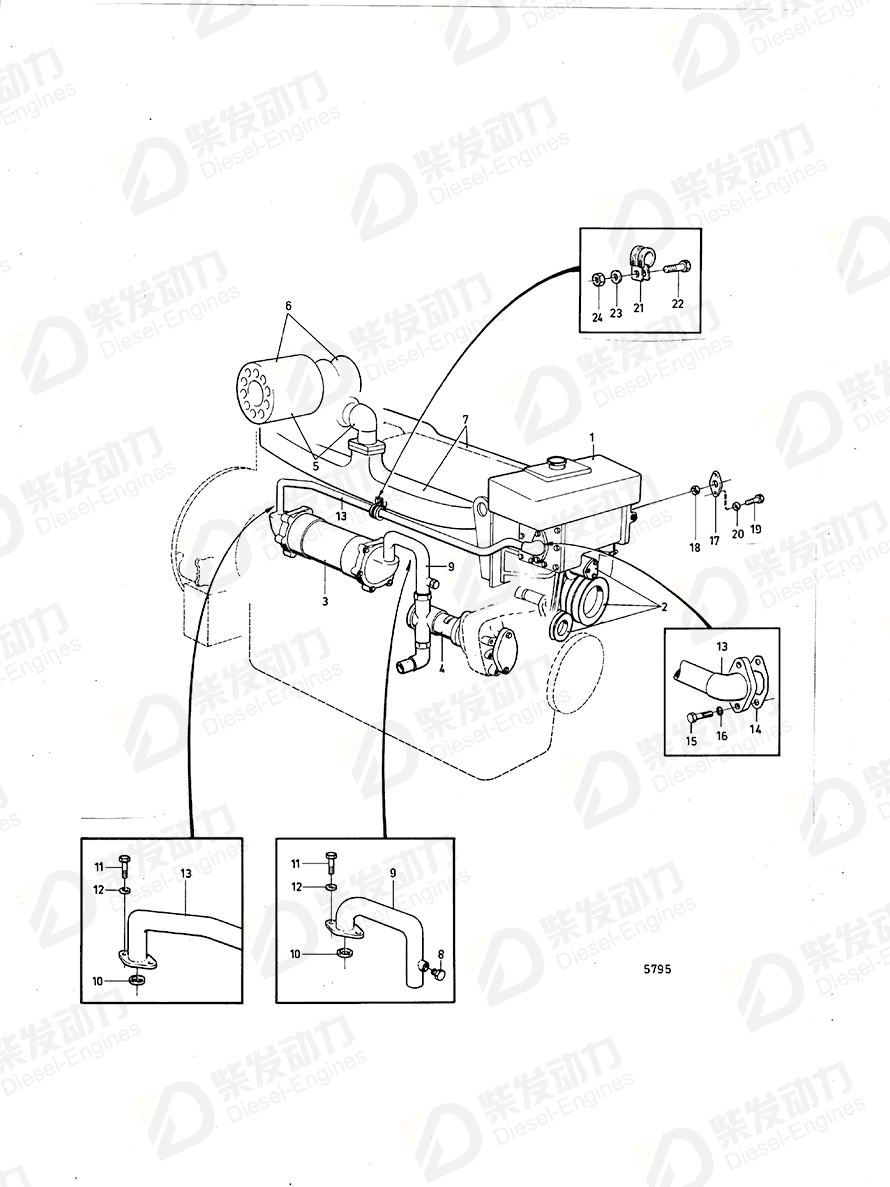

| No. | Part Name | Part Number | Qty | Description |
| 8 | Plug | 192134 | 1 | |
| 9 | Coolant pipe | 843990 | 1 | |
| 10 | Gasket | 836778 | 2 | |
| 11 | Hexagon screw | 940135 | 4 | |
| 12 | Spring washer | 941907 | 4 | |
| 13 | Coolant pipe | 843942 | 1 | |
| 14 | Gasket | 862703 | 1 | (800389) |
| 15 | Hexagon screw | 955296 | 2 | |
| 16 | Spring washer | 941907 | 2 | |
| 17 | Flange | 836754 | 1 | |
| 18 | Gasket | 836778 | 1 | |
| 19 | Hexagon screw | 940135 | 2 | |
| 20 | Spring washer | 941907 | 2 | |
| 21 | Clamp | 943717 | 2 | |
| 22 | Hexagon screw | 940100 | 2 | |
| 23 | Spring washer | 941906 | 2 | |
| 24 | Hexagon nut | 955825 | 2 | Late type |
| Item | Part Name | Part No. |
| 15 | Hexagon screw 955296 | 955296 |
| Details | |
| Engine model | D70CHC TD1030ME TD120HPP TD121G TD121G-87, TWD1230VE, TWD1231VE TD121GG TD70CHC TID120FG TID120FPP TID120HPP TID121FG TWD1031VE TWD1230ME |
| Application | Air Compressor Cooling System with Plate Heat Exch., Induction and Exh. Manifold: A Cooling System with Plate Heat Exch., Induction and Exh. Manifold: B INTERCOOLER AND INSTALLATION COMPONENTS Lubricating System, 40° Inclination RADIATOR AND FAN WITH FAN COVER AND INSTALLATION COMPONENTS Radiator and Fan with Fan Cover and Installation Components: A Radiator and Fan with Fan Cover and Installation Components: B RADIATOR AND FAN WITH INSTALLATION COMPONENTS |
| Specification | |
| Descriptions | L = 22 MM L=22mm YELLOW |
