Hexagon screw 955528

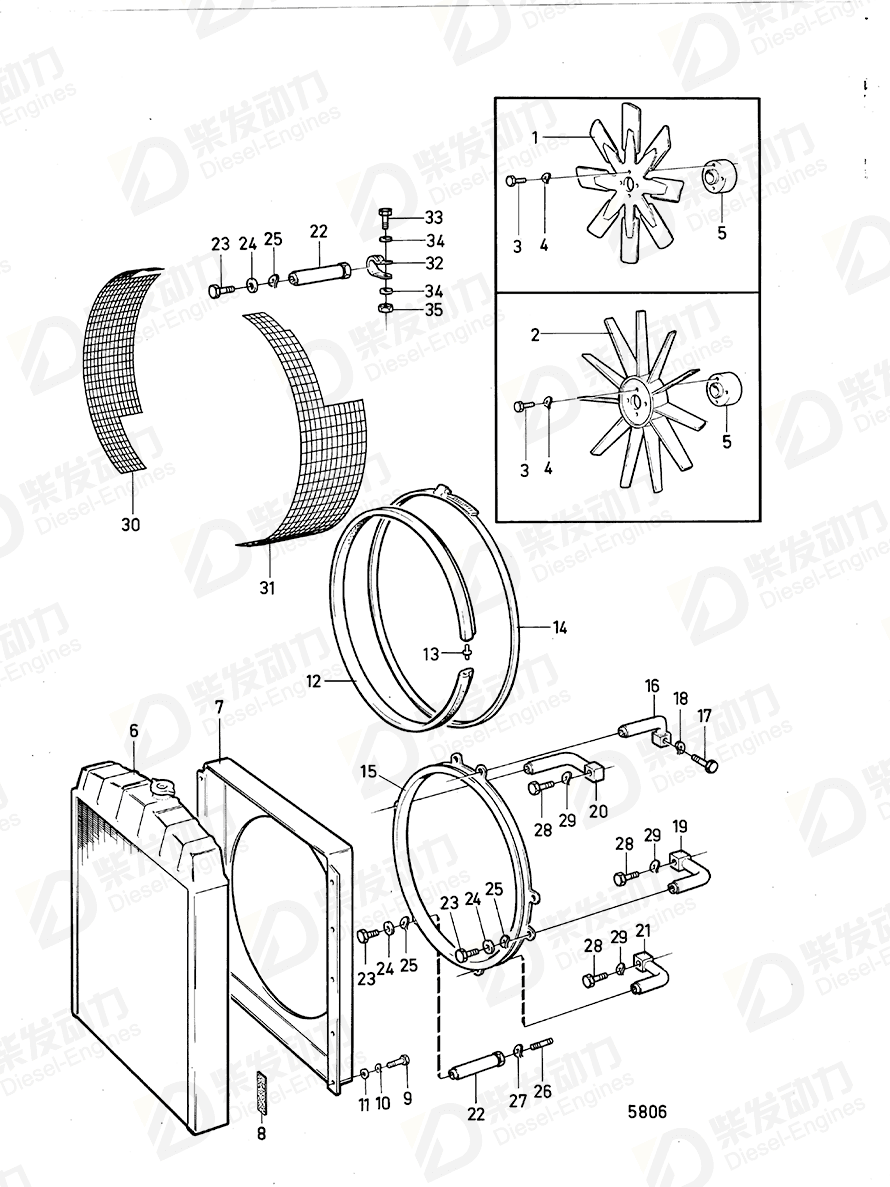

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan | 843517 | 1 | Åkerman spec. 867454., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867061, 867063, 867277. TD70B spec. 867065. D70B spec. 867059, 867260 alt. D70BK alt., D=620mm |
| 2 | Fan | 843563 | 1 | Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 3 | Hexagon screw | 940186 | 4 | |
| 4 | Spring washer | 941907 | 4 | |
| 5 | Spacer ring | 843839 | 1 | |
| 7 | Fan shroud | 843641 | 1 | (837284) |
| 8 | Sealing strip | 821707 | 2 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 9 | Hexagon screw | 955524 | 10 | Used on crankshaft 829999. |
| 10 | Spring washer | 941907 | 10 | |
| 11 | Washer | 899990 | 10 | |
| 12 | Sealing strip | 837300 | 1 | |
| 13 | Connector | 475450 | 1 | |
| 14 | Hose clamp | 947467 | 1 | |
| 15 | Fan ring | 843694 | 1 | |
| 16 | Anchorage | 842735 | 1 | Classified engine |
| 17 | Hexagon screw | 955538 | 1 | |
| 18 | Spring washer | 942336 | 1 | |
| 19 | Anchorage | 843404 | 1 | |
| 20 | Anchorage | 845531 | 1 | (843405) |
| 21 | Anchorage | 846464 | 1 | (843702) early type |
| 22 | Anchorage | 843406 | 1 | Alt |
| 23 | Hexagon screw | 940113 | 5 | |
| 24 | Washer | 960141 | 5 | |
| 25 | Spring washer | 941907 | 5 | |
| 26 | Stud | 953241 | 1 | |
| 27 | Spring washer | 941907 | 1 | |
| 28 | Hexagon screw | 955528 | 2 | |
| 28 | Hexagon screw | 955530 | 1 | |
| 29 | Spring washer | 941907 | 3 | |
| 30 | Safety net | 847500 | 1 | (843010) alt |
| 31 | Safety net | 847499 | 1 | (843011) alt |
| 32 | Clamp | 945081 | 12 | |
| 33 | Cross recessed screw | 956094 | 12 | |
| 34 | Washer | 192404 | 24 | |
| 35 | Hexagon nut | 955781 | 12 |
| Item | Part Name | Part No. |
| 28 | Hexagon screw 955528 | 955528 |
| Details | |
| Engine model | D100A D100B D120A D70B D70CHC, D70CRC D70CRC, TD70CRC TAD120BHC TAD120CHC TAD121CHC TD100A TD100G TD100G-85 TD100G-87 TD1010G, TWD1010G TD1030ME TD120A TD60A TD60B TD60D TD60D-83 TD61A, TD61AW TD70B TD70G TD70G-83 TD71A, TD71AW TID100K TID60D TID60D, TID60DG TID70G TID71A TWD1031VE |
| Application | Air Compressor &TUFLO 500 and Installation Components Air Compressor 15.5W31 and Installation Components AIR COMPRESSOR AND INSTALLATION COMPONENTS Air Compressor and Installation Components: A Air Compressor and Installation Components: B Air Compressor and Installation Components: C Air Compressor TUFLO 500 AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: A AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: B Air Compressor TUFLO 700 and Installation Components AIR COMPRESSOR TUFLO 700 AND INSTALLATION COMPONENTS: A AIR COMPRESSOR TUFLO 700 AND INSTALLATION COMPONENTS: B Air Compressor, TUFLO 500 and Installation Components Air Compressor, TUFLO 500 and Installation Components: A Air Compressor, TUFLO 500 and Installation Components: B Air Compressor, TUFLO 500 and Installation Components: C Air Compressor, TUFLO 500 and Installation Components: TID100K87 Fan, Fan- and Belt Protection with Installation Comp., Early Pr Fan, Fan- and Belt Protection with Installation Components: A Fan, Fan- and Belt Protection with Installation Components: C Fan, Fan-and Belt Protection with Inst.components, MO-XXXXX/33071: A Fan-and Belt Protection with Installation COMP.MOXXXXX/33072-: A Housing Induction and Exhaust Manifold with Installation Components INDUCTION MANIFOLD AND INSTALLATION COMPONENTS INDUCTION MANIFOLD WITH INSTALLATION COMPONENTS: A INDUCTION MANIFOLD WITH INSTALLATION COMPONENTS: B Induction-and Exhaust Manifold Induction-and Exhaust Manifold, Classed Engine Induction-and Exhaust Manifold: A Induction-and Exhaust Manifold: B Lubricating System, 40° Inclination Oil Pump Oil Pump, Components Oil Pump, Components: 1545119 Oil Pump, Components: 479319 Radiator with Installation Components Starting Element and Installation Components Starting Heater and Installation Components |
| Specification | |
| Descriptions | Classified engine, L=70mm D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867259, 867260. TD7B spec. 867065. D70BK alt. For engine with 40° angle of inclination, L=70mm L = 70 MM L=70mm Spec. 867117., L=70mm Spec. 867132 alt, D70BK alt. |
