Hexagon screw 955534

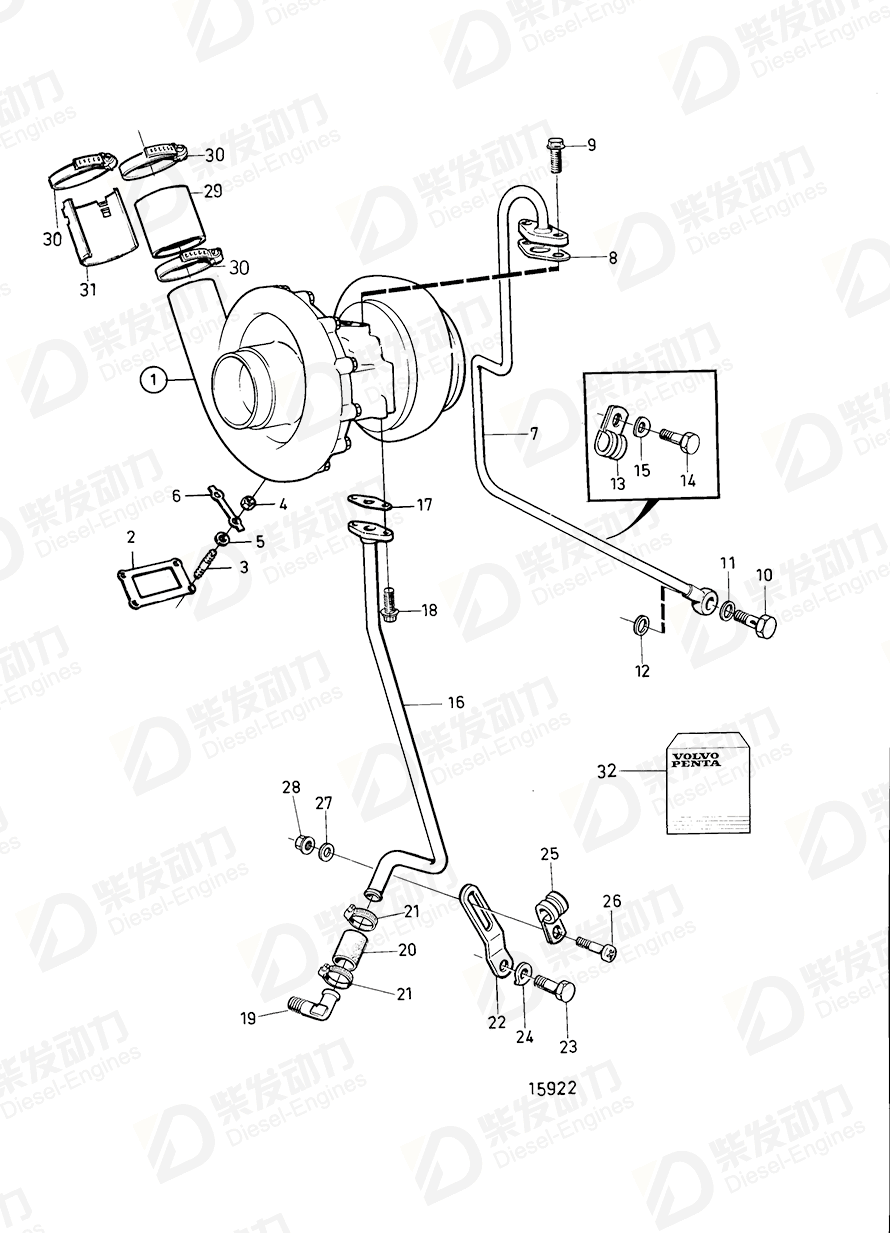

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802066 | 1 | E.U=3803135, (863501) |
| 2 | Gasket | 470939 | 1 | Included in gasket kit for connecting of turbocharger. |
| 3 | Stud | 468891 | 4 | |
| 4 | Flange lock nut | 8194568 | 4 | |
| 5 | Spacer sleeve | 470467 | 4 | |
| 6 | Lock washer | 468219 | 4 | |
| 7 | Oil feed pipe | 470659 | 1 | |
| 8 | Plane gasket | 420641 | 1 | |
| 9 | Flange screw | 946173 | 2 | |
| 10 | Hollow screw | 942007 | 1 | (954394) |
| 11 | Gasket | 11998 | 1 | |
| 12 | Gasket | 942703 | 1 | |
| 13 | Clamp | 949746 | 1 | |
| 14 | Hexagon screw | 955534 | 1 | |
| 15 | Spring washer | 942336 | 1 | |
| 16 | Return pipe | 1545084 | 1 | For low-mounted turbo. |
| 17 | Plane gasket | 420643 | 1 | |
| 18 | Flange screw | 946173 | 2 | |
| 19 | Elbow nipple | 479959 | 1 | |
| 20 | Hose | 466328 | 1 | |
| 21 | Hose clamp | 943474 | 2 | |
| 22 | Bracket | 414692 | 1 | MOXXXXX/109942- |
| 23 | Hexagon screw | 955534 | 1 | |
| 24 | Spring washer | 942336 | 1 | |
| 25 | Clamp | 952632 | 1 | Late type |
| 26 | Cross recessed screw | 950046 | 1 | |
| 27 | Washer | 955893 | 1 | |
| 28 | Hexagon nut | 955825 | 1 | Late type |
| 29 | Hose | 470327 | 1 | |
| 30 | Hose clamp | 1544731 | 2 | For THD102KB, THD102KD |
| 31 | Heat shield | 467650 | 1 | For low-mounted turbo. |
| 32 | Gasket kit, turbo connect. | 876319 | 1 | Repl by 876352 |
| Item | Part Name | Part No. |
| 14 | Hexagon screw 955534 | 955534 |
| Details | |
| Engine model | D100A, D100B D100B D100BHC, TD100AHC D120A D120A, TD120A D70B D70CHC D70CRC DH10A TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V, TWD1031VE TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD100A TD100ARC TD100CHC TD1010G, TWD1010G TD120A TD120AHC TD120AHC, TD120ARC, TAD120AHC, TAD120BHC TD120BHC TD120C TD120G TD120G, TD120GG TD120GG TD120HPP TD1210G TD121CHC TD121G TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V TD121GG TD121GG-86 TD121GP-87 TD45B TD60A TD60B TD60D TD60D-83 TD70B TD70CHC TD70CRC TD70G TD70G-83 TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KPB-87 TID121L-87, TID121LG, TID121LG-87, TID121LGP-87, TID121LP, TID121LP-87 TID60D TID60DG TID70G TWD1030ME TWD1031VE TWD1210G TWD1210P, TWD1211P, TWD1211G TWD1211G TWD1230ME TWD1230VE TWD1231VE |
| Application | Agglomerator and Installation Components Agglomerator and Sedimenter with Installation Components Alternator and Installation Components, MO-XXXXX/30307: B Belt Guard Belt Guard, SN2100277341-2100281207 Belt Guard, SN2100277341-: SN-2100309241 Belt Guard, SN2100277341-: SN2100309242- Belt Guard, SN2100281208- Belt Guard, SN2120230580- CIRCULATION PUMP AND DRIVE DEVICE WITH INSTALLATION COMPONENTS Circulation Pump and Drive Device with Installation Components: A Circulation Pump and Drive Device with Installation Components: B Circulation Pump and Drive Device with Installation Components: C Control Valve for Differential Lock&sen &Utf Cylinder Block and Related Parts Cylinder Block and Related Parts: A Cylinder Block and Related Parts: B Electrical System, Classed Engine Electrical System, SN1201090022- Electrical System: A Electrical System: B Electrical System: C Electrical System: D Fuel System FUEL SYSTEM: A FUEL SYSTEM: B MANUAL SPEED CONTROL Manual Speed Control Earlier Prod Manual Speed Control Earlier Prod: A Manual Speed Control Earlier Prod: B Radiator and Fan with Installation Components Stop Solenoid and Installation Components Turbo and Installation Components Turbo and Installation Components: A Turbo and Installation Components: B Turbo and Installation Components: C Turbo and Installation Components: TD120HP86 TURBO AND INSTALLATION COMPONENTS: TID121FP Turbo, High Mounted SN-2120147401 Turbo, High Mounted SN2120147402- Turbo, High Mounted SNXXXXXXXXXX/147402-, SN-XXXXXXXXXX/238056 Turbocharger Turbocharger, High Mounted Turbocharger, Low Mounted Turbocharger, Low Mounted: A Turbocharger, Low Mounted: B Turbocharger: A Turbocharger: B |
| Specification | |
| Descriptions | ALT D42A PP spec. 16053, 867638., L=19mm For engine with water cold exhaust manifold. For governor 225-1200. L=19mm L=19mm, spec 867295 Replaced by 1 PC 881532,1 ST 881191,1 ST 843401. |
