Hexagon screw 955536

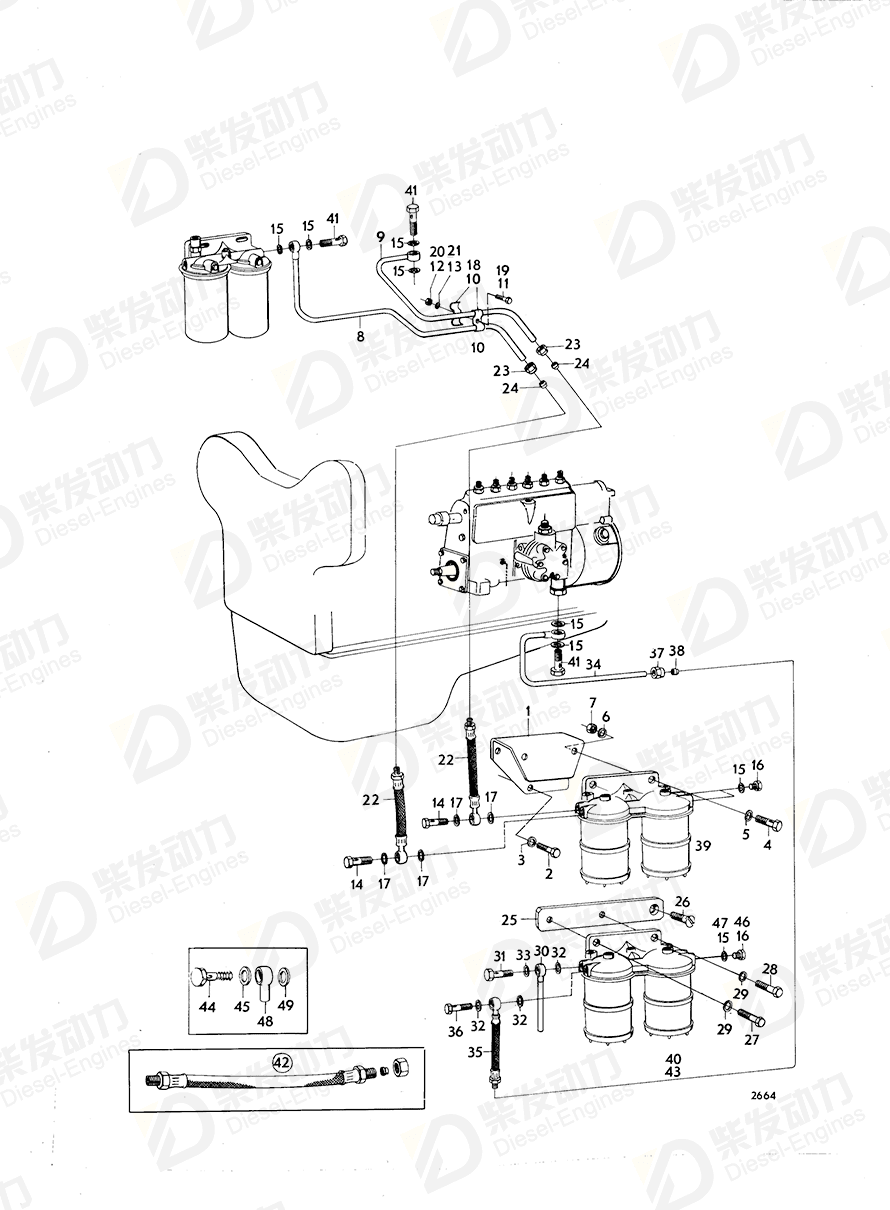

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 822879 | 1 | |
| 2 | Hexagon screw | 955559 | 1 | L = 22 MM LATE TYPE |
| 2 | Hexagon screw | 955565 | 1 | Temporary production., L=57mm |
| 2 | Hexagon screw | 955567 | 1 | For governor 225-1200. |
| 3 | Spring washer | 940280 | 3 | |
| 4 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 5 | Washer | 940097 | 2 | |
| 6 | Spring washer | 942336 | 2 | |
| 7 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 8 | Fuel pipe | 823654 | 1 | |
| 9 | Fuel pipe | 823655 | 1 | |
| 10 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 11 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 12 | Hexagon nut | 955825 | 1 | Late type |
| 13 | Spring washer | 941906 | 1 | |
| 14 | Hollow screw | 818435 | 2 | For governor 225-1200. |
| 15 | Gasket | 957178 | 6 | |
| 16 | Plug | 191084 | 1 | For governor 225-1200 |
| 17 | Gasket | 957176 | 4 | For governor 225-1200. |
| 18 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 19 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 20 | Hexagon nut | 955825 | 1 | Late type |
| 21 | Spring washer | 941906 | 1 | |
| 22 | Fuel hose | 823625 | 2 | For governor 225-1200 |
| 23 | Fitting nut | 956983 | 2 | |
| 24 | Ferrule | 956969 | 2 | |
| 27 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 28 | Hexagon screw | 955537 | 1 | |
| 29 | Washer | 940097 | 2 | |
| 30 | Fuel pipe | 823546 | 1 | For governor 225-1200 |
| 31 | Hollow screw | 62260 | 1 | For governor 225-1200 |
| 32 | Gasket | 957176 | 3 | For governor 225-1200. |
| 33 | Gasket | 957179 | 1 | For governor 225-1200. |
| 34 | Fuel pipe | 823988 | 1 | |
| 35 | Fuel hose | 823625 | 1 | For governor 225-1200 |
| 36 | Hollow screw | 818435 | 1 | For governor 225-1200. |
| 37 | Fitting nut | 956983 | 1 | |
| 38 | Ferrule | 956969 | 1 | |
| 39 | Fuel filter | 821092 | 1 | For governor 225-1200., Agglomerator |
| 41 | Hollow screw | 25167 | 3 | |
| 42 | Fuel hose | 845450 | 1 | (880618) |
| 44 | Hollow screw | 62260 | 2 | For governor 225-1200 |
| 45 | Gasket | 957179 | 2 | For governor 225-1200. |
| 46 | Plug | 191084 | 1 | For governor 225-1200 |
| 47 | Gasket | 957178 | 1 | |
| 48 | Banjo nipple | 942688 | 2 | Alt |
| 49 | Gasket | 957176 | 2 | For governor 225-1200. |
| Item | Part Name | Part No. |
| 4 | Hexagon screw 955536 | 955536 |
| Details | |
| Engine model | D100A D100A, D100B D100B D100B, TD100A D100BRC, TD100ARC D120A D120A, TD120A D70B D70B, TD70B D70CHC D70CHC, D70CRC, TD70CHC, TD70CRC TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G TAD1230G, TAD1231GE, TAD1232GE TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE TAD1230P TAD1230V TAD1232GE TD100A TD100CHC TD100CRC TD100G, TD100G-85 TD100G, TD100G-85, TD100GG, TD100GG-85, TID100K, TID100KG TD100G, TD100HP-87, TID100K TD100G-85 TD100G-87 TD100G-87, TD100GG-87, TID100K-87, TID100KG-87 TD100GG-85 TD100GG-87 TD100GP-85 TD100HP-87 TD1010G, TWD1010G TD1030ME, TWD1030ME TD1030VE, TAD1030V, TWD1031VE TD1030VE, TWD1031VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120G, TD120GG TD120GG TD120HP-86 TD120HP-86, TD121G, TID121K, TID121L-87 TD120HPP TD1210G TD1210G, TWD1210G, TWD1211G TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TD121CHC TD121CRC TD121G TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87 TD121G, TD121G-87, TID121K, TID121K-87 TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE TD121G-87, TWD1210V, TWD1211V, TWD1230VE, TWD1231VE TD121G-87, TWD1231VE TD121GG TD121GG, TD121GG-86, TD121GG-87, TD121GGP-87 TD121GG-86 TD121GG-87 TD121GGP-87 TD121GGP-87, TID121KGP, TID121LGP-87 TD121GP-87 TD121GP-87, TWD1211P TD121GPB-87 TD45B TD60D TD70B TD70CHC TD70G TD70G-83 TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KP-87 TID120FG TID120FPP TID120HPP TID121FG TID121K TID121K, TID121KG, TID121KG-87, TID121LG, TID121LG-87 TID121K, TID121KG, TID121KP TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TID121K-87 TID121KG TID121KG-87 TID121KGP TID121KP TID121KP-87 TID121KP-87, TID121KPB-87 TID121KPB-87 TID121L-87 TID121LG TID121LG-87 TID121LGP-87 TID121LP TID121LP-87 TID121LP-87, TID121LPB-87 TID121LPB-87 TID60D TID70G TWD1030ME TWD1210G TWD1210P TWD1210P, TWD1211P TWD1210V TWD1210V, TWD1211V, TAD1230V TWD1211G TWD1211P TWD1211V TWD1230ME TWD1230VE TWD1230VE, TWD1231VE TWD1231VE |
| Application | Agglomerator and Installation Components Agglomerator and Sedimenter with Installation Components Alternator 1578140 and Installation Components Alt Alternator and Installation Components, MO-XXXXX/30307: A Alternator and Installation Components, MO-XXXXX/30307: B Alternator and Installation Components, MO-XXXXX/30307: C Alternator Twin Mounted Alternator, Double Mounted Alternator, Low Mounted Right Side ALTERNATOR, LOW MOUNTED RIGHT SIDE: B ALTERNATOR, LOW MOUNTED RIGHT SIDE: TID121FP Alternator, Low-Right Mounted Alternator, Low-Right Mounted: A Alternator, Low-Right Mounted: B Alternator, Low-Right Mounting, Earlier Prod Alternator, Low-Right Mounting, Earlier Prod: A Alternator, Low-Right Mounting, Earlier Prod: B Alternator, Low-Right Mounting, Earlier Prod: C Alternator, Twin Mounted Alternator, Twin, Low L/R, SN-XXXXXXXXXX/268616 Belt Guard, SN-2100277340 Belt Tensioner Device, Late Design: B Belt Tensioner Device, Late Design: TD121G -87 Belt Transmission and Belt Tensioner Device: A Belt Transmission and Belt Tensioner Device: B Charging Relay and Installation Components Circulation Pump and Drive Device with Installation Components Circulation Pump and Drive Device with Installation Components: A Circulation Pump and Drive Device with Installation Components: B Circulation Pump and Drive Device with Installation Components: C Clutch with Installation Components Clutch with Installation Components: A Clutch with Installation Components: B Controls, MOXXXXX/3970: A Controls, MOXXXXX/3970: B Electrical System and Instrument ELECTRICAL SYSTEM AND INSTRUMENTS ELECTRICAL SYSTEM AND INSTRUMENTS: B ELECTRICAL SYSTEM AND INSTRUMENTS: TID121FP Electronic Speed Control and Stop Solenoid ELECTRONIC SPEED CONTROL AND STOP SOLENOID TYPE ''AMBAC'' Electronic Speed Control and Stop Solenoid Type AMBAC Exhaust Pipe and Installation Components Extra Electrical Equipment FAN, FAN- AND BELT PROTECTION WITH INSTALLATION COMPONENTS Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump and Fuel Filter: A Fuel Injection Pump and Fuel Filter: B Fuel Injection Pump and Fuel Filter: C Fuel System Fuel System MO-46196/XXXXX: A Fuel System MO-46196/XXXXX: B Fuel System MO46197/XXXXX-: A Fuel System MO46197/XXXXX-: B Fuel System, Classed Engine, Spec.867053, MO-46196/XXXXX Fuel System: A Fuel System: B Fuel System: C Fuel System: D FUEL SYSTEM: TID121FP Gear Box R60 and Installation Components Alt: 254454 Gear Box R60 and Installation Components Alt: 254458 Heat Exchanger and Thermostat with Installation Components Heat Exchanger and Thermostat with Installation Components: A Heat Exchanger and Thermostat with Installation Components: B Heat Exchanger and Thermostat with Installation Components: C Induction- and Exhaust Manifold Induction- and Exhaust Manifold: A Induction- and Exhaust Manifold: B Induction- and Exhaust Manifold: C INDUCTION-AND EXHAUST MANIFOLD INDUCTION-AND EXHAUST MANIFOLD: A INDUCTION-AND EXHAUST MANIFOLD: B INDUCTION-AND EXHAUST MANIFOLD: TID121FP Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: C Injection Pump, Fuel Filter and Shut-off Valve Oil Bilge Pump and Installation Components Oil Filter and Installation Components Oil Sump Pump and Installation Components Oil Sump Pump and Installation Components: A Oil Sump Pump and Installation Components: B RADIATOR AND FAN WITH FAN COVER AND INSTALLATION COMPONENTS Radiator and Fan with Fan Cover and Installation Components: A Radiator and Fan with Fan Cover and Installation Components: B RADIATOR AND FAN WITH INSTALLATION COMPONENTS Radiator and Fan, 35°C Radiator and Fan, Earlier Prod. Radiator and Fan, Later Prod.: A Radiator and Fan, Later Prod.: senare utförande Radiator and Fan, Mobile Application Radiator and Installation 35 CG , 45 CG: 35°C Radiator and Installation 35 CG , 45 CG: 35CG Radiator and Installation 35 CG , 45 CG: 45°C Radiator and Installation 35 CG , 45 CG: 45CG Radiator and Installation Components Radiator and Installation Components 35CG: A Radiator and Installation Components 35CG: B Radiator and Installation Components 35CG: C Radiator and Installation Components 35CG: TD100HPB87 RADIATOR AND INSTALLATION COMPONENTS, SPEC VERSION 45 CG Radiator and Installation Components, Spec Version: A Radiator and Installation Components, Spec Version: B RADIATOR AND INSTALLATION COMPONENTS, STD 35 CG Radiator and Installation Components, Std: A Radiator and Installation Components, Std: B Radiator and Installation Components, Std: C Radiator and Installation Components: A Radiator and Installation Components: B Stop Solenoid 24V, Energized to Run Stop Solenoid 24V, Energized to Run. Later Prod. Stop Solenoid 24V, Energized to Stop. Stop Solenoid 24V,Energized to Run. Time Relay Kit Stop Solenoid 24V,Energized to Stop.time Relay Kit Stop Solenoid and Installation Components: A Stop Solenoid and Installation Components: B Stop Solenoid and Installation Components: C Stop Solenoid for Electronic Speed Control Type Ambac AGB 250 Stop Solenoid with Installation Components Sump Pump and Installation Components: A Sump Pump and Installation Components: B Sump Pump and Installation Components: C Thermostat and Water Pump with Installation Components Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Thermostat and Water Pump with Installation Components: C Thermostat and Water Pump with Installation Components: D THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: TID121FP Timing Gear Casing and Gears TIMING GEAR CASING AND TIMING GEARS Timing Gear Housing Tube Heat Exchanger and Thermostat with Installation Components: A Tube Heat Exchanger and Thermostat with Installation Components: B Water Pump and Thermostat Housing Water Pump and Thermostat Housing, Earlier Prod. Water Pump and Thermostat Housing, Later Prod.: A Water Pump and Thermostat Housing, Later Prod.: B Water Pump and Thermostat Housing, Later Prod.: C Water Pump and Thermostat SN-XXXXXXXXXX/21158 Water Pump and Thermostat SNXXXXXXXXXX/211549-: A Water Pump and Thermostat SNXXXXXXXXXX/211549-: B Water Pump and Thermostat: A Water Pump and Thermostat: B |
| Specification | |
| Descriptions | 3/8UNCx45 Alt AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type Early type L=45mm For governor 225-1200. L = 45 MM L=45 L=45mm L=45mm, earlier prod Late type REPLACED BY 1 PC 881531,1 ST 881191,1 ST 843401., L = 45 MM See group 2A Spec.version STOP SOLENOID ENERGIZED TO STOP, L = 45 MM Stop solenoid energized to stop, L=45mm Stop solenoid energized to stop., L=45mm |
