Hexagon screw 955544

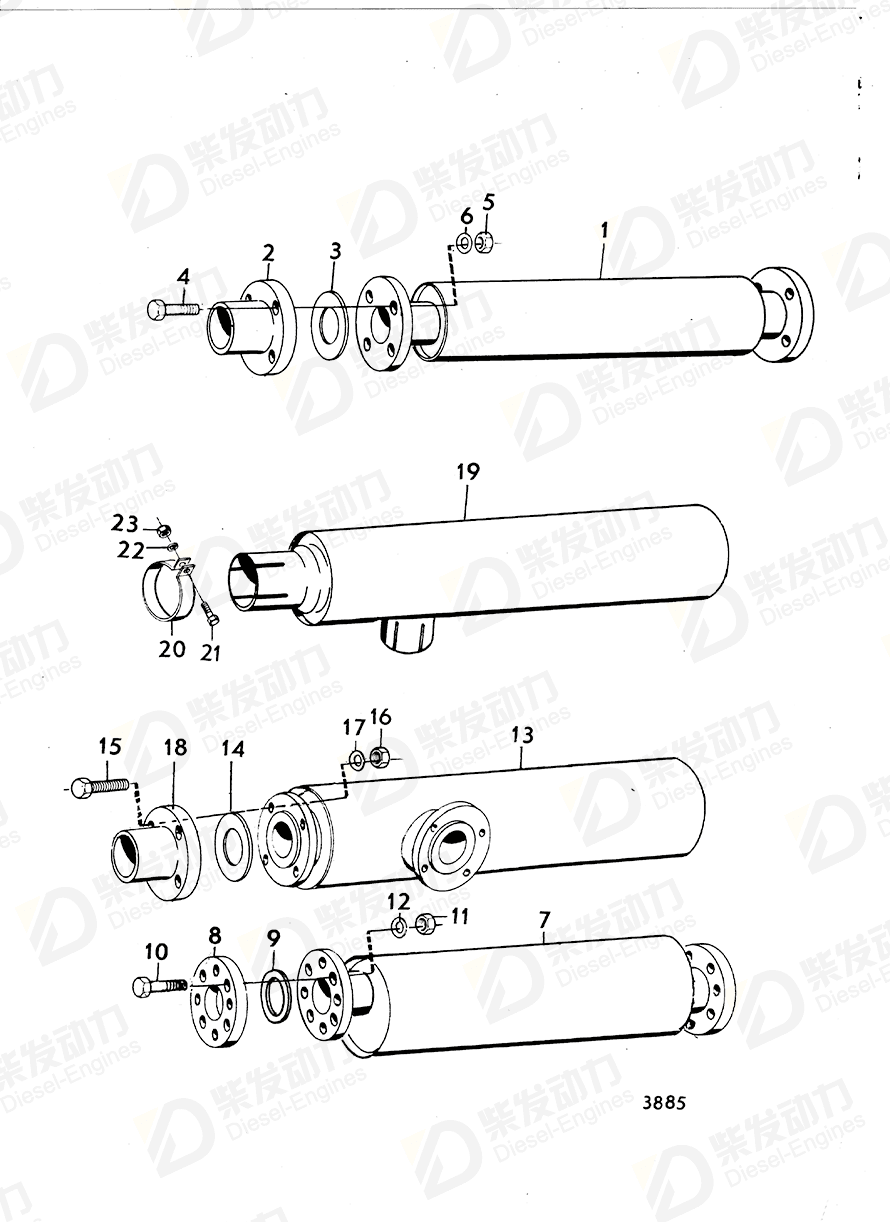

| No. | Part Name | Part Number | Qty | Description |
| 1 | Silencer | 820967 | 1 | TD60D spec.867786 |
| 2 | Flange | 807625 | 2 | |
| 3 | Gasket | 807578 | 2 | |
| 4 | Hexagon screw | 955367 | 8 | |
| 5 | Hexagon nut | 955785 | 8 | |
| 6 | Spring washer | 941912 | 8 | |
| 7 | Silencer | 836257 | 1 | |
| 8 | Weld flange | 842002 | 2 | Spec. 867054, 867057 MO-XXXXX/6621, 867132. D70BK alt |
| 9 | Gasket | 842012 | 2 | Spec. 867054, 867057 MO-XXXXX/6621, 867132. D70BK alt. |
| 10 | Hexagon screw | 955592 | 16 | |
| 11 | Hexagon nut | 955829 | 16 | Pusher type, For tropic radiator |
| 12 | Spring washer | 941912 | 16 | |
| 13 | Silencer | 836978 | 1 | |
| 14 | Gasket | 807578 | 2 | |
| 15 | Hexagon screw | 955592 | 8 | |
| 16 | Hexagon nut | 955829 | 8 | Pusher type, For tropic radiator |
| 17 | Spring washer | 941912 | 8 | |
| 18 | Flange | 807625 | 2 | |
| 19 | Silencer | 353140 | 1 | Åkerman spec. 867646. |
| 20 | Exhaust pipe clamp | 475499 | 2 | |
| 21 | Hexagon screw | 955544 | 2 | |
| 22 | Washer | 960142 | 4 | Replaced by 1 PC 843512,1 ST 191026. |
| 23 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| Item | Part Name | Part No. |
| 21 | Hexagon screw 955544 | 955544 |
| Details | |
| Engine model | D100A D100B D100BHC D100BHC, TD100AHC D100BRC D120A D120A, TD120A D70B D70CHC, D70CRC DH10A, THD102KD, THD102KB TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD1030V, TWD1031VE TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G-87 TD1010G, TWD1010G TD1030ME, TWD1030ME TD1030VE TD1030VE, TAD1030V, TWD1031VE TD1030VE, TWD1031VE TD120AHC TD120AHC, TAD120AHC, TAD120BHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120G, TD120GG TD120GG TD121CHC TD121CRC TD121G, TID121K TD121G-87 TD121G-87, TID121K-87 TD121G-87, TID121K-87, TID121L-87 TD121GG-87, TD121GP-87, TID121KP-87, TID121LP-87 TD121GP-87, TWD1210P, TWD1211P TD70CHC, TD70CRC TID100KGP-87 TID120FG TWD1210V, TWD1211V TWD1230ME |
| Application | Alternator Alt Low Mounted Left Side Alternator Alt, Low Mounted, Left Side Alternator and Installation Components Alternator, High Mounted, Left Side, SN-1101039850/XXXXXX Alternator, High Mounted, SN-1101039850 Alternator, High Mounted, SN1101039851- Alternator, High Mounting Alternator, High Mounting Left Side, SN 1101039851/XXXXXX- Alternator, Low-Left Mounted BELT PROTECTION AND INSTALLATION COMPONENTS Induction and Exhaust Manifold with Installation Components Induction-and Exhaust Manifold Induction-and Exhaust Manifold, Classed Engine Oil Cooler and Oil Filter Oil Cooler and Oil Filter: A Oil Cooler and Oil Filter: B Oil Cooler Front End Mounted and Installation Components Oil Cooler Front End Mounted and Related Parts Oil Cooler, Front End Mounted and Related Parts Silencer Silencer: A Stop Solenoid 24V, Energized to Run Stop Solenoid 24V, Energized to Run. Later Prod. Stop Solenoid 24V, Energized to Stop. Stop Solenoid 24V, Energized to Stop. Later Prod Stop Solenoid 24V: A Stop Solenoid 24V: B Stop Solenoid with Installation Components Thermostat and Water Pump Thermostat Housing Timing Gear Casing and Gears Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B Timing Gear Casing and Gears: C TIMING GEAR CASING AND TIMING GEAR: A TIMING GEAR CASING AND TIMING GEAR: B TIMING GEAR CASING AND TIMING GEAR: C TIMING GEAR CASING AND TIMING GEAR: D Timing Gear Casing and Timing Gears Timing Gear Casing and Timing Gears: A Timing Gear Casing and Timing Gears: B Timing Gear Housing Water Pump, Thermostat and Fan Bearing |
| Specification | |
| Descriptions | (942338) L = 102 MM L=102mm L=102mm, later prod Spec.867056 |
