Hexagon screw 955550

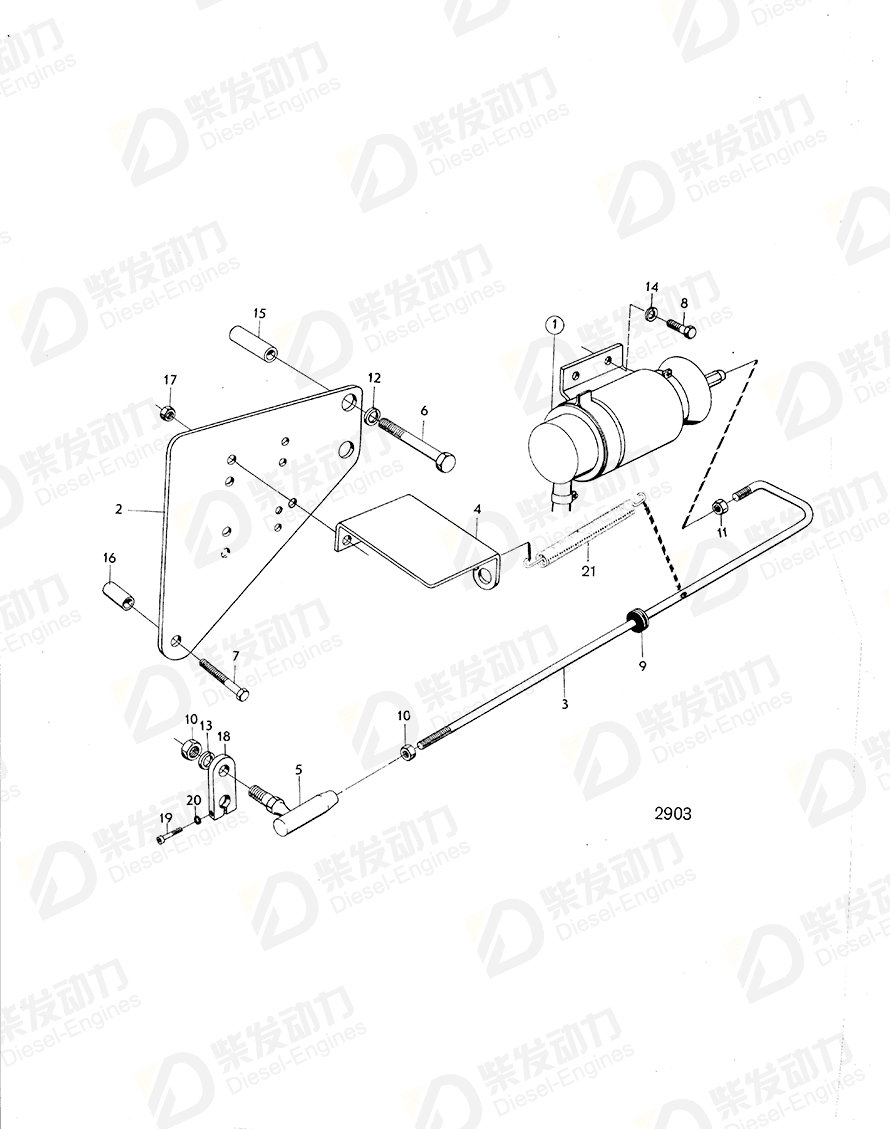

| No. | Part Name | Part Number | Qty | Description |
| 1 | Stop solenoid | 881277 | 1 | Replaced by 1 PC 881531,1 ST 881191,1 ST 843401., 24V early type |
| 1 | Stop solenoid | 881531 | 1 | 12V LATER PROD |
| 1 | Magnet | 881532 | 1 | 24V later prod |
| 2 | Bracket | 830618 | 1 | |
| 3 | Push rod | 830617 | 1 | |
| 4 | Protecting plate | 830619 | 1 | |
| 5 | Ball joint | 10842 | 1 | |
| 6 | Hexagon screw | 955550 | 2 | BB170B MOXXXX/89353-., L=51mm |
| 7 | Hexagon screw | 940158 | 1 | |
| 8 | Hexagon screw | 940135 | 2 | |
| 8 | Hexagon screw | 940161 | 2 | For engine with 40° angle of inclination, L=45mm |
| 8 | Hexagon screw | 940186 | 2 | |
| 8 | Hexagon screw | 955523 | 2 | |
| 9 | Bushing | 663151 | 1 | |
| 10 | Nut | 955856 | 2 | D42A PP spec. 16053, 867638. |
| 11 | Hexagon nut | 955857 | 1 | |
| 12 | Spring washer | 941909 | 2 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 13 | Spring washer | 941906 | 1 | |
| 14 | Spring washer | 941907 | 4 | |
| 15 | Spacer sleeve | 803657 | 2 | |
| 16 | Spacer sleeve | 820508 | 1 | L=28mm |
| 16 | Spacer sleeve | 824205 | 1 | D=17mm |
| 17 | Hexagon nut | 955826 | 4 | |
| 18 | Control arm | 830630 | 1 | |
| 19 | Hex. socket screw | 956542 | 1 | |
| 20 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| Item | Part Name | Part No. |
| 6 | Hexagon screw 955550 | 955550 |
| Details | |
| Engine model | D100A D100B D120A D42A TD100A TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD100GP TD100GP-85 TD100HPB-87 TD1010G, TWD1010G TD1030ME TD1030VE, TWD1031VE TD120A TD120BRC TD120C TD120G TD120G, TD120GG TD120HP-86, TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87, TD121GGP, TD121GGP-87, TD121GP-87, TD121GPB-87, TID121K, TID121KG, TID121KP, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG, TID121LG-87, TID121LG UT-87, TID121LGP, TID121LGP-87, TID121LP, TID121LP-87, TID121LPB-87 TD121CRC TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KPB-87 TID120FG TID121FG TWD1030ME TWD1230ME |
| Application | Classed Fuel System, Spec.867108, 867153: A Classed Fuel System, Spec.867108, 867153: B Crank Mechanism CRANKSHAFT AND RELATED PARTS Crankshaft and Related Parts: A Crankshaft and Related Parts: B Crankshaft and Related Parts: C Crankshaft and Related Parts: TD100GGP-87 Crankshaft and Related Parts: TD100HP87 Crankshaft and Related Parts: TID100KP87 Flywheel Housing Flywheel Housing: A Flywheel Housing: B STOP SOLENOID AND INSTALLATION COMPONENTS. Timing Gear Casing and Gears |
| Specification | |
| Descriptions | (955549) Alt AQ140A MO-7019/XXXX. AQ120B MO-602/XXXX. BB170B MOXXXX/89353-., L=51mm Clark Clark 34000,C5000,C8000 For 843600 Included in 826857., L=51mm |
