Hexagon screw 955588

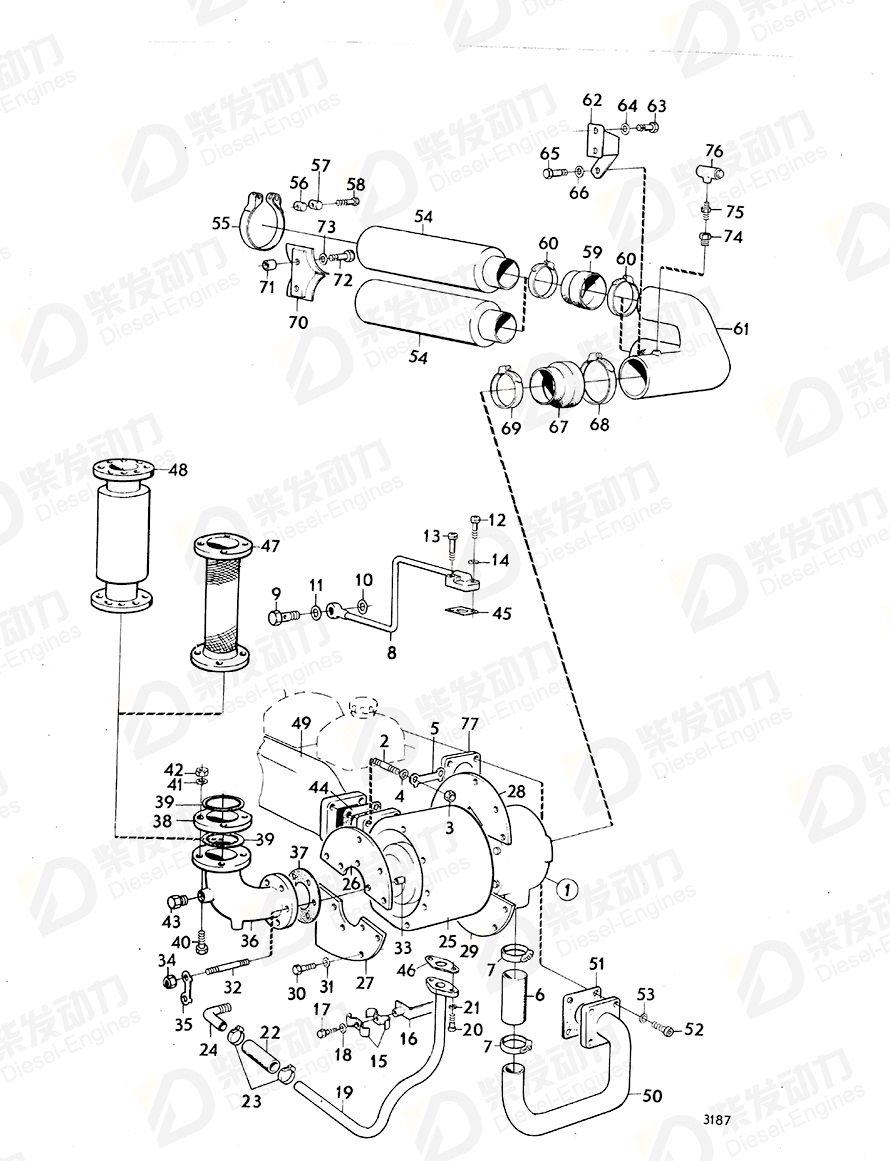

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 842067 | 1 | |
| 1 | Turbocharger, exch | 3802007 | 1 | |
| 2 | Stud | 953261 | 4 | |
| 3 | Nut | 943152 | 4 | |
| 4 | Washer | 940097 | 4 | |
| 5 | Lock washer | 468219 | 2 | |
| 6 | Hose | 944375 | 1 | MO83030/XXXX-., L=3X60mm |
| 7 | Hose clamp | 943482 | 2 | (951798) |
| 8 | Oil pressure pipe | 822571 | 1 | |
| 9 | Hollow screw | 942589 | 1 | |
| 10 | Gasket | 942703 | 1 | |
| 11 | Gasket | 957181 | 1 | |
| 12 | Hex. socket screw | 956584 | 1 | L=25mm |
| 13 | Hex. socket screw | 956585 | 1 | L=32mm |
| 14 | Spring washer | 942336 | 2 | |
| 15 | Clamp | 820851 | 2 | Replaced by 1pc 837555, 1pc 867553, 2pcs 955295, 2pcs 941907, 1pc 837554, 4PCS 924079, 1pc 842378, 1pc 466327, 2pcs 961672, 1pc 837557, 1pc 837556, 1pc 837868, 1pc 837810. |
| 16 | Bracket | 822625 | 1 | |
| 17 | Hexagon screw | 955512 | 1 | |
| 18 | Spring washer | 941906 | 1 | |
| 19 | Oil feed pipe | 822572 | 1 | |
| 20 | Hexagon screw | 940115 | 2 | |
| 21 | Spring washer | 942336 | 2 | |
| 22 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 23 | Hose clamp | 994559 | 2 | |
| 24 | Elbow nipple | 468629 | 1 | TAMD70C,AQD70C. |
| 25 | Heat shield | 823352 | 1 | MO 21083/XXXXX- |
| 26 | Protecting plate | 823241 | 1 | MO 21083/XXXXX- |
| 27 | Protecting plate | 823242 | 1 | MO 21083/XXXXX- |
| 28 | Cover plate | 836324 | 1 | |
| 29 | Cover plate | 836323 | 1 | |
| 30 | Hexagon screw | 940113 | 20 | |
| 31 | Spring washer | 941907 | 20 | |
| 32 | Stud | 953272 | 6 | MO 21083/XXXXX- |
| 33 | Spacer sleeve | 820916 | 6 | MO 21083/XXXXX- |
| 34 | Nut | 943152 | 6 | |
| 35 | Tab washer | 15193 | 3 | |
| 36 | Exhaust pipe elbow | 822594 | 1 | |
| 37 | Gasket | 411710 | 1 | |
| 38 | Weld flange | 836153 | 1 | |
| 39 | Gasket | 807578 | 2 | |
| 40 | Hexagon screw | 955592 | 4 | |
| 41 | Spring washer | 941912 | 4 | |
| 42 | Hexagon nut | 955829 | 4 | Pusher type, For tropic radiator |
| 43 | Plug | 192154 | 2 | MO 21083/XXXXX- |
| 44 | Gasket | 417382 | 1 | |
| 45 | Gasket | 417378 | 1 | |
| 46 | Gasket | 417381 | 1 | |
| 47 | Exhaust hose | 820900 | 1 | |
| 48 | Silencer | 836257 | 1 | |
| 49 | Exhaust pipe | 824128 | 1 | |
| 50 | Pipe | 823704 | 1 | |
| 51 | Gasket | 466271 | 1 | |
| 52 | Hex. socket screw | 956570 | 4 | |
| 53 | Spring washer | 941907 | 4 | |
| 54 | Air filter | 823701 | 2 | Late type |
| 55 | Tensioning band | 821028 | 4 | |
| 56 | Clevis pin, threaded | 31404 | 4 | |
| 57 | Pin | 31405 | 4 | |
| 58 | Hexagon screw | 31406 | 4 | |
| 59 | Rubber fitting | 836334 | 2 | For 804961., D=105mm-113mm |
| 60 | Hose clamp | 943484 | 4 | (951801) |
| 61 | Connecting pipe | 836995 | 1 | |
| 62 | Bracket | 836875 | 1 | |
| 63 | Hexagon screw | 955588 | 2 | |
| 64 | Spring washer | 941912 | 2 | |
| 65 | Hexagon screw | 940113 | 1 | |
| 66 | Spring washer | 941907 | 1 | |
| 67 | Rubber fitting | 837178 | 1 | Late type |
| 68 | Hose clamp | 961907 | 1 | Late type |
| 69 | Hose clamp | 943483 | 1 | (951800) |
| 70 | Bracket | 823808 | 2 | |
| 71 | Spacer sleeve | 820508 | 3 | L=28mm |
| 71 | Spacer sleeve | 821540 | 1 | Replaced by 1pc 1578938., L=22mm |
| 72 | Hexagon screw | 955533 | 4 | For engine with 40° angle of inclination, L=102mm |
| 73 | Spring washer | 941907 | 4 | |
| 74 | Nipple | 823953 | 1 | When oil supervision not is mounted. |
| 75 | Nipple | 191095 | 1 | |
| 76 | Pressure drop indica | 842037 | 1 | |
| 77 | Inlet manifold | 820831 | 1 |
| Item | Part Name | Part No. |
| 63 | Hexagon screw 955588 | 955588 |
| Details | |
| Engine model | D120A, TD120A TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TD1210G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TD1210G TD120A TD120AHC, TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD121CHC TD121CRC TD121G-87, TAD1230V TWD1210G, TWD1211G TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V, TWD1230VE TWD1230ME TWD1230VE TWD1231VE |
| Application | Closed Crankcase Ventilation Connector Box and Fuse Box with Installation Components Electrical System and Instrument ELECTRICAL SYSTEM AND INSTRUMENTS Induction and Exhaust System Induction and Exhaust System: A Induction and Exhaust System: B Induction Manifold and Intercooler Injection Pump, Fuel Filter and EDC Control Unit Inlet Manifold and Installation Components Inlet Manifold with Intercooler, High Mounted Turbo Inlet Manifold with Intercooler, High Mounted Turbo: A Inlet Manifold with Intercooler, High Mounted Turbo: B Inlet Manifold with Intercooler, low mounted Turbo Inlet Manifold with Intercooler, Low Mounted Turbo: A Inlet Manifold with Intercooler, Low Mounted Turbo: B Turbo and Installation Components, Classed Engine |
| Specification | |
| Descriptions | AQ200D MO-11576, AQ225D MO-11736, AQ260A MO-11506, AQ290A MO-12259., AQ200D MO 11577-, AQ225D MO 11737-, AQ260A MO 11507-, AQ290A MO12260-. Replaced by 1pc 846622 flow switch and 1pc 846632 nipple., Acc. to classification. |
