Hexagon screw 959797

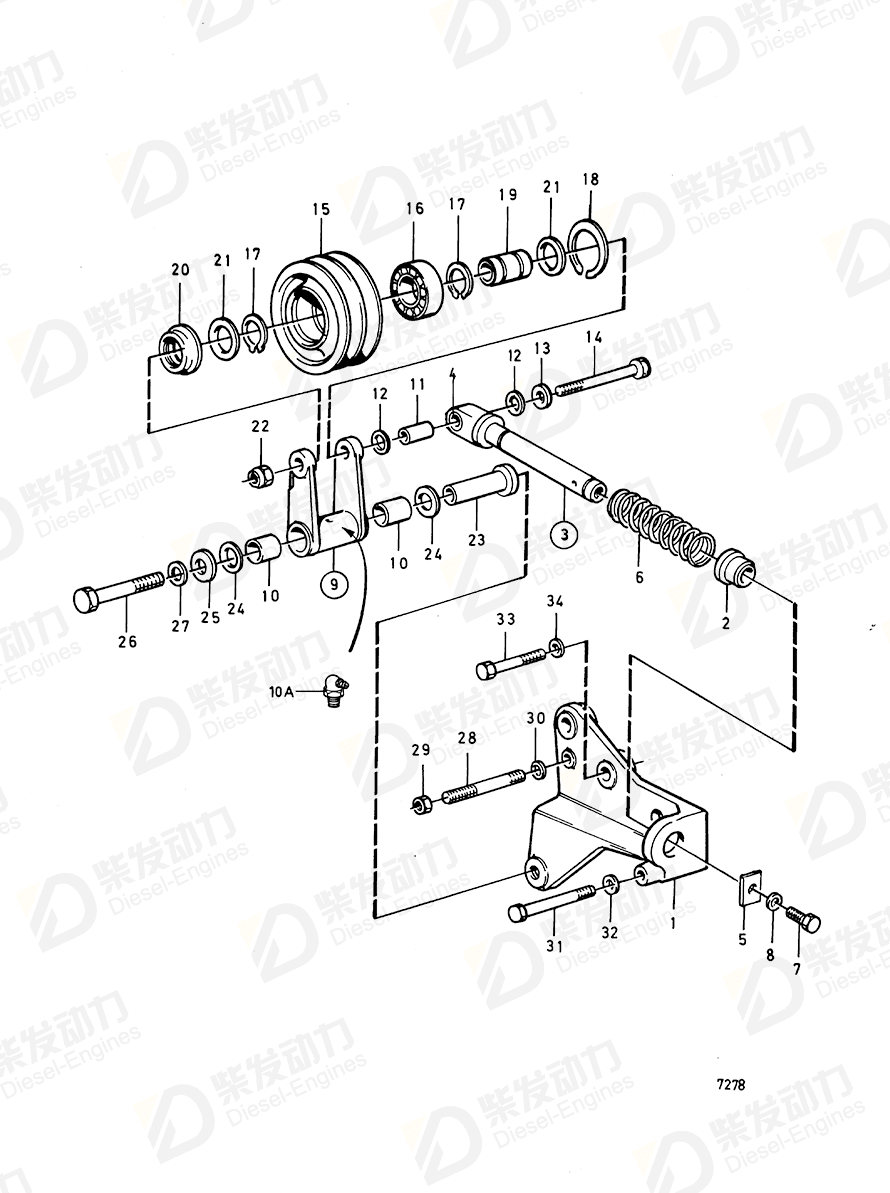

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 843913 | 1 | |
| 2 | Bushing | 843914 | 1 | |
| 3 | Spring guide | 843915 | 1 | |
| 4 | Bearing bushing | 943959 | 1 | |
| 5 | Washer | 843920 | 1 | |
| 6 | Compression spring | 843919 | 1 | |
| 7 | Hexagon screw | 955269 | 1 | For 1570594 |
| 8 | Spring washer | 941906 | 1 | |
| 9 | Link arm | 847034 | 1 | |
| 10 | Bearing bushing | 946176 | 2 | |
| 11 | Pivot pin | 843923 | 1 | |
| 12 | Wear washer | 843924 | 2 | |
| 13 | Washer | 960143 | 1 | |
| 14 | Hexagon screw | 970959 | 1 | |
| 15 | Pulley | 843248 | 1 | |
| 15 | Pulley | 844048 | 1 | |
| 16 | Ball bearing | 1544092 | 1 | (181430) |
| 17 | Retaining ring | 914462 | 2 | |
| 18 | Retaining ring | 914533 | 1 | |
| 19 | Spindle | 843925 | 1 | |
| 20 | Protecting plate | 844049 | 2 | |
| 21 | Sealing ring | 965862 | 2 | |
| 22 | Lock nut | 971089 | 1 | Included in spring kit 876019. |
| 23 | Spindle | 843926 | 1 | |
| 24 | Wear washer | 843927 | 2 | |
| 25 | Washer | 18702 | 1 | |
| 26 | Hexagon screw | 962914 | 1 | |
| 27 | Spring washer | 941911 | 1 | |
| 28 | Stud | 953278 | 1 | |
| 29 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 30 | Spring washer | 942336 | 1 | |
| 31 | Hexagon screw | 959797 | 1 | |
| 32 | Spring washer | 942336 | 1 | |
| 33 | Hexagon screw | 955581 | 1 | Casted pistons, MO 75015200-, MO 75035926-. |
| 34 | Spring kit | 876019 | 1 | |
| 34 | Spring washer | 941911 | 1 | |
| 10A | Lubricating nipple | 914170 | 1 |
| Item | Part Name | Part No. |
| 31 | Hexagon screw 959797 | 959797 |
| Details | |
| Engine model | D70B D70CHC, D70CRC TD100CHC TD100CRC TD120ARC TD120BRC TD120C TD120G TD121CRC TD70CHC, TD70CRC TID120FG |
| Application | Automatic Belt Tensioner and Installation Components Belt Transmission and Automatic Belt Tensioner Induction and Exhaust Manifold with Installation Components Induction and Exhaust Pipe: A Induction and Exhaust Pipe: B Induction-and Exhaust Manifold, Classed Engine Thermostat and Water Pump with Installation Components |
| Specification | |
| Descriptions | L=140mm When double sheated fuel pipes are mounted., L=140mm When double sheated fuel pipes not are mounted., L=140mm |
