Hexagon screw 959820

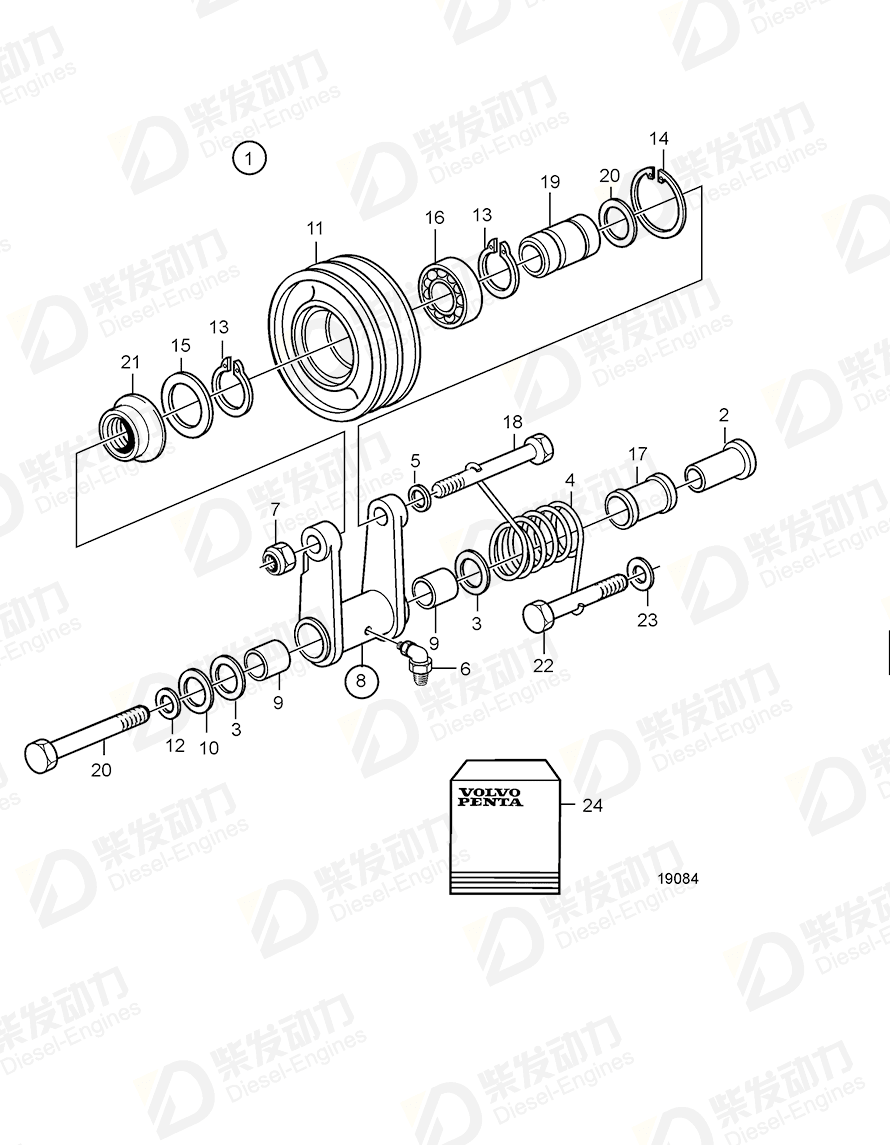

| No. | Part Name | Part Number | Qty | Description |
| 1 | Belt tensioner | 847892 | 1 | |
| 2 | Spindle | 843926 | 1 | |
| 3 | Wear washer | 843927 | 2 | |
| 4 | Torsion spring | 845215 | 1 | Included in spring kit 876020. |
| 5 | Spring washer | 941908 | 1 | |
| 6 | Lubricating nipple | 914170 | 1 | |
| 7 | Lock nut | 971089 | 1 | Included in spring kit 876019. |
| 8 | Link arm | 847034 | 1 | |
| 9 | Bearing bushing | 946176 | 2 | |
| 10 | Washer | 18702 | 1 | |
| 11 | Pulley | 1661878 | 1 | |
| 12 | Spring washer | 941911 | 2 | |
| 13 | Retaining ring | 914462 | 2 | |
| 14 | Retaining ring | 914533 | 1 | |
| 15 | Sealing ring | 965862 | 2 | |
| 16 | Ball bearing | 1544092 | 1 | (181430) |
| 17 | Spacer sleeve | 845208 | 1 | Included in spring kit 876019. |
| 18 | Flange screw | 947790 | 1 | |
| 19 | Spindle | 843925 | 1 | |
| 20 | Hexagon screw | 959820 | 1 | Included in spring kit 876020. |
| 21 | Protecting plate | 844049 | 1 | |
| 22 | Hexagon screw | 955542 | 1 | |
| 23 | Spring washer | 942336 | 1 |
| Item | Part Name | Part No. |
| 20 | Hexagon screw 959820 | 959820 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TD100G-87 TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE |
| Application | Belt Tensioner Device |
| Specification | |
| Descriptions | Included in spring kit 876020. |
Related Products
Tags: Hexagon screw, Volvo Penta, 959820
