Hexagon screw 967825

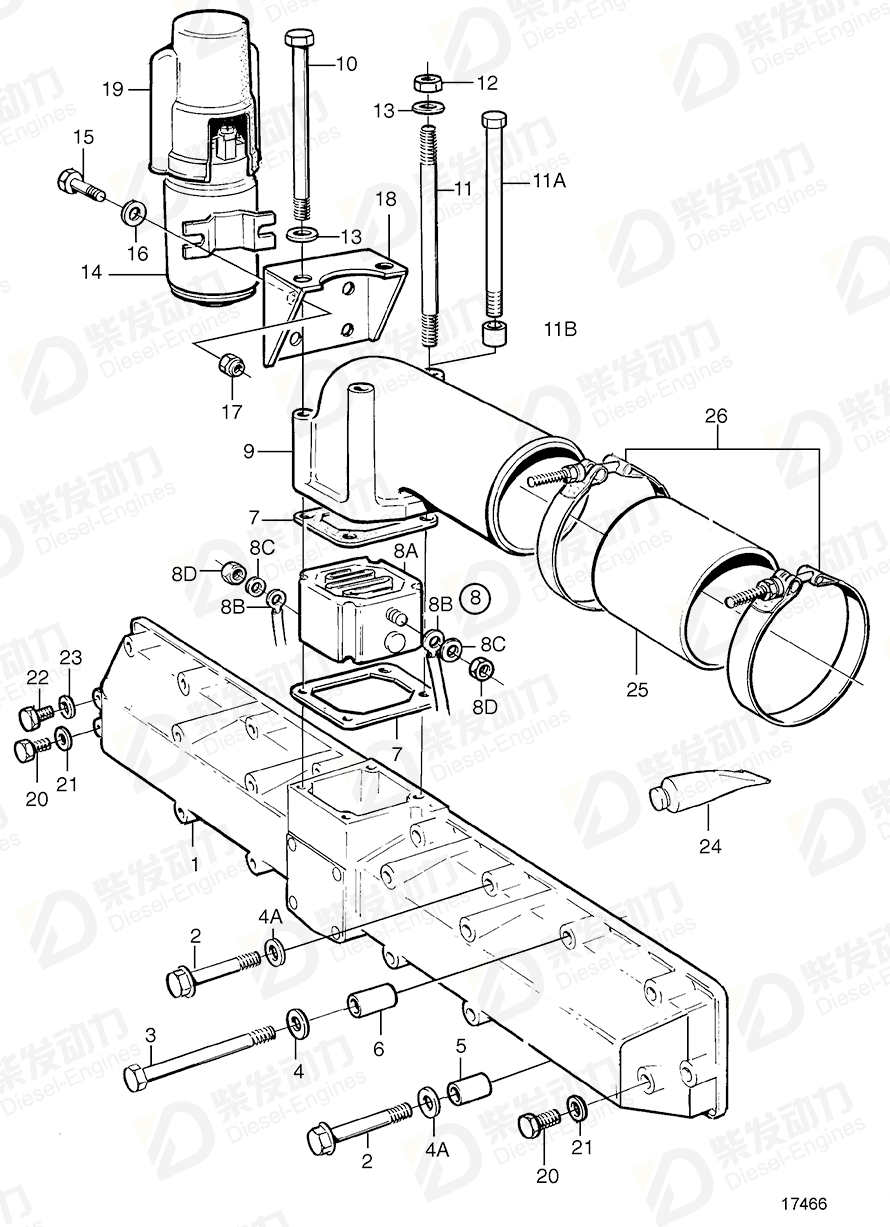

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 471817 | 1 | |
| 2 | Flange screw | 965180 | 16 | |
| 2 | Flange screw | 965183 | 2 | |
| 3 | Hexagon screw | 955310 | 2 | L=130mm |
| 4 | Washer | 976944 | 2 | |
| 5 | Spacer sleeve | 848694 | 2 | |
| 6 | Spacer sleeve | 848423 | 2 | L=63mm |
| 7 | Gasket | 471682 | 2 | Included in gasket kit. |
| 8 | Starter element | 848959 | 1 | 24V |
| 9 | Connecting pipe | 865069 | 1 | |
| 10 | Hexagon screw | 967825 | 2 | |
| 11 | Stud | 942283 | 2 | |
| 12 | Hexagon nut | 946330 | 2 | |
| 13 | Washer | 120265 | 4 | |
| 13 | Washer | 955894 | 2 | |
| 14 | Relay | 873962 | 1 | |
| 15 | Six point socket scr | 969405 | 2 | (955244) |
| 16 | Washer | 940090 | 2 | |
| 17 | Flange lock nut | 949874 | 2 | |
| 18 | Attaching plate | 843400 | 1 | |
| 19 | Casing | 1581123 | 1 | |
| 20 | Plug | 960629 | 2 | |
| 21 | Gasket | 11994 | 2 | |
| 22 | Plug | 960628 | 1 | |
| 23 | Gasket | 18665 | 1 | |
| 24 | Sealant | 1161231 | 1 | 304ml |
| 25 | Charge air hose | 865128 | 1 | |
| 26 | Hose clamp | 865575 | 2 | |
| 4A | Spring washer | 941907 | 18 | |
| 8A | Starter element | 471878 | 1 | |
| 8C | Washer | 955894 | 2 | |
| 8D | Hexagon nut | 17624 | 2 | |
| 11A | Hexagon screw | 968303 | 2 | |
| 11B | Spacer sleeve | 847150 | 2 |
| Item | Part Name | Part No. |
| 10 | Hexagon screw 967825 | 967825 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TD71AW |
| Application | Induction Manifold with Installation Components Inlet Manifold |
| Specification | |
| Descriptions | L=165mm |
Related Products
Tags: Hexagon screw, Volvo Penta, 967825
