Hexagon screw 970948
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Bracket |
846285 |
2 |
|
| 2 |
Washer |
846284 |
2 |
|
| 3 |
Hexagon screw |
970948 |
2 |
|
| 4 |
Spring washer |
941908 |
2 |
|
| 5 |
Bracket |
1587713 |
2 |
|
| 6 |
Battery box |
1587691 |
1 |
|
| 7 |
Hexagon nut |
971072 |
8 |
Alt |
| 8 |
Spring washer |
940280 |
8 |
|
| 9 |
Main switch |
1587698 |
1 |
|
| 10 |
Bracket |
1587695 |
1 |
|
| 11 |
Hexagon screw |
955272 |
4 |
|
| 12 |
Lock nut |
946035 |
4 |
|
| 13 |
Key |
1587017 |
1 |
|
| 14 |
Bellows |
1582293 |
1 |
|
| 15 |
Pin |
1581000 |
1 |
|
| 16 |
Plug |
961970 |
2 |
|
| 17 |
Cover |
1587694 |
1 |
|
| 18 |
Electric cable |
942936 |
1 |
L=250mm |
| Item |
Part Name |
Part No. |
| 3 |
Hexagon screw 970948 |
970948 |
| Details |
| Application |

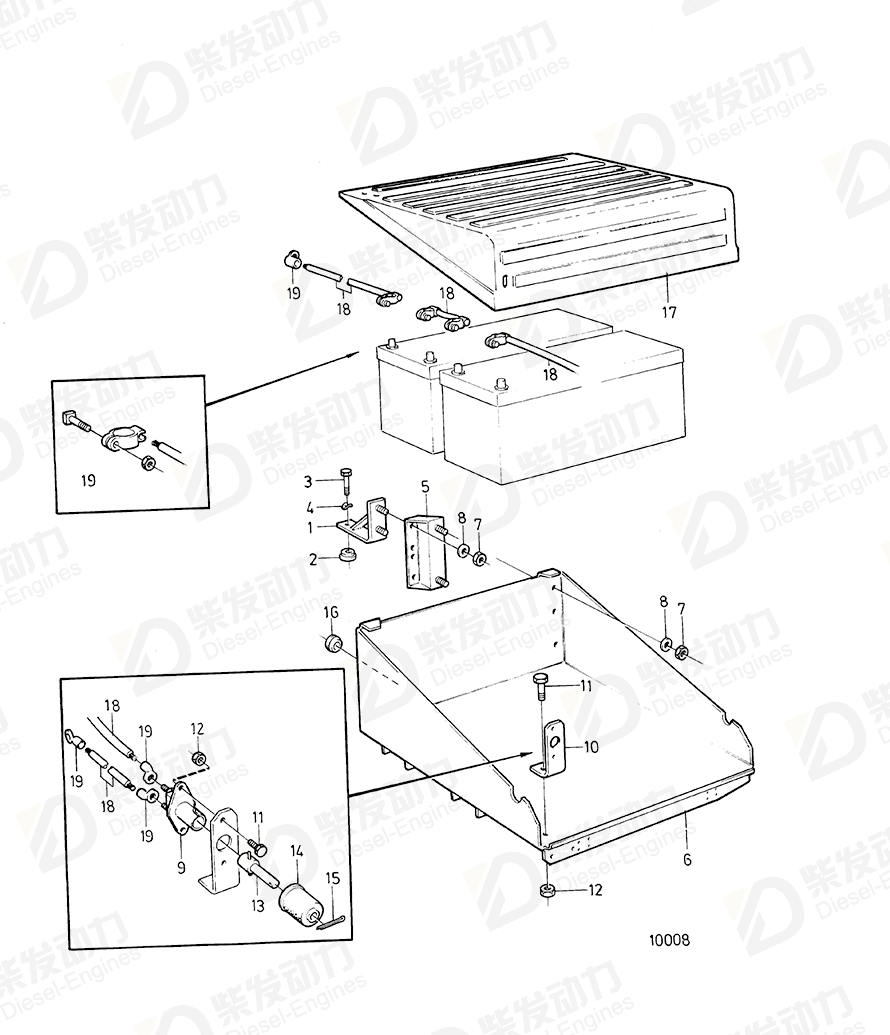

Battery Box and Installation Components |
Tags:
Hexagon screw,
Volvo Penta,
970948
