Hollow screw 48634

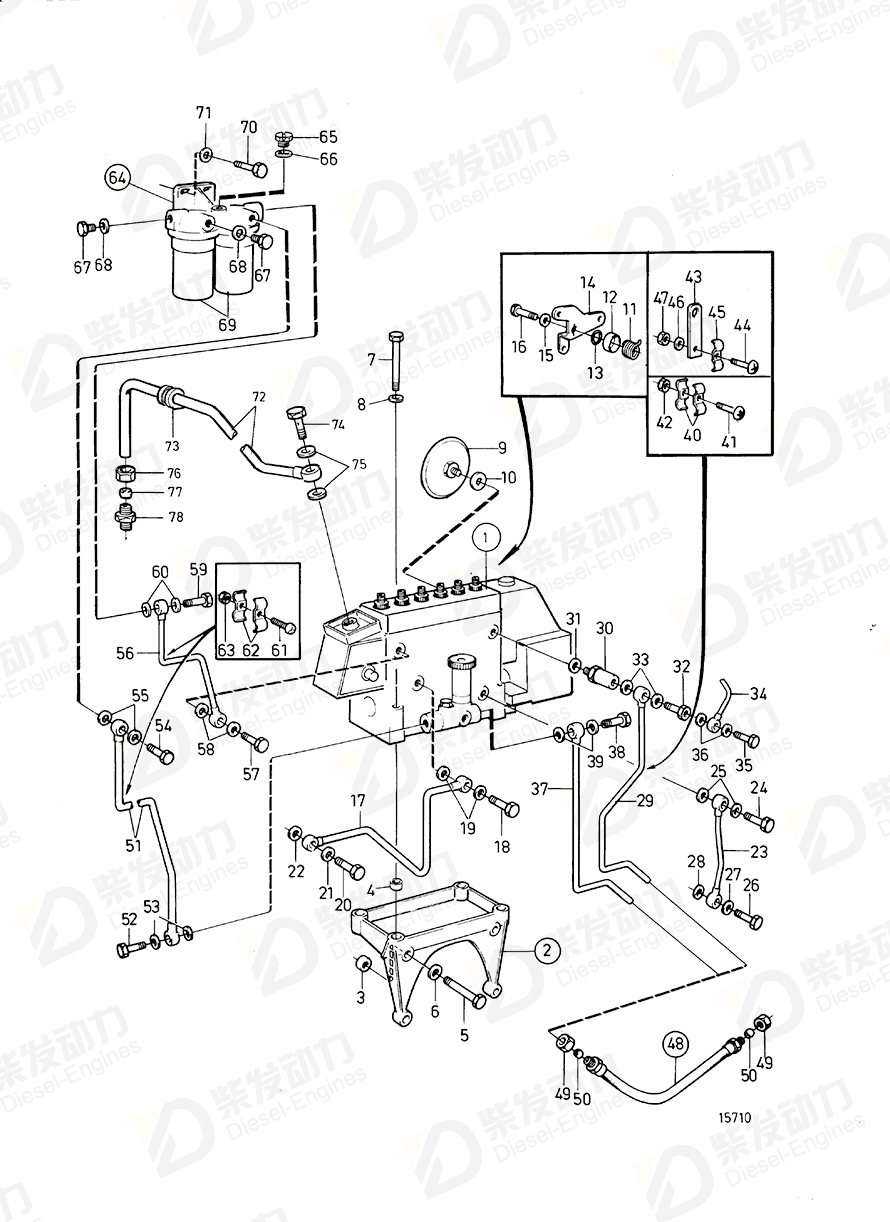

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803742 | 1 | (862183) |
| 2 | Bracket | 478647 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Guide sleeve | 417588 | 1 | |
| 5 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 9 | Pressure equalizer | 477173 | 1 | (466398) |
| 10 | Gasket | 969011 | 1 | |
| 11 | Spring | 239056 | 1 | Replaced by 837364. |
| 12 | Cover | 239059 | 1 | Replaced by 837364 |
| 13 | Washer | 120265 | 1 | |
| 14 | Intermediate lever | 848677 | 1 | (821134) |
| 15 | Spring washer | 941906 | 1 | |
| 16 | Hexagon screw | 955637 | 1 | |
| 17 | Oil feed pipe | 422245 | 1 | |
| 18 | Hollow screw | 48634 | 1 | |
| 19 | Gasket | 947281 | 2 | |
| 20 | Hollow screw | 942081 | 1 | |
| 21 | Gasket | 18666 | 1 | |
| 22 | Gasket | 11994 | 1 | |
| 23 | Return pipe | 422246 | 1 | |
| 24 | Hollow screw | 25167 | 1 | |
| 25 | Gasket | 969011 | 2 | |
| 26 | Hollow screw | 942007 | 1 | (954394) |
| 27 | Gasket | 11998 | 1 | |
| 28 | Gasket | 942703 | 1 | |
| 29 | Fuel pipe | 865760 | 1 | |
| 30 | Overflow valve | 3825154 | 1 | |
| 31 | Gasket | 15304 | 1 | |
| 32 | Hollow screw | 16496 | 1 | |
| 33 | Gasket | 969011 | 2 | |
| 34 | Leak-off line | 846637 | 1 | |
| 35 | Hollow screw | 74033 | 1 | |
| 36 | Gasket | 947620 | 2 | (233321) |
| 37 | Fuel pipe | 866933 | 1 | |
| 38 | Hollow screw | 25167 | 1 | |
| 39 | Gasket | 969011 | 2 | |
| 40 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 41 | Cross recessed screw | 950047 | 1 | |
| 42 | Hexagon nut | 955825 | 1 | Late type |
| 43 | Anchorage | 821625 | 1 | |
| 44 | Cross recessed screw | 950047 | 1 | |
| 45 | Attaching clamp | 404279 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 46 | Washer | 955893 | 1 | |
| 47 | Hexagon nut | 955825 | 1 | Late type |
| 48 | Fuel hose | 845450 | 2 | (880618) |
| 49 | Fitting nut | 956983 | 4 | |
| 50 | Ferrule | 956969 | 4 | |
| 51 | Fuel pipe | 848931 | 1 | |
| 52 | Hollow screw | 25167 | 1 | |
| 53 | Gasket | 969011 | 2 | |
| 54 | Hollow screw | 25167 | 1 | |
| 55 | Gasket | 969011 | 2 | |
| 56 | Fuel pipe | 848932 | 1 | |
| 57 | Hollow screw | 25167 | 1 | |
| 58 | Gasket | 969011 | 2 | |
| 59 | Hollow screw | 25167 | 1 | |
| 60 | Gasket | 969011 | 2 | |
| 61 | Cross recessed screw | 950047 | 2 | |
| 62 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 63 | Hexagon nut | 955825 | 2 | Late type |
| 64 | Filter housing | 471172 | 1 | Repl by 1676832 |
| 64 | Housing | 1676832 | 1 | Repl by 8194541 |
| 64 | Fuel filter housing | 8194541 | 1 | |
| 65 | Hollow screw | 471177 | 1 | |
| 66 | Gasket | 947620 | 1 | (233321) |
| 67 | Plug | 960630 | 3 | Replaced by 1 PC 843512,1 ST 191026. |
| 67 | Plug | 968062 | 3 | |
| 68 | Gasket | 969011 | 3 | |
| 69 | Fuel filter | 3825133 | 2 | |
| 70 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 71 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 72 | Tube | 1545853 | 1 | |
| 73 | Clamp | 18368 | 1 | |
| 74 | Hollow screw | 969299 | 1 | |
| 75 | Gasket | 11994 | 2 | |
| 76 | Fitting nut | 954357 | 1 | |
| 77 | Fitting | 954365 | 1 | |
| 78 | Elbow nipple | 954386 | 1 |
| Item | Part Name | Part No. |
| 18 | Hollow screw 48634 | 48634 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D120A D70B D70CHC D70CHC, TD70CHC D70CRC DH10A TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TAD1250VE, TAD1251VE, TAD1252VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1360VE TAD1361VE TAD1363VE TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TAD1640GE, TAD1641GE, TAD1642GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE, TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TAD1640GE, TAD1641GE, TAD1642GE, TWD1643GE TAD1640GE, TAD1641GE, TAD1642GE, TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TAD1641VE, TAD1642VE, TAD1643VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1660VE, TAD1661VE, TAD1662VE TAD1650GE, TAD1651GE TAD1660VE, TAD1661VE, TAD1662VE TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD730G TAD730P TAD730V TAD740GE TAD741GE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD100GP TD100GP-85 TD100HP-87 TD1010G, TWD1010G TD1030ME TD1030VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HP-86 TD120HPP TD1210G TD121CHC TD121CRC TD121G TD121G-87 TD121GG TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TD164KAE TD45B TD60A TD60B TD60D TD60D-83 TD610G, TWD610G TD610M TD610V TD61A TD61ACE TD61AG TD61AP TD61AW TD630ME TD630VE TD640VE TD70B TD70CHC TD70CRC TD70G TD70G-83 TD710G TD71A TD71A, TID71A, TWD710V, TAD730V TD71ACE TD71AG TD71AP TD71AW TD730ME TD730VE TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KP-87 TID100KPB-87 TID120FG TID120HPP TID121FG TID121K TID121K-87 TID121KG TID121KG-87 TID121KGP TID121KP TID121KP-87 TID121KPB-87 TID121L-87 TID121LG TID121LG-87 TID121LGP-87 TID121LP TID121LP-87 TID121LPB-87 TID162AG, TID162AGP TID162AP, TID162APB TID60D TID60DG TID61AG TID70G TID71A TID71AG TID71AP TWD1030ME TWD1031VE TWD1210G TWD1210P TWD1210V TWD1211G TWD1211P TWD1211V TWD1230ME TWD1230VE TWD1231VE TWD1620G TWD1630G TWD1630P TWD1630V TWD1643GE, TWD1663GE TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE TWD610P TWD610V TWD630ME TWD630VE TWD710G TWD710P TWD710V TWD730ME TWD731ME TWD731VE TWD740GE TWD740VE |
| Application | Alternator and Relay with Installation Components: A Circulation Pump and Drive Device with Installation Components Classed Fuel System, Spec.867108, 867153: A Classed Fuel System, Spec.867108, 867153: B Classed Fuel System, Spec.9902, 9879 Earlier Prod: A Classed Fuel System, Spec.9902, 9879 Earlier Prod: TD100AA Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: A Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: B Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: C Classed Fuel System: A Classed Fuel System: B Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump and Fuel Filter. Standard Fuel System: A Fuel Injection Pump and Fuel Filter. Standard Fuel System: B Fuel Injection Pump and Fuel Filter. Standard Fuel System: C Fuel Injection Pump and Fuel Filter: A Fuel Injection Pump and Fuel Filter: B Fuel Injection Pump and Fuel Filter: C Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: A Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: B Fuel Injection Pump, Fuel Filter and Shut-off Valve. Standard Fuel Injection Timing Device Fuel Injection Timing Device: A Fuel Pipes-Pump-Fuel Filter Spec.867578 Fuel System Fuel System Excl.Spec.S5175/497250 D100A: A Fuel System Excl.Spec.S5175/497250 D100A: B Fuel System Excl.Spec.S5175/497250 D100A: C Fuel System MO-46196/XXXXX: A Fuel System MO-46196/XXXXX: B Fuel System MO46197/XXXXX-: A Fuel System MO46197/XXXXX-: B Fuel System SN-2013227624 Fuel System SN-2016008440 Fuel System SN-2016045622: A Fuel System SN-7009170763 Fuel System SN2013227625- Fuel System SN2016008441- SN2016045622 Fuel System Spec.S5175/497250 Fuel System with Electronic Speed Control Fuel System with Fuel Shut-offValve Fuel System with Shut-off Valve Fuel System, Alternative Mounting Fuel System, Classed Engine, Spec.867053, MO-46196/XXXXX Fuel System, Classed Engine, Spec.867053, MO46197/XXXXX- Fuel System, Classed Engine, Spec.867117 Fuel System, Standard Model Fuel System, Standard Model: A Fuel System, Standard Model: B Fuel System, Venting SN20130227625- Fuel System, Venting SN2016045623-2016838881 Fuel System, Venting SN2016838882- Fuel System,Alternative Mounting Fuel System: 846359 Fuel System: 862183 Fuel System: 863451 FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D Fuel System: TD100GGP-87 Fuel System: TD100HPB87 Fuel System: TD61AGP Fuel System: TD61APB Fuel System: TD71AGP Fuel System: TD71APB FUEL SYSTEM: TID121FP Fuel System: TID61AGP Fuel System: TID71AGP Fuel System: TID71APB Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: C Injection Pump with Shut-off Valve, Energized to Run. Option. Injection Pump with Shut-off Valve, Energized to Run. Option.: A Injection Pump with Shut-off Valve, Energized to Run. Option.: B Injection Pump, Fuel Filter and EDC Control Unit Injection Pump, Fuel Filter and Shut-off Valve Injection Pump, Fuel Filter and Shut-off Valve: A Injection Pump, Fuel Filter and Shut-off Valve: B Injection Pump, Fuel Filter and Shut-off Valve: C Vacuum Pump |
| Specification | |
| Descriptions | (471608) Included in kit 866997. SN-2071064646 SN-2120233293 SN2071074713- Spec.867055 alt., Included in vacuum pump. |
