Volvo 1676509 Hose 1676509 Engine spare parts-Generator engine parts Mall

Hose 1676509

0 reviews Write a review

Qty

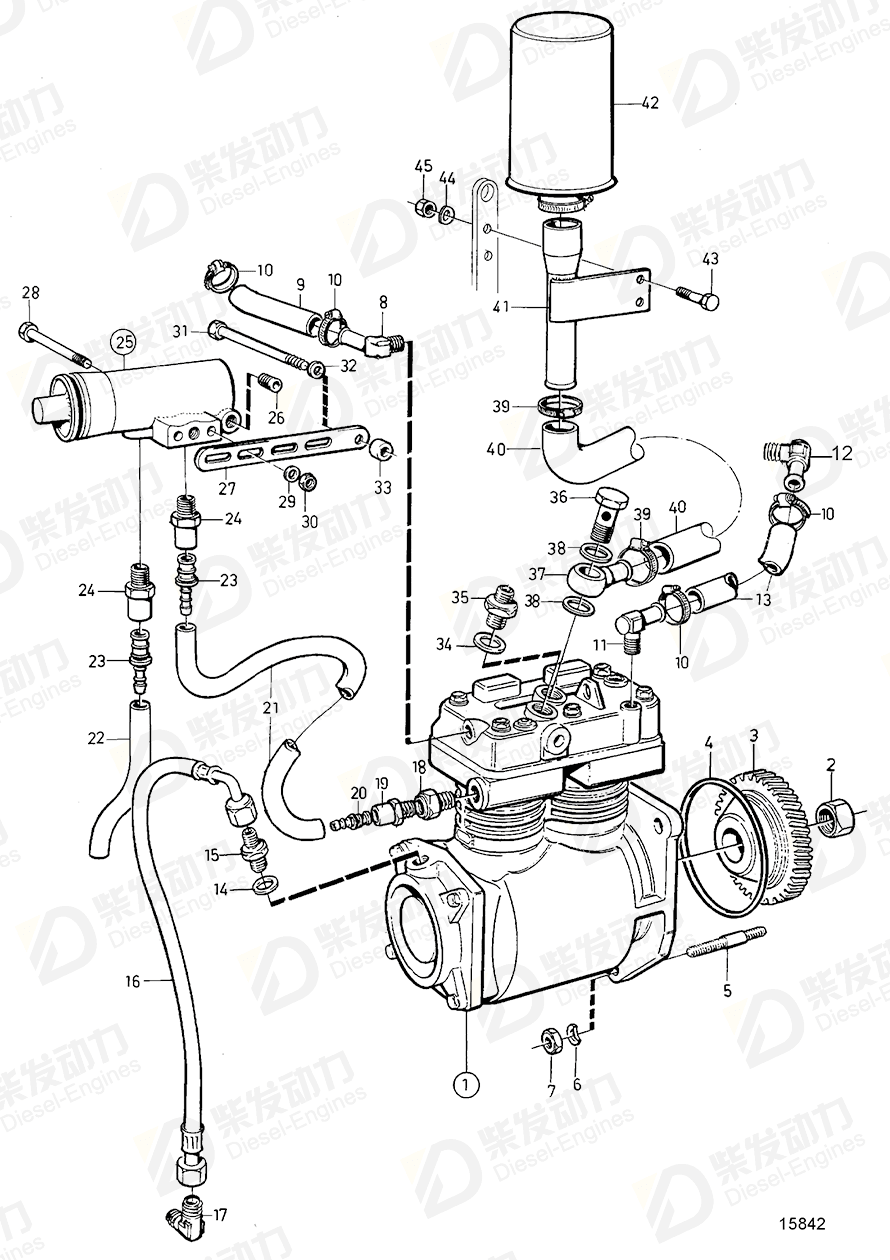

No.	Part Name	Part Number	Qty	Description
1	Compressor, exch	3803262	1
1	Compressor	8150407	1
2	Nut	346918	1
3	Gear	478777	1
4	O-ring	975610	1	For engines without air compressor.
5	Stud	953346	3
6	Spring washer	941911	3
7	Hexagon nut	955828	3
8	Hose nipple	976553	1
9	Rubber hose	946652	1	L=400mm
10	Hose clamp	943472	4
11	Nipple, air compr.	479978	1	(961654)
12	Hose nipple	979270	1
13	Rubber hose	946652	1	L=400mm
14	Gasket	957173	1
15	Nipple	963947	1
16	Hose assembly	977651	1
17	Elbow nipple	942376	1
18	Reduction nipple	966459	1
19	Nipple	968696	1
20	Nipple	976444	1
21	Tube	945460	1	L=900mm
22	Tube	945460	1	L=900mm
23	Nipple	976444	2
24	Nipple	968694	2
25	Governor	1505047	1	Replaced by regulator 3944252 and 2 pcs spacer washer 946048.
26	Plug	968060	4
27	Bracket	965546	1
28	Hexagon screw	955529	2
29	Washer	966674	2
30	Hexagon nut	955826	2
31	Hexagon screw	944446	1
32	Spring washer	941907	1
33	Spacer sleeve	847238	1
34	Gasket	947628	1
35	Nipple	978281	1
36	Hollow screw	191620	1
37	Banjo nipple	1598055	1
38	Gasket	947628	2
39	Hose clamp	994559	2
40	Hose	1676509	1
41	Bracket	1587040	1
42	Air filter	8152010	1
43	Hexagon screw	955525	2
44	Washer	955894	2
45	Hexagon nut	955826	2

Item	Part Name	Part No.
40	Hose 1676509	1676509

Details
Engine model	TD100G-87, TD1030ME TD100G-87, TD1030VE TD71A TD71A, TD71AW
Application	Air Compressor &Knorr &LP48 &Ess Air Compressor Knorr LP48 Air Compressor Knorr LP48 ESS
