Hose 22548487

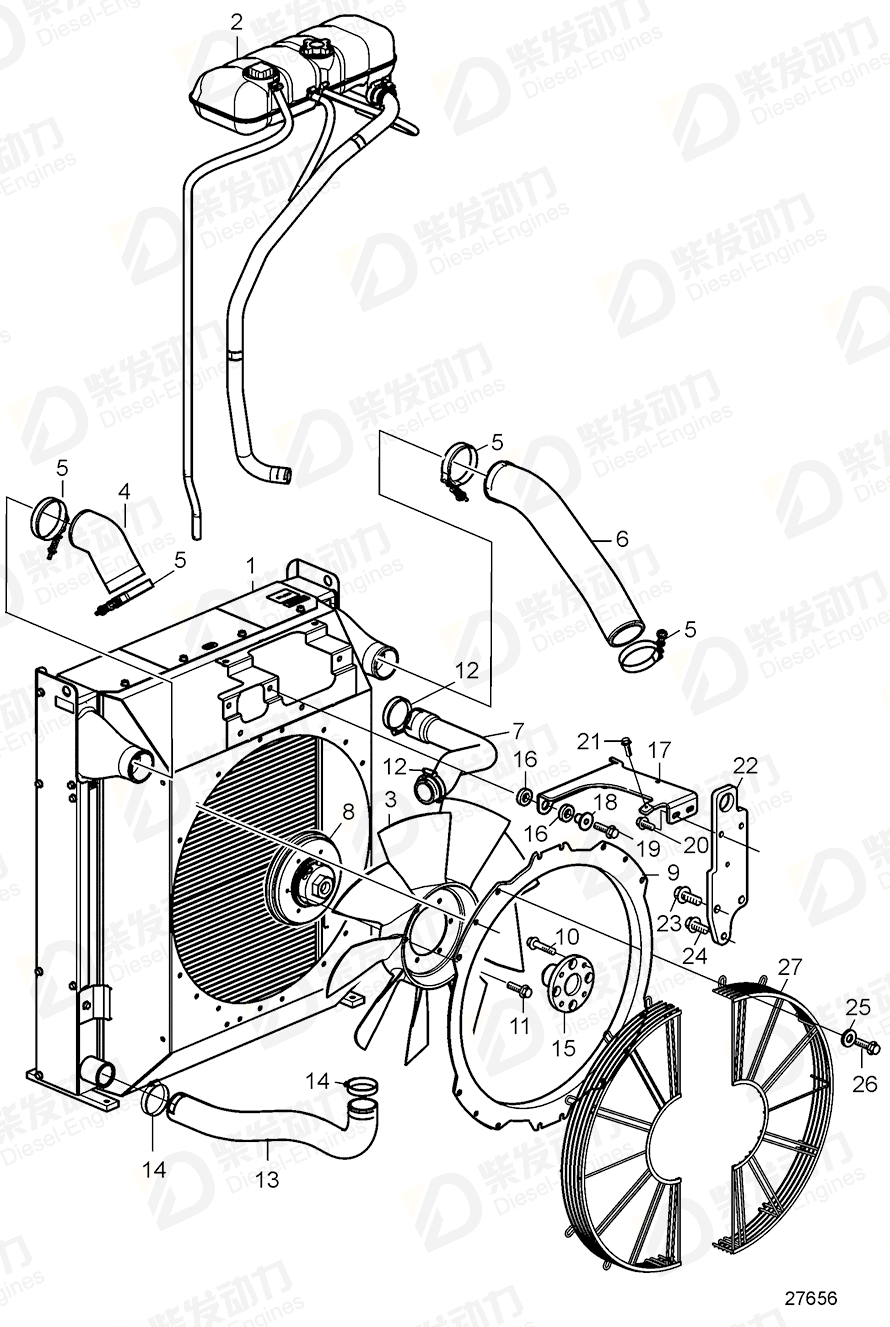

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cooling unit | 21847456 | 1 | |
| 2 | Expansion tank | 1674916 | 1 | |
| 3 | Fan | 21920709 | 1 | Visco 600 Pusher |
| 3 | Fan | 21920714 | 1 | Visco 600 Suction |
| 4 | Hose | 22548487 | 1 | |
| 5 | Hose clamp | 22196066 | 1 | |
| 6 | Hose | 22253279 | 1 | |
| 7 | Hose | 22420695 | 1 | |
| 8 | Clutch | 22647885 | 1 | |
| 9 | Fan ring | 21878550 | 1 | Visco 600 |
| 10 | Flange screw | 984734 | 4 | |
| 11 | Six point screw | 21318856 | 6 | |
| 12 | Hose clamp | 994565 | 4 | |
| 13 | Hose | 21754674 | 1 | |
| 14 | Hose clamp | 20757802 | 4 | |
| 15 | Adapter | 22119407 | 1 | |
| 16 | Rubber bushing | 866857 | 4 | |
| 17 | Bracket | 22104165 | 1 | |
| 18 | Spacer sleeve | 22085505 | 2 | |
| 19 | Flange screw | 968163 | 2 | |
| 20 | Flange screw | 984752 | 2 | |
| 21 | Flange screw | 984734 | 1 | |
| 22 | Lifting eye | 21748651 | 1 | |
| 23 | Flange screw | 984815 | 2 | |
| 24 | Flange screw | 969445 | 1 | |
| 25 | Flange screw | 984734 | 16 | |
| 26 | Washer | 976944 | 12 | |
| 27 | Fan guard | 22540288 | 2 | |
| 28 | Sensor | 21315240 | 1 | For Visco fan and all other fans |
| 30 | Flange screw | 984751 | 2 | |
| 31 | Flange nut | 990940 | 1 | |
| 32 | Cable tie | 948702 | 1 | |
| 33 | Charge air pipe | 22445000 | 1 |
| Item | Part Name | Part No. |
| 4 | Hose 22548487 | 22548487 |
| Details | |
| Engine model | TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE TAD870VE, TAD871VE, TAD872VE, TAD873VE |
| Application | Cooling system and components HD Cooling system HD |
