Hose 3825721

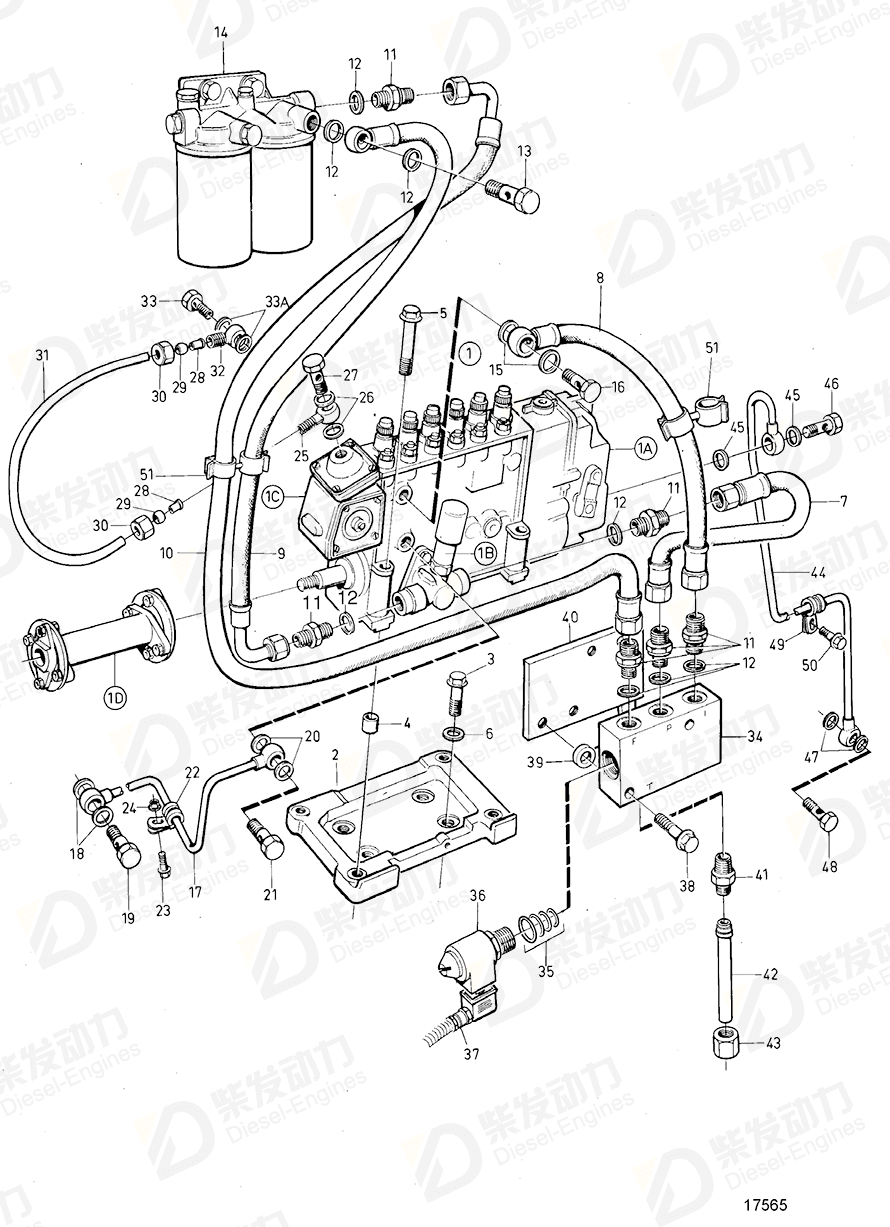

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803737 | 1 | |
| 1 | Injection pump | 3825834 | 1 | |
| 1 | Governor | 3825889 | 1 | |
| 2 | Shelf | 477773 | 1 | |
| 3 | Hex. socket screw | 959241 | 4 | |
| 4 | Guide sleeve | 417588 | 2 | |
| 5 | Flange screw | 965189 | 4 | |
| 6 | Spring washer | 941908 | 4 | |
| 7 | Hose | 3825848 | 1 | |
| 8 | Hose | 3826284 | 1 | |
| 9 | Hose | 3825721 | 1 | |
| 10 | Hose | 3825722 | 1 | |
| 11 | Nipple | 941754 | 6 | |
| 12 | Gasket | 969011 | 8 | |
| 13 | Hollow screw | 25167 | 1 | |
| 15 | Gasket | 969011 | 2 | |
| 16 | Hollow screw | 25167 | 1 | |
| 17 | Oil pressure pipe | 477986 | 1 | SN2071064647- |
| 18 | Gasket | 947281 | 2 | |
| 19 | Hollow screw | 25167 | 1 | |
| 1B | Feed pump | 244825 | 1 | |
| 20 | Gasket | 907132 | 2 | |
| 21 | Hollow screw | 48634 | 1 | |
| 22 | Clamp | 952623 | 1 | |
| 23 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 24 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 25 | Banjo nipple | 945417 | 1 | |
| 26 | Gasket | 947282 | 2 | Late type |
| 27 | Hollow screw | 969299 | 1 | |
| 28 | Support sleeve | 944717 | 2 | |
| 29 | Sleeve | 954364 | 2 | |
| 30 | Fitting nut | 954356 | 2 | |
| 31 | Tube | 945460 | 1 | L=900mm |
| 34 | Valve | 866698 | 1 | 12V repl by 3828982 |
| 34 | Valve | 866699 | 1 | |
| 34 | Fuel valve | 3828982 | 1 | |
| 34 | Fuel valve | 3828983 | 1 | |
| 35 | Gasket | 3825238 | 1 | |
| 35 | Gasket kit | 3828981 | 1 | |
| 36 | Magnet | 3825239 | 1 | |
| 36 | Magnet | 3825240 | 1 | |
| 37 | Cable kit | 866927 | 1 | |
| 38 | Flange screw | 947760 | 2 | M8x40mm |
| 39 | Washer | 191172 | 2 | Spec.867054, 867221. |
| 41 | Nipple | 977677 | 2 | |
| 42 | Tube | 19794 | 2 | |
| 42 | Ferrule | 956969 | 2 | |
| 42 | Fuel pipe | 3825770 | 2 | |
| 43 | Fitting nut | 956983 | 2 | |
| 44 | Oil return pipe | 865274 | 1 | SN2071074713- |
| 45 | Gasket | 947281 | 2 | |
| 46 | Hollow screw | 48634 | 1 | |
| 47 | Gasket | 969011 | 2 | |
| 48 | Hollow screw | 25167 | 1 | |
| 49 | Clamp | 947191 | 1 | |
| 50 | Flange screw | 946471 | 1 | |
| 51 | Retainer | 866663 | 3 |
| Item | Part Name | Part No. |
| 9 | Hose 3825721 | 3825721 |
| Details | |
| Engine model | TAD730P TD730ME TWD710P TWD731ME |
| Application | Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: A Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump with Shut-off Valve, Energized to Run. Option.: A Injection Pump with Shut-off Valve, Energized to Run. Option.: B |
| Specification | |
| Descriptions | Fuel feed pump - fuel filter |
