Hose 3827019

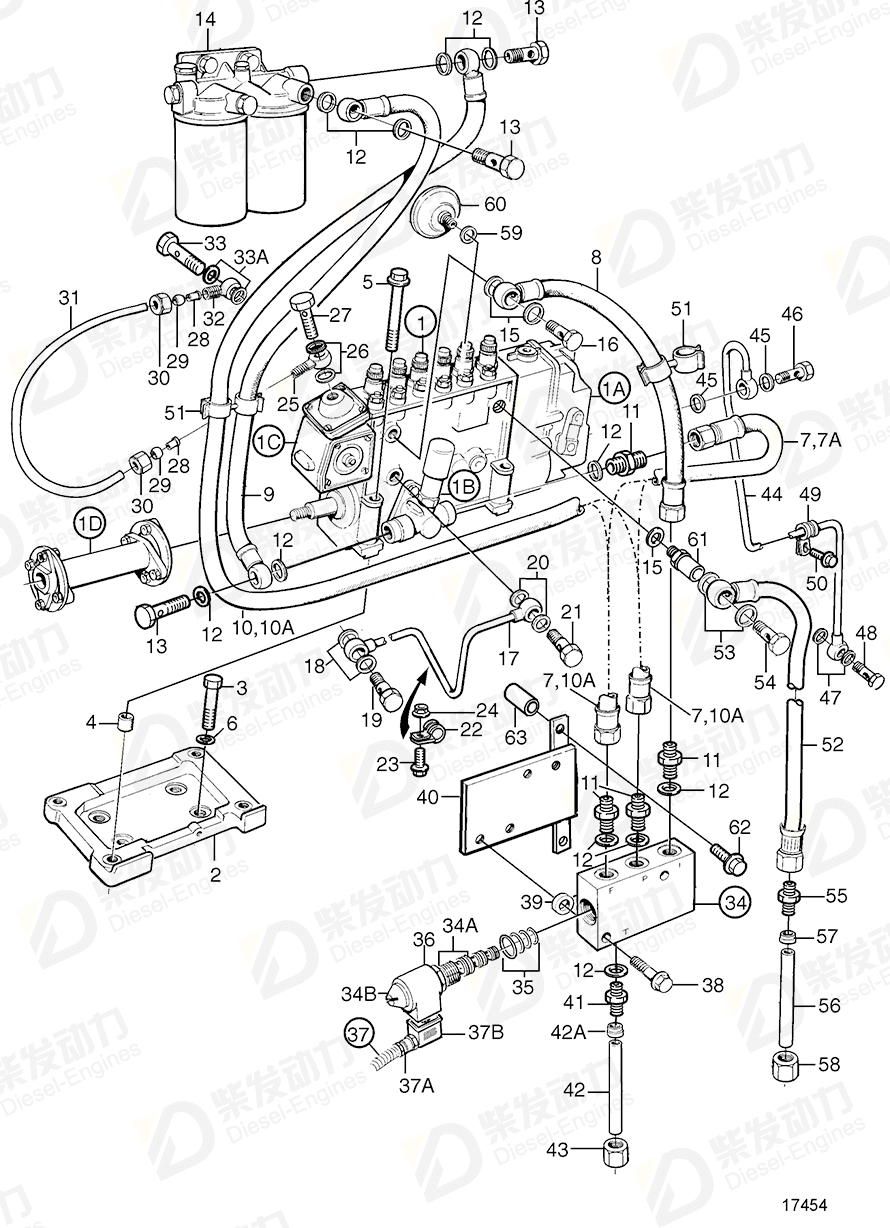

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803737 | 1 | |
| 1 | Injection pump | 3825834 | 1 | |
| 1 | Governor | 3825889 | 1 | |
| 2 | Shelf | 477773 | 1 | |
| 3 | Flange screw | 965185 | 4 | |
| 4 | Guide sleeve | 417588 | 2 | |
| 5 | Flange screw | 965189 | 4 | |
| 6 | Spring washer | 941908 | 4 | |
| 7 | Hose | 3825848 | 1 | |
| 8 | Hose | 3826284 | 1 | |
| 9 | Hose | 3825670 | 1 | |
| 10 | Hose | 3827019 | 1 | |
| 11 | Nipple | 941754 | 4 | |
| 12 | Gasket | 969011 | 10 | |
| 13 | Hollow screw | 25167 | 2 | |
| 15 | Gasket | 969011 | 2 | |
| 16 | Hollow screw | 25167 | 1 | |
| 17 | Oil pressure pipe | 477986 | 1 | SN2071064647- |
| 18 | Gasket | 11994 | 1 | |
| 19 | Hollow screw | 969299 | 1 | |
| 1B | Feed pump | 244825 | 1 | |
| 20 | Gasket | 947281 | 2 | |
| 21 | Hollow screw | 48634 | 1 | |
| 22 | Clamp | 952623 | 1 | |
| 23 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 24 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 25 | Banjo nipple | 945417 | 1 | |
| 26 | Gasket | 11994 | 2 | |
| 27 | Hollow screw | 969299 | 1 | |
| 28 | Support sleeve | 944717 | 2 | |
| 29 | Sleeve | 954364 | 2 | |
| 30 | Fitting nut | 954356 | 2 | |
| 31 | Tube | 945460 | 1 | L=900mm |
| 34 | Valve | 866698 | 1 | 12V repl by 3828982 |
| 34 | Valve | 866699 | 1 | |
| 34 | Fuel valve | 3828982 | 1 | |
| 34 | Fuel valve | 3828983 | 1 | |
| 35 | Gasket kit | 3828981 | 1 | |
| 36 | Valve | 3825235 | 1 | |
| 37 | Cable kit | 866927 | 1 | |
| 38 | Flange screw | 947760 | 2 | M8x40mm |
| 39 | Washer | 191172 | 2 | Spec.867054, 867221. |
| 40 | Bracket | 3826159 | 1 | |
| 41 | Nipple | 977677 | 1 | |
| 42 | Fuel pipe | 3825770 | 1 | |
| 43 | Fitting nut | 956983 | 1 | |
| 44 | Oil return pipe | 865274 | 1 | SN2071074713- |
| 45 | Gasket | 947281 | 2 | |
| 46 | Hollow screw | 48634 | 1 | |
| 47 | Gasket | 969011 | 2 | |
| 48 | Hollow screw | 25167 | 1 | |
| 49 | Clamp | 947191 | 1 | |
| 50 | Flange screw | 946471 | 1 | |
| 51 | Retainer | 9205207 | 3 | |
| 52 | Hose | 3826284 | 1 | |
| 53 | Gasket | 969011 | 1 | |
| 54 | Hollow screw | 25167 | 1 | |
| 55 | Nipple | 957055 | 1 | |
| 56 | Fuel pipe | 3825770 | 1 | |
| 57 | Ferrule | 956969 | 1 | |
| 58 | Fitting nut | 956983 | 1 | |
| 59 | Gasket | 969011 | 1 | |
| 60 | Pressure equalizer | 477173 | 1 | (466398) |
| 61 | Overflow valve | 3825154 | 1 | |
| 62 | Flange screw | 969313 | 2 | |
| 63 | Spacer sleeve | 822779 | 2 | |
| 7A | Hose | 3825848 | 1 | |
| 10A | Hose | 3827019 | 1 | |
| 34A | Magnet | 3825239 | 1 | |
| 34A | Magnet | 3825240 | 1 | |
| 37A | Housing | 866664 | 1 | |
| 37B | Grommet | 844576 | 1 | |
| 42A | Ferrule | 956969 | 1 |
| Item | Part Name | Part No. |
| 10 | Hose 3827019 | 3827019 |
| Details | |
| Engine model | TAD730V TD630ME TD630VE TD71A TD730VE TID71A TWD630ME TWD630VE TWD710V TWD731VE |
| Application | Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel System with Shut-off Valve Injection Pump with Shut-off Valve, Energized to Run. Option. Injection Pump, Fuel Filter and Shut-off Valve Injection Pump, Fuel Filter and Shut-off Valve: A Injection Pump, Fuel Filter and Shut-off Valve: B Injection Pump, Fuel Filter and Shut-off Valve: C |
| Specification | |
| Descriptions | Stop solenoid energized to run., Alt Stop solenoid energized to stop., Alt |
