Hose 844772

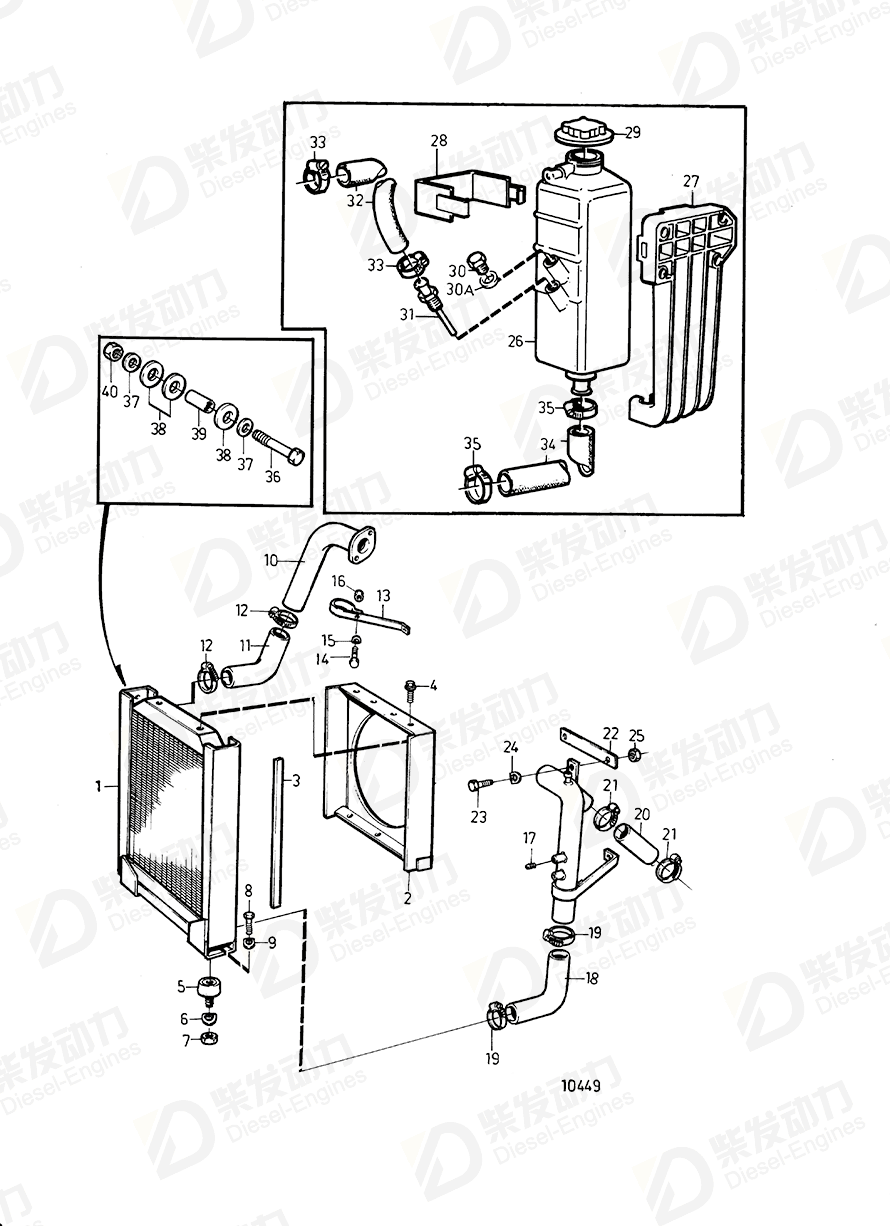

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 844488 | 1 | |
| 2 | Fan shroud | 844587 | 1 | |
| 3 | Sealing strip | 821707 | 2 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 4 | Hexagon screw | 945970 | 8 | |
| 5 | Rubber cushion | 833950 | 2 | Spec.868067 |
| 6 | Spring washer | 940280 | 2 | |
| 7 | Hexagon nut | 955850 | 2 | |
| 8 | Hexagon screw | 970943 | 2 | (955314) |
| 9 | Spring washer | 941908 | 2 | |
| 10 | Connecting pipe | 844853 | 1 | |
| 10 | Connecting pipe | 1545279 | 1 | For engine without Volvo Penta radiator., (1542392) |
| 11 | Hose | 844771 | 1 | |
| 12 | Hose clamp | 943479 | 2 | |
| 13 | Attaching plate | 844901 | 1 | |
| 14 | Hexagon screw | 955271 | 1 | |
| 15 | Spring washer | 941906 | 1 | |
| 16 | Hexagon nut | 955781 | 1 | |
| 17 | Connecting pipe | 844899 | 1 | |
| 18 | Hose | 844771 | 1 | |
| 19 | Hose clamp | 943479 | 2 | |
| 20 | Hose | 844772 | 1 | |
| 21 | Hose clamp | 943479 | 2 | |
| 22 | Attaching plate | 844900 | 1 | |
| 23 | Hexagon screw | 955294 | 1 | |
| 24 | Spring washer | 941907 | 1 | |
| 25 | Hexagon nut | 955782 | 1 | |
| 26 | Expansion tank | 844062 | 1 | |
| 27 | Bracket | 843260 | 1 | |
| 28 | Clamp | 843266 | 1 | |
| 29 | Pressure cap | 844624 | 1 | |
| 30 | Plug | 947660 | 1 | (836268) |
| 30 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 31 | Connecting pipe | 843247 | 1 | |
| 32 | Rubber hose | 943366 | 1 | L=600mm late type |
| 33 | Hose clamp | 994555 | 2 | |
| 34 | Hose | 952969 | 1 | (943368) L=600mm |
| 35 | Hose clamp | 943472 | 2 | |
| 36 | Hexagon screw | 940132 | 2 | |
| 37 | Washer | 418531 | 4 | |
| 38 | Rubber bushing | 403877 | 6 | |
| 39 | Spacer sleeve | 845028 | 2 | |
| 40 | Lock nut | 946036 | 2 | |
| 17A | Plug | 952077 | 2 | |
| 30A | Gasket | 969011 | 1 |
| Item | Part Name | Part No. |
| 20 | Hose 844772 | 844772 |
| Details | |
| Engine model | TD30A TD31ACE TD40A |
| Application | Radiator and Installation Components Radiator and Installation Components: A Radiator and Installation Components: B |
Related Products
Tags: Hose, Volvo Penta, 844772
