Hose 848407

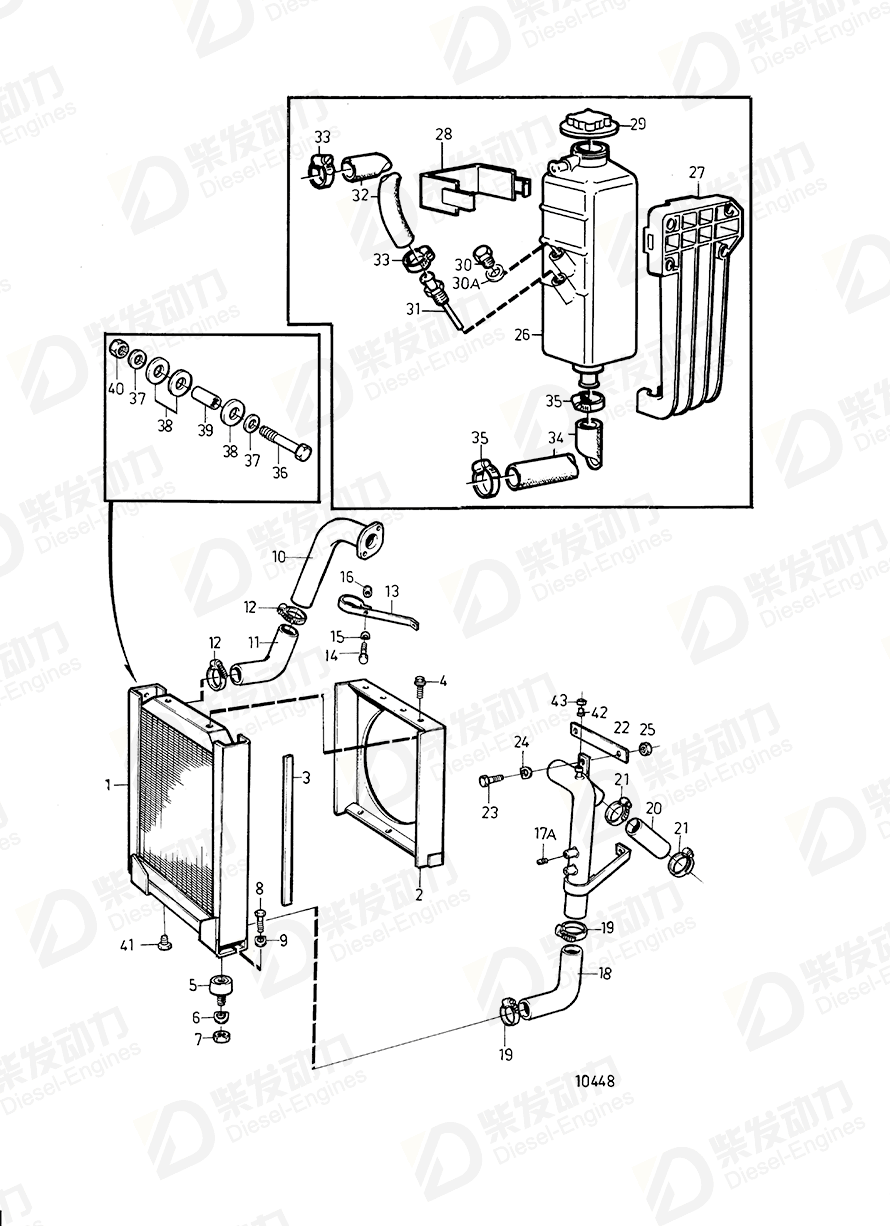

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 844488 | 1 | |
| 10 | Connecting pipe | 844853 | 1 | |
| 11 | Hose | 848407 | 1 | |
| 17 | Connecting pipe | 844899 | 1 | |
| 18 | Hose | 848407 | 1 | |
| 20 | Hose | 844772 | 1 | |
| 21 | Hose clamp | 943479 | 1 | |
| 22 | Attaching plate | 844900 | 1 | |
| 23 | Flange screw | 946440 | 1 | |
| 25 | Nut | 968862 | 1 | (945408) |
| 26 | Expansion tank | 844062 | 1 | |
| 27 | Bracket | 843260 | 1 | |
| 28 | Clamp | 843266 | 1 | |
| 29 | Pressure cap | 844624 | 1 | |
| 30 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 31 | Connecting pipe | 843247 | 1 | |
| 37 | Washer | 418531 | 4 | |
| 38 | Rubber bushing | 403877 | 6 | |
| 39 | Spacer sleeve | 845028 | 2 | |
| 41 | Plug | 947660 | 1 | (836268) |
| 42 | Cap | 842235 | 1 | |
| 43 | Hose clamp | 943471 | 1 | (951787) |
| 17A | Plug | 952077 | 2 | |
| 21A | Hose clamp | 943478 | 1 | 62 (951794) |
| 30A | Gasket | 969011 | 1 |
| Item | Part Name | Part No. |
| 18 | Hose 848407 | 848407 |
| Details | |
| Engine model | TD30A TD31ACE |
| Application | Radiator and Installation Components: A Radiator and Installation Components: B |
