Hose 848826

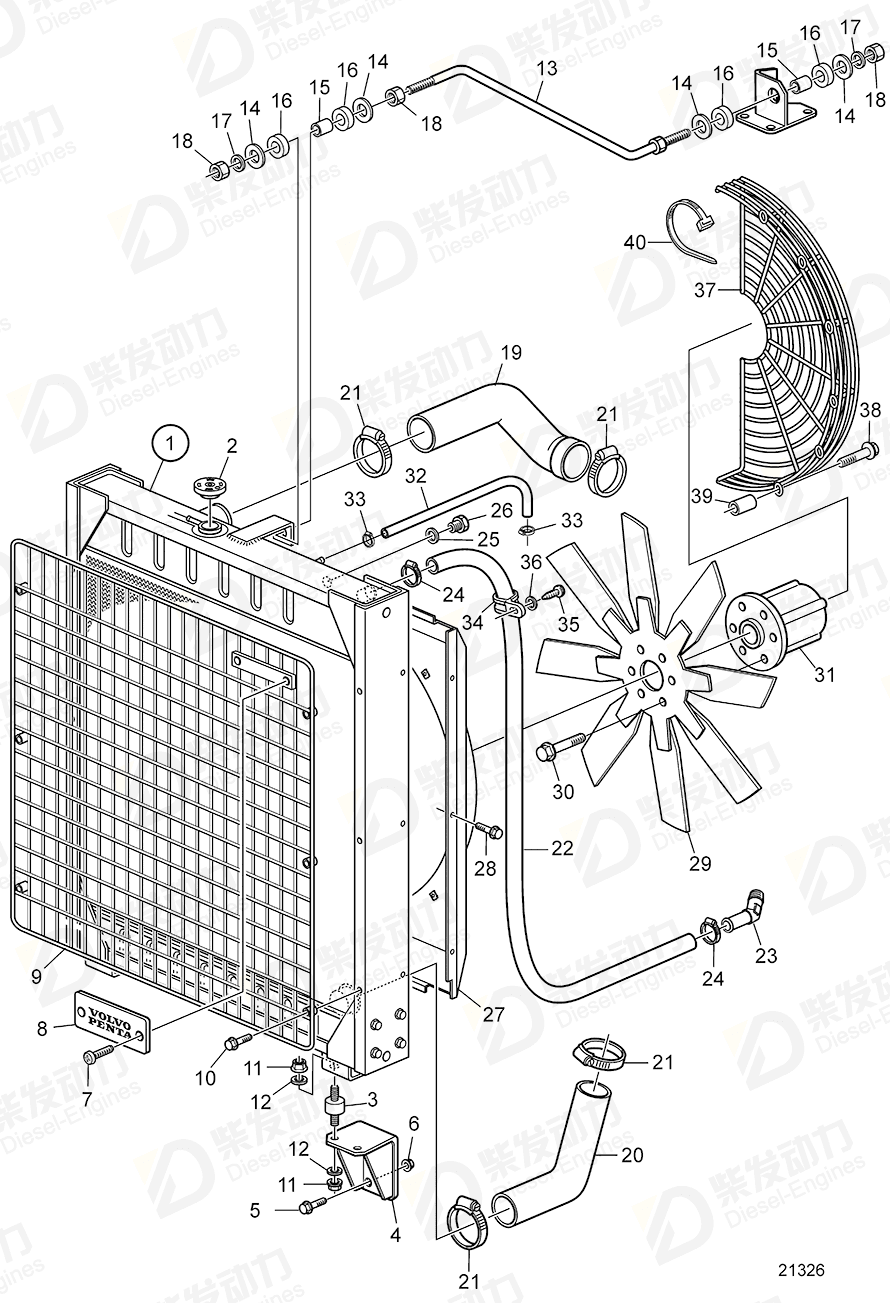

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 864893 | 1 | 1,25m², Repl by 3829278 |
| 1 | Radiator | 3829278 | 1 | |
| 2 | Pressure cap | 866095 | 1 | (350578) |
| 3 | Rubber cushion | 849170 | 2 | |
| 4 | Radiator bracket | 865786 | 2 | |
| 5 | Flange screw | 946817 | 4 | |
| 6 | Flange nut | 971096 | 4 | |
| 7 | Emblem | 846118 | 1 | |
| 8 | Screw | 941651 | 2 | |
| 9 | Radiator protector | 862959 | 1 | |
| 10 | Flange screw | 947760 | 6 | M8x40mm |
| 11 | Hexagon nut | 955850 | 4 | |
| 12 | Spring washer | 940280 | 4 | |
| 13 | Radiator stay | 848830 | 1 | |
| 14 | Washer | 191940 | 4 | |
| 15 | Spacer sleeve | 252202 | 2 | |
| 16 | Spring washer | 941912 | 4 | |
| 17 | Spring washer | 941912 | 2 | |
| 18 | Hexagon nut | 955793 | 3 | |
| 19 | Hose | 848826 | 1 | Radiator-thermostat housing. |
| 20 | Radiator hose | 848827 | 1 | Radiator-water pump. |
| 21 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 22 | Rubber hose | 944386 | 1 | |
| 23 | Elbow nipple | 942649 | 1 | |
| 24 | Hose clamp | 994560 | 2 | |
| 25 | Gasket | 11994 | 1 | |
| 26 | Plug | 947660 | 1 | (836268) |
| 27 | Fan shroud | 475820 | 1 | |
| 28 | Flange screw | 966807 | 10 | |
| 29 | Fan, suction type | 843868 | 1 | D=750mm |
| 29 | Fan, pusher type | 843869 | 1 | D=750mm |
| 30 | Flange screw | 946472 | 6 | |
| 31 | Fan hub | 865768 | 1 | |
| 31 | Fan hub | 1675852 | 1 | TWD1031VE |
| 32 | Rubber hose | 943366 | 1 | L=600mm late type |
| 33 | Hose clamp | 994556 | 2 | |
| 34 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 35 | Hexagon screw | 945970 | 1 | |
| 36 | Washer | 960138 | 1 | |
| 37 | Fan guard | 3825490 | 2 | |
| 38 | Flange screw | 973924 | 12 | |
| 39 | Spacer sleeve | 848694 | 12 | |
| 40 | Cable tie | 948211 | 8 |
| Item | Part Name | Part No. |
| 19 | Hose 848826 | 848826 |
| Details | |
| Engine model | TD120HP-86, TD121GP-87, TID121KP, TID121KP-87, TID121LP, TID121LP-87 TD1210G, TWD1210G TD121GG-86, TD121GG-87 TD121GGP-87 TD121GP-87 TID121KG TID121KGP TID121LG TID121LGP TWD1211G TWD1211P, TWD1211G TWD1230VE, TWD1231VE |
| Application | Radiator and Fan Radiator and Fan with Installation Components Radiator and Fan with Installation Components, Gen Pac, Alt Radiator and Fan with Installation Components, Gen Pac, Alt: A Radiator and Fan with Installation Components, Gen Pac, Alt: B Radiator and Fan with Installation Components, Power Pack Radiator and Fan with Installation Components: A Radiator and Fan with Installation Components: B Radiator and Fan, SN-2120211549 Radiator and Fan, SN-2120211549: A Radiator and Fan, SN-2120211549: B Radiator and Fan, SN2120211550-: B Radiator and Fan: C |
| Specification | |
| Descriptions | Radiator-thermostat housing. |
