Hose 865266

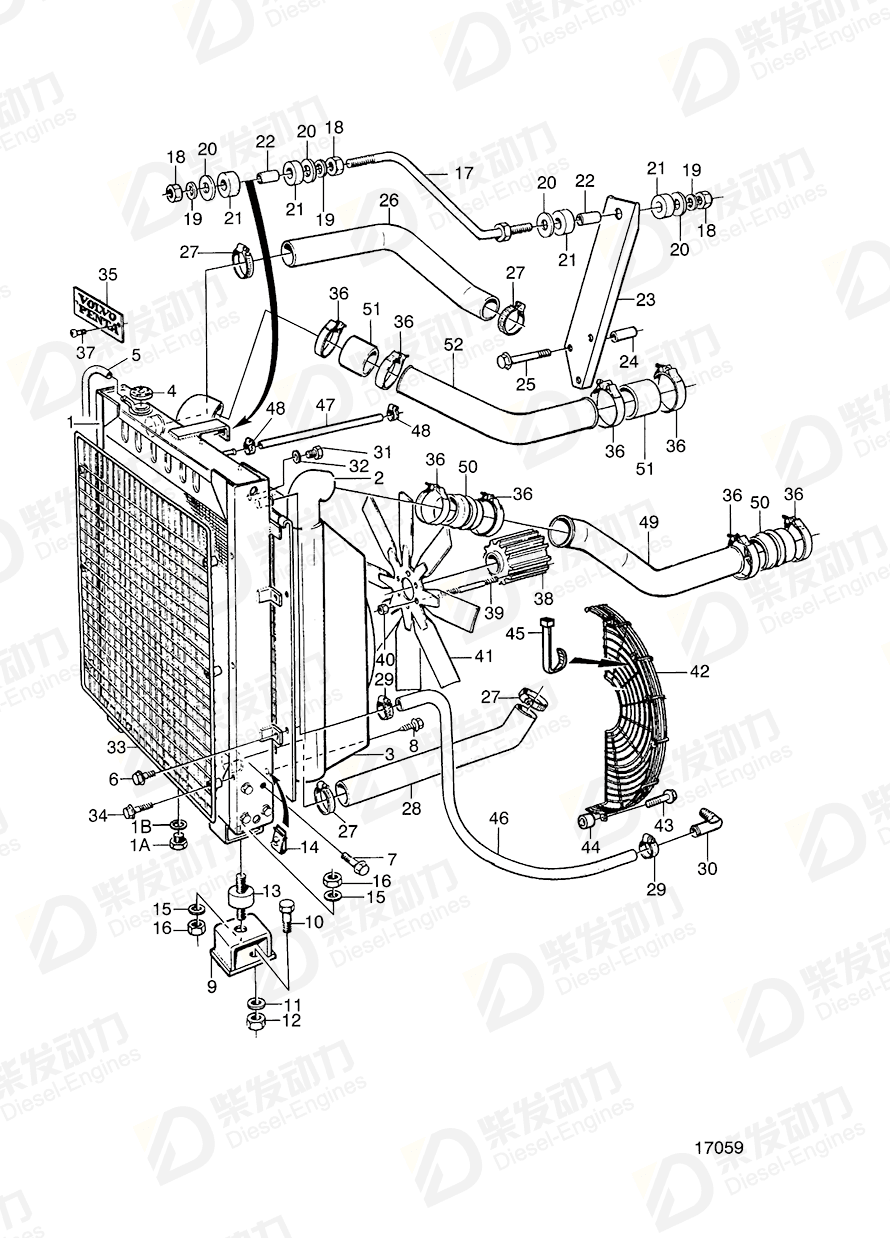

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 866089 | 1 | 1,10m²., Repl by 3829280 |
| 2 | Charge air cooler | 866090 | 1 | |
| 3 | Fan shroud | 3825747 | 1 | Late type |
| 4 | Pressure cap | 866095 | 1 | (350578) |
| 5 | Hose | 192618 | 1 | L=1400mm |
| 6 | Flange screw | 984734 | 4 | |
| 7 | Flange screw | 984752 | 8 | |
| 8 | Flange screw | 966862 | 8 | |
| 9 | Bracket | 3826264 | 2 | (865242) |
| 10 | Hexagon screw | 970947 | 4 | M10X25 |
| 11 | Spring washer | 941908 | 4 | |
| 12 | Hexagon nut | 971071 | 4 | |
| 13 | Rubber cushion | 849170 | 2 | |
| 15 | Spring washer | 940280 | 4 | |
| 16 | Hexagon nut | 955850 | 4 | |
| 17 | Radiator stay | 865207 | 1 | |
| 18 | Hexagon nut | 955793 | 3 | |
| 19 | Spring washer | 941912 | 3 | |
| 1A | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 1B | Gasket | 969011 | 1 | |
| 20 | Washer | 191940 | 4 | |
| 21 | Rubber bushing | 866857 | 4 | |
| 22 | Spacer sleeve | 252202 | 2 | |
| 23 | Bracket | 3826807 | 1 | |
| 24 | Spacer sleeve | 807257 | 3 | |
| 25 | Flange screw | 984743 | 3 | |
| 26 | Hose | 865265 | 1 | |
| 27 | Hose clamp | 961673 | 4 | |
| 28 | Hose | 865266 | 1 | |
| 29 | Hose clamp | 994560 | 2 | |
| 30 | Elbow nipple | 942649 | 1 | |
| 31 | Plug | 947660 | 1 | (836268) |
| 32 | Gasket | 11994 | 1 | |
| 33 | Radiator protector | 865208 | 1 | |
| 34 | Flange screw | 984738 | 6 | |
| 35 | Emblem | 846118 | 1 | |
| 36 | Hose clamp | 865575 | 8 | |
| 37 | Screw | 941651 | 2 | |
| 38 | Fan hub | 862495 | 1 | |
| 39 | Stud | 969199 | 6 | |
| 40 | Flange nut | 990941 | 6 | |
| 41 | Fan, pusher type | 848924 | 1 | |
| 41 | Fan, broad leaf | 3825035 | 1 | D=890mm |
| 42 | Fan protector | 865884 | 2 | Early type |
| 42 | Fan guard | 3825490 | 2 | |
| 43 | Flange screw | 984735 | 4 | |
| 44 | Spacer washer | 946048 | 4 | |
| 45 | Cable tie | 948211 | 8 | |
| 46 | Rubber hose | 944386 | 1 | |
| 47 | Hose | 13776 | 1 | L=450mm early type |
| 48 | Hose clamp | 994556 | 2 | |
| 49 | Charge air pipe | 865130 | 1 | |
| 50 | Charge air hose | 865127 | 2 | |
| 51 | Charge air hose | 865128 | 2 | |
| 52 | Charge air pipe | 865131 | 1 |
| Item | Part Name | Part No. |
| 28 | Hose 865266 | 865266 |
| Details | |
| Engine model | TAD1630G, TAD1630GE TAD1630P TAD1630V |
| Application | Radiator and Fan Radiator and Metal Fan Radiator and Plastic Fan |
Related Products
Tags: Hose, Volvo Penta, 865266
