Hose 865847

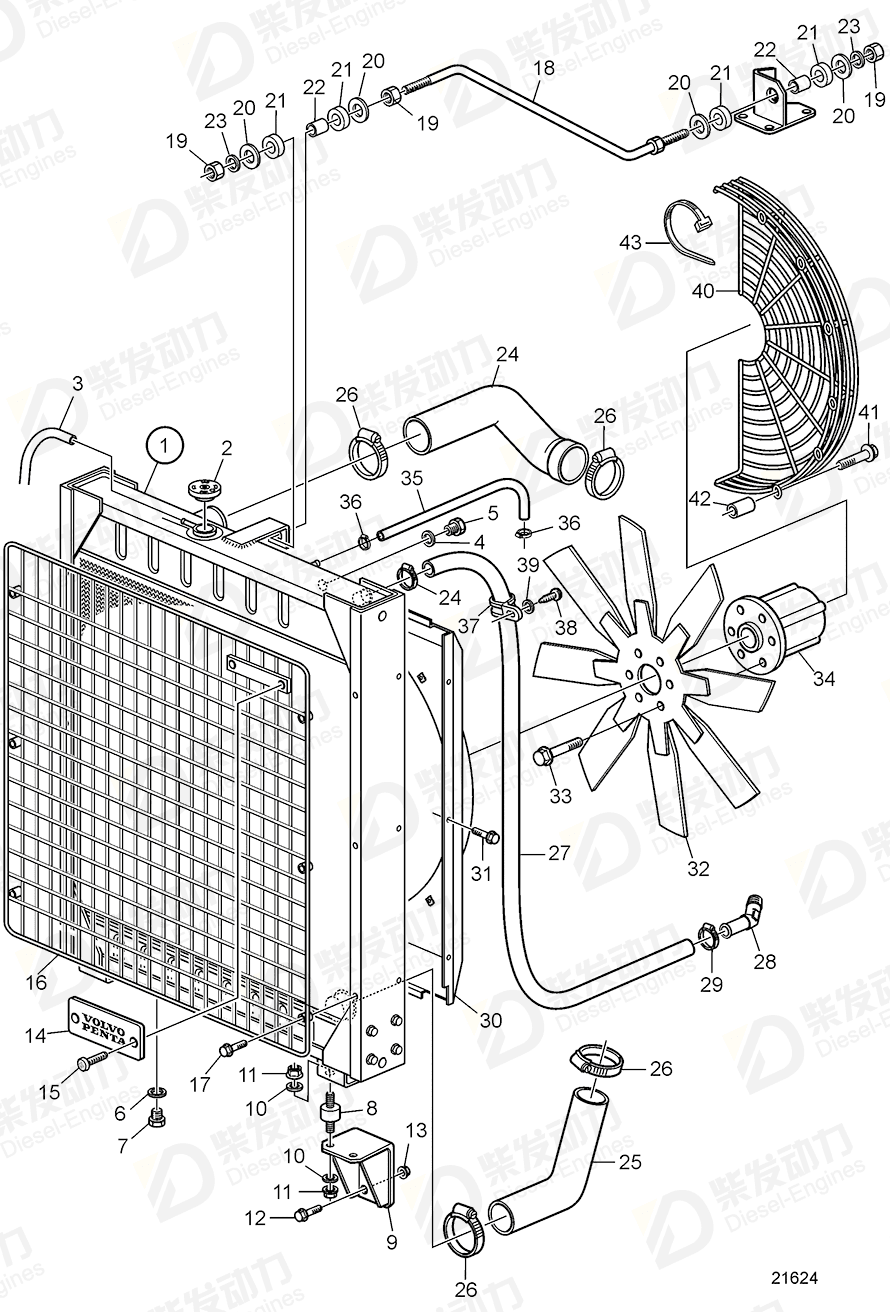

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 864892 | 1 | |
| 1 | Radiator | 3829277 | 1 | |
| 2 | Pressure cap | 866095 | 1 | (350578) |
| 3 | Hose | 192618 | 1 | L=1400mm |
| 4 | Gasket | 11994 | 1 | |
| 5 | Plug | 947660 | 1 | (836268) |
| 6 | Gasket | 969011 | 1 | |
| 7 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 8 | Rubber cushion | 849170 | 2 | |
| 9 | Radiator bracket | 865785 | 2 | |
| 10 | Spring washer | 940280 | 4 | |
| 11 | Hexagon nut | 955850 | 4 | |
| 12 | Flange screw | 946817 | 4 | |
| 13 | Flange nut | 971096 | 4 | |
| 14 | Emblem | 846118 | 1 | |
| 15 | Screw | 941651 | 2 | |
| 16 | Radiator protector | 862957 | 1 | |
| 17 | Flange screw | 947760 | 6 | M8x40mm |
| 18 | Radiator stay | 865892 | 1 | |
| 19 | Hexagon nut | 955793 | 3 | |
| 20 | Washer | 191940 | 4 | |
| 21 | Spring washer | 941912 | 4 | |
| 22 | Spacer sleeve | 252202 | 2 | |
| 23 | Spring washer | 941912 | 2 | |
| 24 | Hose | 865847 | 1 | Radiator-thermostat housing. |
| 25 | Radiator hose | 865846 | 1 | Radiator-water pump. |
| 26 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 27 | Rubber hose | 944386 | 1 | |
| 28 | Elbow nipple | 942649 | 1 | |
| 29 | Hose clamp | 994560 | 2 | |
| 30 | Fan shroud | 3825615 | 1 | (865792) |
| 31 | Flange screw | 966807 | 10 | |
| 32 | Fan, suction type | 843868 | 1 | D=750mm |
| 32 | Fan, pusher type | 843869 | 1 | D=750mm |
| 33 | Flange screw | 946472 | 6 | |
| 34 | Fan hub | 865768 | 1 | |
| 35 | Rubber hose | 943366 | 1 | L=600mm late type |
| 36 | Hose clamp | 994556 | 2 | |
| 37 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 38 | Hexagon screw | 945970 | 1 | |
| 39 | Washer | 960138 | 1 | |
| 40 | Fan protector | 865883 | 2 | SN-XXXXXXXXXX/277519 |
| 40 | Fan guard | 3825616 | 2 | SNXXXXXXXXXX/277520- |
| 41 | Flange screw | 965216 | 4 | |
| 42 | Spacer sleeve | 807257 | 4 | |
| 43 | Cable tie | 948211 | 8 |
| Item | Part Name | Part No. |
| 24 | Hose 865847 | 865847 |
| Details | |
| Engine model | TD1210G, TWD1210G TD121G-87 TD121GP-87, TWD1210P TWD1210V, TWD1211V |
| Application | Radiator and Fan, SN2120211550- Radiator and Fan, SN2120211550-: A Radiator and Fan: A Radiator and Fan: B |
| Specification | |
| Descriptions | Radiator-thermostat housing. |
