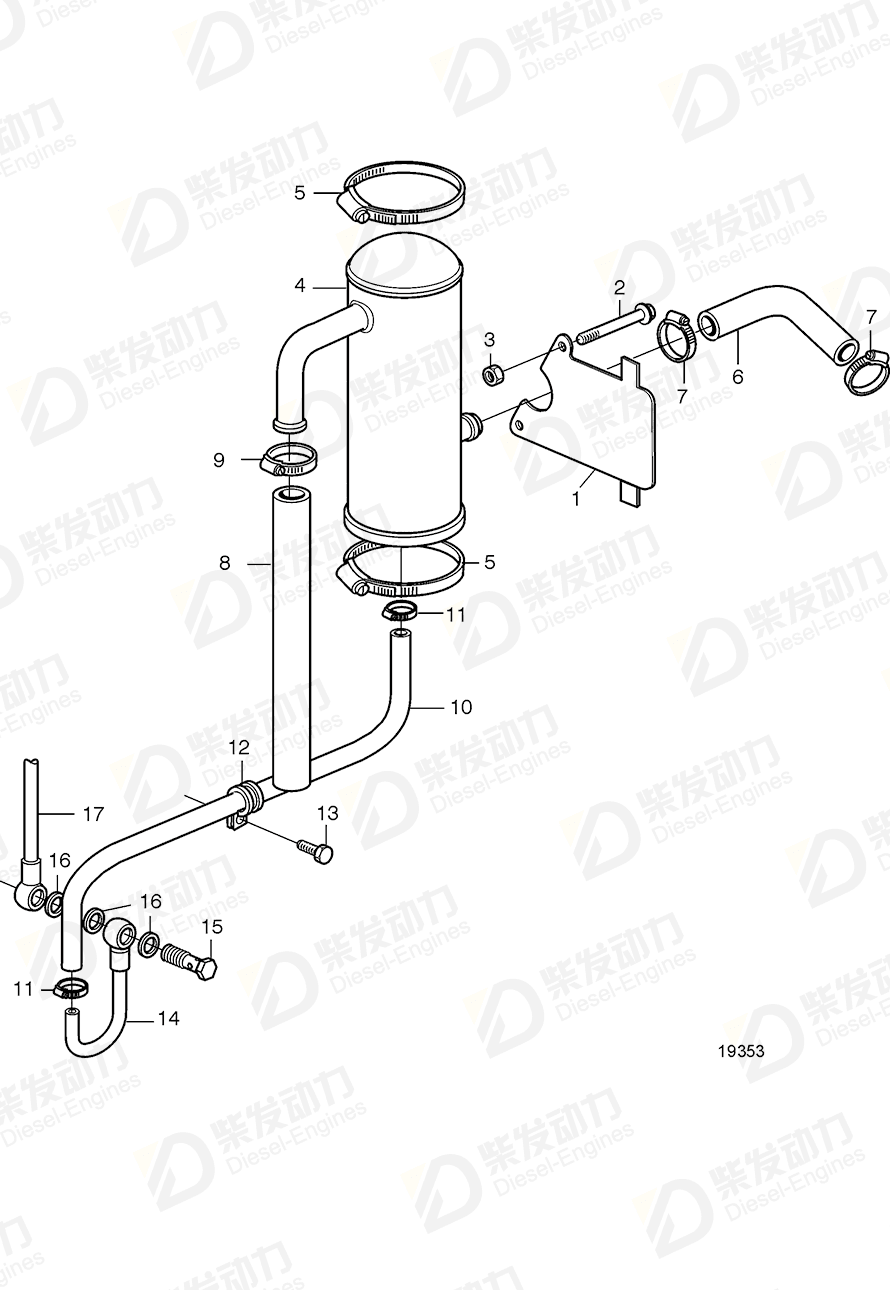

Hose 977316
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Bracket |
11032112 |
1 |
|
| 2 |
Flange screw |
965197 |
2 |
|
| 3 |
Flange nut |
971096 |
2 |
|
| 4 |
Oil trap |
11033878 |
1 |
|
| 5 |
Hose clamp |
853012 |
2 |
When emergency stop is mounted. |
| 6 |
Hose |
11032106 |
1 |
|
| 7 |
Hose clamp |
961669 |
2 |
|
| 9 |
Hose clamp |
943475 |
1 |
|
| 10 |
Hose |
977316 |
1 |
L=900mm |
| 11 |
Hose clamp |
943470 |
2 |
|
| 12 |
Clamp |
949747 |
1 |
|
| 13 |
Flange screw |
947107 |
1 |
|
| 14 |
Pipe |
11032097 |
1 |
|
| 15 |
Hollow screw |
11031984 |
1 |
|
| 16 |
Gasket |
969011 |
3 |
|
| 17 |
Oil return pipe |
1556254 |
1 |
|
| Item |
Part Name |
Part No. |
| 10 |
Hose 977316 |
977316 |
| Details |
| Engine model |
TD164KAE |
| Application |
Crankcase Ventilation |
| Specification |
| Descriptions |
L=900mm |
