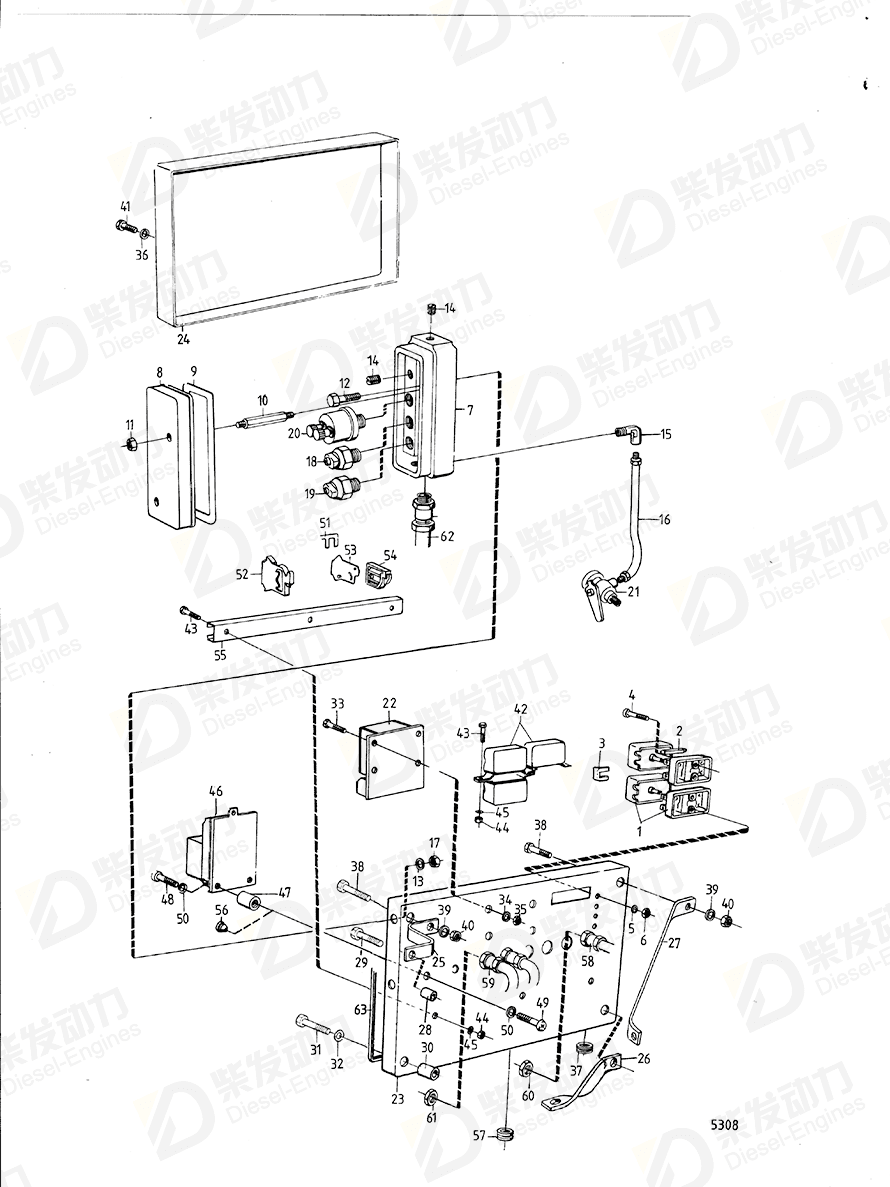

Hose assembly 334175
| No. | Part Name | Part Number | Qty | Description |
| 1 | Fuse box | 88578 | 2 | MO-12769/XXXXX,replaced by 841378., 24Vlate production. |
| 2 | Fuse | 942785 | 2 | MO-12769/XXXXX,replaced by 841378., 24Vlate production. |
| 2 | Fuse, blue | 943905 | 2 | Replaced by 1pc alternator 841989 and 1pc PULLby 829312., 25A |
| 3 | Bridge connector | 842390 | 2 | MO 12770/XXXXX-., Replaced by 2pcs 845838, 1pc 955129., 24Vlate production. |
| 4 | Cross recessed screw | 956076 | 4 | |
| 5 | Spring washer | 941905 | 4 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 6 | Hexagon nut | 955780 | 4 | |
| 7 | Intermediate section | 823486 | 1 | |
| 8 | Cover | 823487 | 1 | |
| 9 | Gasket | 823490 | 1 | |
| 10 | Spacer screw | 823488 | 2 | |
| 11 | Lock nut | 950363 | 2 | |
| 12 | Hexagon screw | 940135 | 3 | |
| 13 | Spring washer | 941907 | 5 | |
| 14 | Plug | 16325 | 2 | |
| 15 | Elbow nipple | 180110 | 1 | MO 26456-. |
| 16 | Hose assembly | 334175 | 1 | |
| 17 | Hexagon nut | 955826 | 3 | |
| 18 | Contact | 843812 | 1 | |
| 19 | Contact | 843813 | 1 | |
| 20 | Sensor | 881432 | 1 | |
| 21 | Cock | 836273 | 1 | |
| 22 | Runaway monitor | 837718 | 1 | |
| 23 | Clutch housing | 824411 | 1 | |
| 24 | Cover | 836366 | 1 | |
| 25 | Attaching plate | 837421 | 1 | |
| 26 | Attaching plate | 837422 | 1 | |
| 27 | Attaching plate | 837423 | 1 | |
| 28 | Spacer sleeve | 821540 | 2 | Replaced by 1pc 1578938., L=22mm |
| 29 | Hexagon screw | 955531 | 2 | Late type |
| 30 | Spacer sleeve | 820508 | 1 | L=28mm |
| 31 | Hexagon screw | 940161 | 1 | For engine with 40° angle of inclination, L=45mm |
| 32 | Spring washer | 941907 | 1 | |
| 33 | Cross recessed screw | 956061 | 4 | D70B spec. 867055, 867060. TD70B spec. 867066. |
| 34 | Spring washer | 941904 | 4 | |
| 35 | Hexagon nut | 955779 | 4 | |
| 36 | Spring washer | 941906 | 2 | |
| 37 | Rubber button | 662620 | 2 | Alt |
| 38 | Hexagon screw | 940133 | 3 | |
| 39 | Spring washer | 942336 | 3 | |
| 41 | Hexagon screw | 955284 | 2 | |
| 42 | Relay | 837878 | 3 | (239883) |
| 43 | Cross recessed screw | 956076 | 5 | |
| 44 | Hexagon nut | 955780 | 5 | |
| 45 | Spring washer | 941905 | 5 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 46 | Stop dog | 845972 | 1 | (823480) |
| 47 | Vibration damper | 899709 | 3 | |
| 48 | Cross recessed screw | 956091 | 3 | |
| 49 | Cross recessed screw | 956092 | 3 | (241793) |
| 50 | Spring washer | 941906 | 6 | |
| 51 | Current bar | 836177 | 3 | |
| 52 | Clamp | 824159 | 40 | |
| 53 | End plate | 824172 | 2 | |
| 54 | Bracket | 824173 | 2 | |
| 55 | Bracket | 824161 | 1 | |
| 56 | Rubber button | 655545 | 3 | |
| 57 | Plug | 94081 | 6 | |
| 58 | Grommet | 881192 | 6 | |
| 59 | Grommet | 881193 | 2 | Replaced by 1 alterator 841765 and 1 cable unit 841822. |
| 60 | Nut | 880243 | 5 | |
| 61 | Nut | 880755 | 2 | Replaced by 1 alterator 841765 and 1 cable unit 841822. |
| 63 | Sealing strip | 842730 | 1 |
| Item | Part Name | Part No. |
| 16 | Hose assembly 334175 | 334175 |
| Details | |
| Engine model | D70B TWD1231VE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Connecting Box and Installation Components Contacts and Sensors |
