Hose bend 3883208

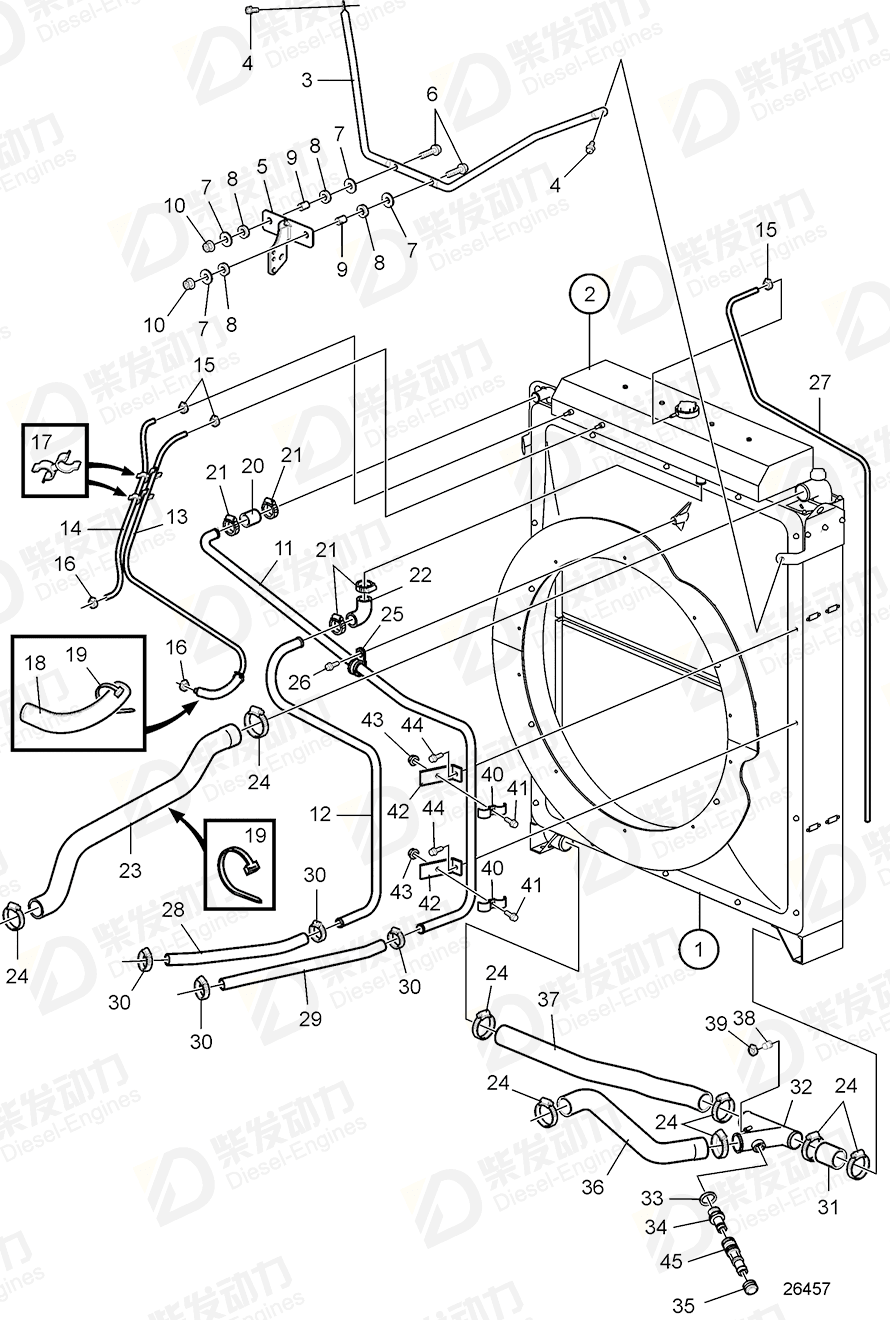

| No. | Part Name | Part Number | Qty | Description |
| 3 | Stay | 3807303 | 1 | |
| 4 | Flange screw | 984752 | 2 | |
| 5 | Bracket | 3594409 | 1 | |
| 6 | Flange screw | 968302 | 2 | |
| 7 | Washer | 948556 | 4 | |
| 8 | Rubber bushing | 866857 | 4 | |
| 9 | Spacer sleeve | 252202 | 2 | |
| 10 | Flange nut | 966818 | 2 | Alt |
| 11 | Coolant pipe | 3883179 | 1 | |
| 12 | Coolant pipe | 3883181 | 1 | |
| 13 | Rubber hose | 943367 | 1 | L=1700mm |
| 14 | Rubber hose | 943366 | 1 | L=600mm late type |
| 15 | Hose clamp | 993979 | 3 | |
| 16 | Hose clamp | 993978 | 2 | |
| 17 | Retainer | 3121512 | 1 | |
| 18 | Tube | 20711293 | 1 | |
| 19 | Cable tie | 948210 | 1 | (827353) |
| 20 | Hose | 3594076 | 1 | |
| 21 | Hose clamp | 993964 | 4 | |
| 22 | Hose bend | 3883208 | 1 | |
| 23 | Hose | 40005061 | 1 | |
| 24 | Hose clamp | 943481 | 8 | (951798) |
| 25 | Clamp | 952640 | 1 | |
| 26 | Flange screw | 984736 | 1 | |
| 27 | Hose | 192618 | 1 | L=1400mm |
| 28 | Hose | 952973 | 1 | L = 110 MM |
| 29 | Hose | 952973 | 1 | L = 110 MM |
| 30 | Hose clamp | 993963 | 4 | |
| 31 | Hose | 3885228 | 1 | |
| 32 | Hose connection | 3885230 | 1 | |
| 33 | Gasket | 957185 | 1 | |
| 34 | Nipple | 1676622 | 1 | |
| 35 | Protecting cap | 476279 | 1 | |
| 36 | Hose | 3589218 | 1 | |
| 37 | Hose | 3885229 | 1 | |
| 38 | Cap | 842235 | 1 | |
| 39 | Hose clamp | 943471 | 1 | (951787) |
| 40 | Clamp | 3841802 | 2 | |
| 41 | Flange screw | 984738 | 2 | |
| 42 | Bracket | 3883206 | 2 | |
| 43 | Flange nut | 990940 | 2 | |
| 44 | Flange screw | 984732 | 2 | |
| 45 | Draining nipple, kit | 3594405 | 1 |
| Item | Part Name | Part No. |
| 22 | Hose bend 3883208 | 3883208 |
| Details | |
| Engine model | TWD1643GE, TWD1663GE |
| Application | Expansion Tank with Connection Components SN-2016076784 Radiator with Connecting Components. SN-2016064436 Radiator with Connecting Components. SN2016064437-2016076784 |
