Hose clamp 1544732

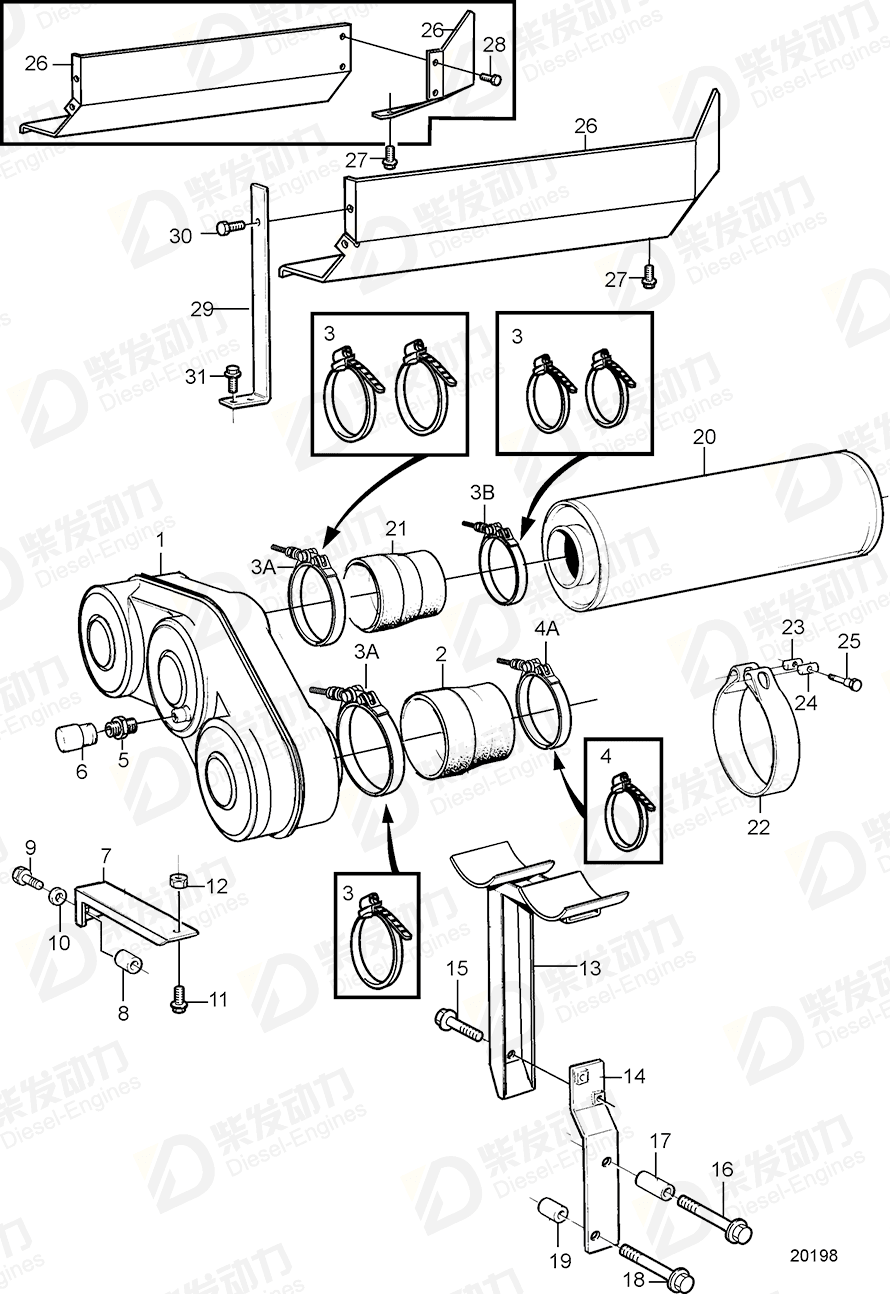

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connecting pipe | 3825971 | 1 | |
| 2 | Rubber fitting | 847685 | 1 | |
| 2 | Compression fitting | 866136 | 1 | |
| 5 | Nipple | 191095 | 1 | |
| 6 | Pressure drop indica | 842037 | 1 | |
| 7 | Bracket | 862754 | 1 | |
| 8 | Spacer sleeve | 852660 | 2 | |
| 9 | Hexagon screw | 940161 | 2 | For engine with 40° angle of inclination, L=45mm |
| 10 | Washer | 955894 | 2 | |
| 11 | Flange screw | 946173 | 1 | |
| 12 | Flange lock nut | 948645 | 1 | |
| 13 | Bracket | 862694 | 1 | |
| 14 | Bracket | 862693 | 1 | |
| 15 | Flange screw | 945444 | 2 | |
| 16 | Flange screw | 965181 | 1 | |
| 17 | Spacer sleeve | 826652 | 1 | |
| 18 | Flange screw | 948217 | 1 | |
| 19 | Spacer sleeve | 862713 | 1 | |
| 20 | Air filter | 3825778 | 2 | |
| 21 | Rubber fitting | 836334 | 2 | For 804961., D=105mm-113mm |
| 22 | Tensioning band | 821028 | 2 | |
| 23 | Clevis pin, threaded | 31404 | 2 | |
| 24 | Pin | 31405 | 2 | |
| 25 | Hexagon screw | 31406 | 2 | |
| 26 | Radiation shield | 3829338 | 1 | |
| 27 | Flange screw | 944926 | 2 | |
| 28 | Flange screw | 967949 | 2 | |
| 29 | Bracket | 862947 | 1 | |
| 30 | Flange screw | 967949 | 2 | |
| 31 | Flange screw | 965183 | 2 | |
| 3A | Hose clamp | 1544734 | 3 | |
| 3B | Hose clamp | 1544733 | 2 | |
| 4A | Hose clamp | 1544732 | 1 |
| Item | Part Name | Part No. |
| 4A | Hose clamp 1544732 | 1544732 |
| Details | |
| Engine model | TD1210G TD121G-87 TD121GP-87, TD1210G TID162AG, TID162AGP, TID162AP, TID162APB TWD1210G, TWD1211G TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V TWD1620G, TWD1630G TWD1630P TWD1630V |
| Application | Air Filter Air Filter, Side Installation |
Related Products
Tags: Hose clamp, Volvo Penta, 1544732
